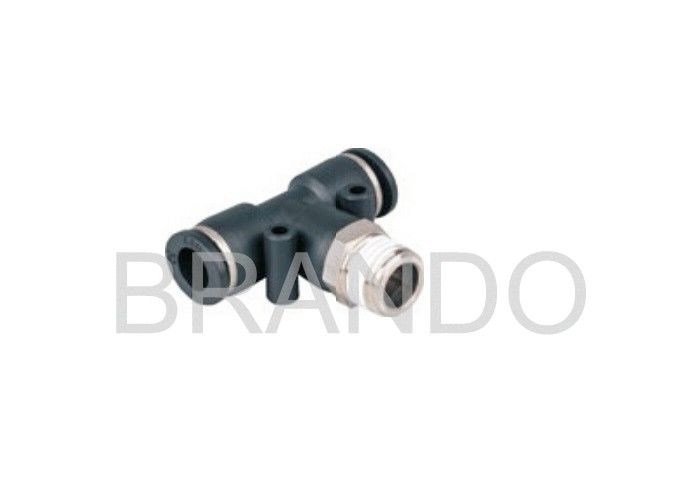

T Style Compressed Air Pneumatic Hose Fittings Male Branch Tee Type

T Style Compressed Air Pneumatic Hose Fittings Male Branch Tee Type

    • T Style Compressed Air Pneumatic Hose Fittings Male Branch Tee Type
    • T Style Compressed Air Pneumatic Hose Fittings Male Branch Tee Type
    • T Style Compressed Air Pneumatic Hose Fittings Male Branch Tee Type
  • T Style Compressed Air Pneumatic Hose Fittings Male Branch Tee Type

    Product Details:

    Place of Origin: Ningbo, China
    Brand Name: BRANDO
    Certification: CE, ISO
    Model Number: PT

    Payment & Shipping Terms:

    Minimum Order Quantity: 10pcs
    Price: negotiation
    Packaging Details: PVC bag, then inner box, then carton, then pallet
    Delivery Time: One week after payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 10000000pcs per month
    Contact Now
    Detailed Product Description
    Part Name: Pneumatic Air Fast Fitting Shape: T Adapter
    Material: Plastic And Brass Packaging: PVC Bag + Inner Box + Carton + Pallet
    Quality Guarantee: 1 Year OEM: Yes, Can Be Customized



    T Style Compressed Air Pneumatic Hose Fittings Male Branch Tee Type





    Advantages to choose our fast fitting:

    1. ISO9001: 2000 and CE certificated.
    2. OEM available.
    3. More than ten years experience of hose fitting / fast fitting / connector manufacturing
    4.100% test for air pressure and inspection for product appearance before shipment.
    5. Long lifespan, competitive price.
    6. Good payment term.
    7. Fast delivery.
    8.Thread Standard: BSPP, BSPT, NPT, METRIC etc. Our products are exported to more than 30 countries in the whole world.
    9. Our products are showed at international fair, such as Germany, Italy, America, Brazil, Dubai, Russia, Shanghai China fair etc each year.
    10. Location advantage: Nearby Ningbo port, the second largest port in China, convenient transportation and low cost, and close to Shanghai, convenient for customers to visit our factory.



    Main structure and material description of push in type hose fitting:

    Body POM, or other plastic
    Sealing ring NBR, or customized as customer request
    Bush ZINC ALLOY
    Junk ring POM
    Reed Stainless Steel
    Press-button POM



    Main technical parameter:

    Material Plastic/Brass
    Connection thread type BSP
    Connection thread type BSPP
    Connection thread type Metric thread
    Connection thread type NPT
    Working pressure 0--0.8MPa
    Connecting tube material PA
    Connecting tube material PU
    Connecting tube diameter OD3, 4, 6, 8, 10, 12, 16
    Medium Compressed air
    Working temperature 5-6℃

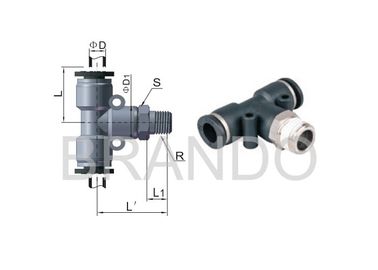

    Detailed dimensions description for you choose, we also can produce as per your drawing or sample:

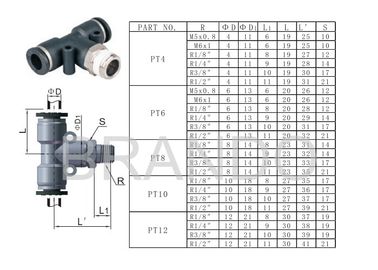

    T Style Compressed Air Pneumatic Hose Fittings Male Branch Tee Type

    PART NO. R φD φD1 L1 L L' S
    PT4 M5X0.8 4 11 6 19 25 10
    PT4 R6X1 4 11 6 19 25 10
    PT4 R1/8" 4 11 8 19 27 12
    PT4 R1/4" 4 11 9 19 28 14
    PT4 R3/8" 4 11 10 19 30 17
    PT4 R1/2" 4 11 11 19 31 21
    PT6 M5X0.8 6 13 6 20 26 12
    PT6 M6X1 6 13 6 20 26 12
    PT6 R1/8" 6 13 8 20 28 12
    PT6 R1/4" 6 13 8 20 28 12
    PT6 R3/8" 6 13 10 20 31 17
    PT6 R1/2" 6 13 11 20 32 21
    PT8 R1/8" 8 14 8 23 31 14
    PT8 R1/4" 8 14 9 23 32 14
    PT8 R3/8" 8 14 10 23 33 17
    PT8 R1/2" 8 14 11 23 35 21
    PT10 R1/8" 10 18 8 27 35 17
    PT10 R1/4" 10 18 9 27 36 17
    PT10 R3/8" 10 18 11 27 39 21
    PT10 R1/2" 10 18 11 27 39 21
    PT12 R1/8" 12 21 8 30 37 19
    PT12 R1/4" 12 21 9 30 38 19
    PT12 R3/8" 12 21 10 30 39 19
    PT12 R1/2" 12 21 11 30 41 21


    More details for you know us more:



    Q1: Where is your factory located?
    A1: Our factory is located in Ningbo. Nearby Ningbo port, the second largest port in China, convenient transportation and low cost, and close to Shanghai



    Q2: Is availabe to get sample, and how can I get some samples?
    A2: We are honored to offer samples to you when the prices are confirmed. Samples are free, however, the freight cost should be collected by customer. If sample quantity is more than our regular one, we will extra collect sample cost.



    Q3: What is your payment term?
    A3: 30% TT in advance, the balance payment 70% against copy of b/l.



    Q4: What’s your delivery time?
    A4: Normally, we keep stocks, if to produce, normally around 2 weeks. If you are in urget to get, we will speed up to satisfy you as much as we can.



    Q5: How does your factory do regarding quality control?
    A5: We control strictly in every step: choosing best material for our products, such as HP59-1 for our brass fitting, Automatic CNC manufacturing, and 100% test for air pressure and inspection for product appearance.



    Q6: Have you exported to other countries?

    A6: Yes, we have about 10 years experience of exporting to abroad, we have customer in America, USA, Europe, Mid East and so on. We have experience to pack goods well to avoid any mistake on sea shipment.





    Welcome your any question, we will response at once.
