| Place of Origin: | Ningbo, China |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | DIN43650APWMG |
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Box, Carton, Pallet |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T, Paypal, Western Union |
| Supply Ability: | 100000pcs per month |
| Product Name: | Connector | DIN43650 Type: | DIN43650A |
|---|---|---|---|
| Contact Distance: | 18mm | Pole Number: | 2P+E |
| Protection Class: | IP65 | Working Voltage: | AC, DC |
| Power Save: | Yes | ||
| High Light: | Power Save DIN43650A Connector,Power Save Solenoid Coil Connector,Power Save Solenoid Valve Connector |
||

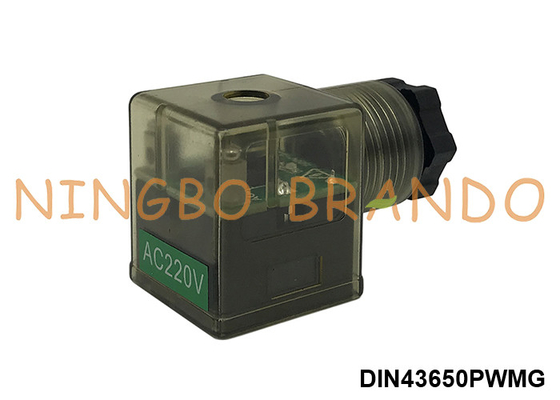

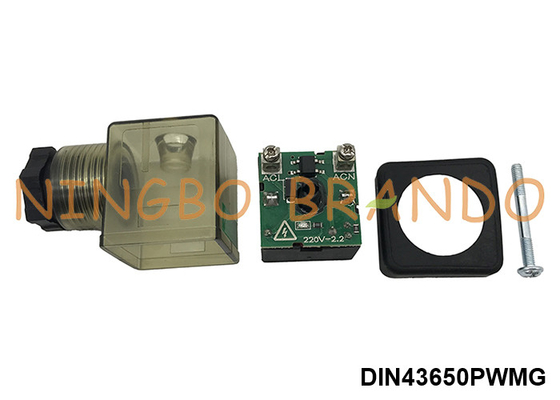

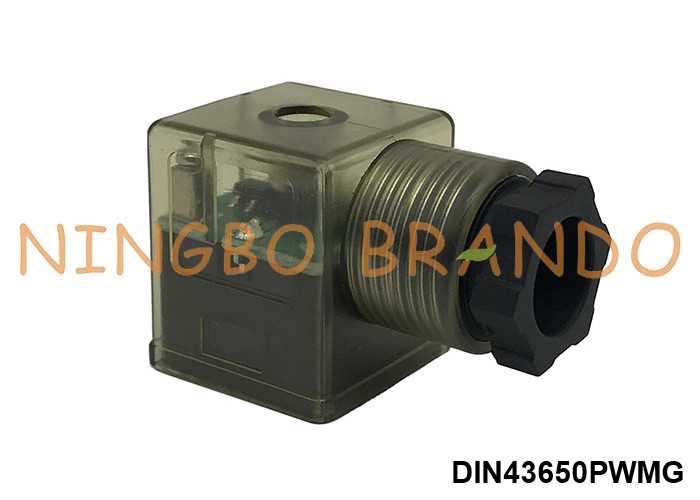

PG11 2P+E DIN43650A Solenoid Valve Connector With Led Light IP65 AC DC
DIN43650 connectors are popularly used in pneumatic, hydraulic or electromagnetic devices, including solenoid valves. Other applications include, for example, pressure transducers, proximity switches, level sensors, limit switches and low energy motors.
Features:
1. Wide range of DIN43650 industry standard form A, B, C types, special on request
2. Protection class: IP65, IP67
3. Multiple connector circuits specifications for optional, LED; LED/VDR; Rectifier
4. A variety shell color: black, brown and transparent
Technical Data:
|
DIN43650 Type
|
DIN43650A
|
|
Contact Distance
|
18mm
|
|
Pole Number
|
2 Poles + Ground
|
|
Current Rating
|
10A
|
|
Screw
|
M3x30mm
|
|
Max Conductor Size
|
3x1.5mm²
|
|
Protection Class
|
IP65
|
|
Working Voltage
|
AC, DC
|
|
Power Save
|
Yes
|
Main Dimension:
Our Production:
More Connectors:
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
Contact Person: Echo
Tel: +8613454729544
