| Place of Origin: | Ningbo, China |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | MVSC-220-4E1 |
| Minimum Order Quantity: | 20pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plastic bag, Box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | T/T, PayPal, Western Union |
| Supply Ability: | 50000pcs per month |
| Product Name: | Pneumatic Solenoid Valve | Port Size: | In=Out=1/4'', Exhaust=1/8'' |
|---|---|---|---|
| Thread Type: | G (Standard), NPT, RC (Optional) | Medium: | Air |
| Valve Type: | 5 Way 2 Position | Operating Pressure: | 0.15 To 0.8 MPa |
| Voltage: | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC | ||
| High Light: | MINDMAN Pneumatic Solenoid Valve MVSC-220-4E1,Pneumatic Solenoid Valve 5/2 Way,MINDMAN MVSC-220-4E1 |
||

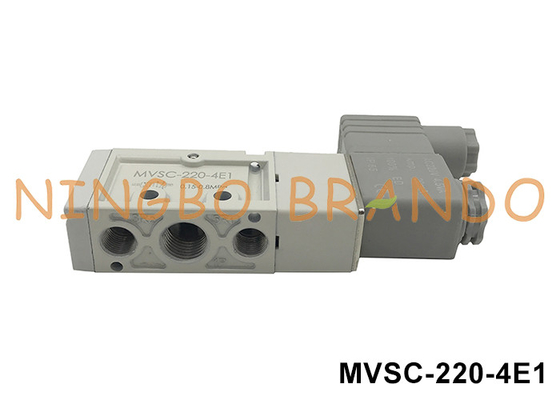

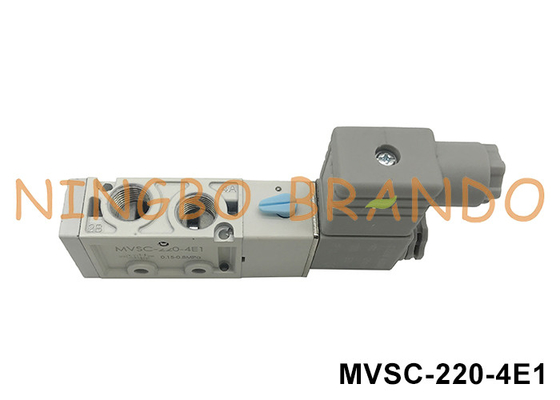

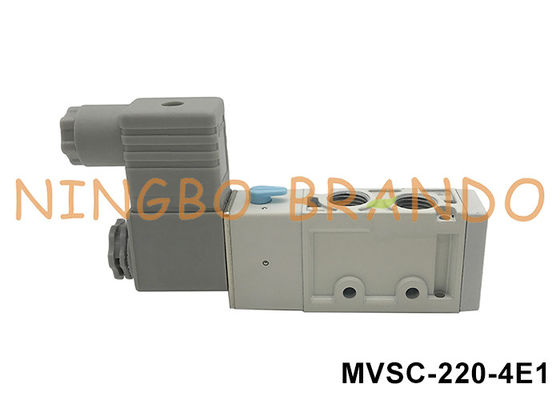

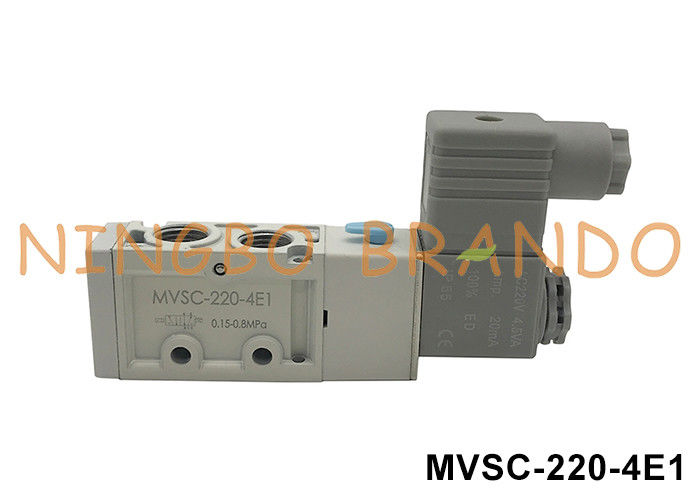

MVSC-220-4E1 MINDMAN Type Pneumatic Solenoid Valve 5/2 Way 220VAC 24VDC
This pneumatic solenoid valve can replace MINDMAN MVSC-220-4E1, 5 way 2 position, 1/4'' inlet and outlet size, 1/8'' exhaust size, 0.15 to 0.8 MPa working pressure, various voltages for your choice, such as 12VDC, 24VDC, 24VAC, 110VAC and 220VAC, etc, widely used in pneumatic systems.
Order Code:
Technical Data:
|
Model No
|
MVSC-220-3E1
|
MVSC-220-3E2
|
MVSC-220-4E1
|
MVSC-220-4E2
|
MVSC-220-4E2 (C.P.R) |
|
Port Size
|
In=Out=Exhaust=1/4''
|
In=Out=1/4'', Exhaust=1/8''
|
|||
|
Valve Type
|
3/2 way
|
5/2 way
|
5/3 way
|
||
|
Effective
Orifice
|
18mm²
|
16mm²
|
|||
|
Working
Pressure
|
0.15 to 0.8 MPa
|
||||
|
Proof Pressure
|
1 MPa
|
||||
|
Fluid
|
Air
|
||||
|
Temperature
|
-5 to +50℃
|
||||
|
Voltage
|
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
|
||||
Main Dimension:
Our Production:
Related Products:
|
|
|
|
|
| Pneumatic Fitting | Pneumatic Silencer | Pneumatic FRL Unit | Pneumatic Cylinder | Pneumatic Tube |
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
Contact Person: Echo
Tel: +8613454729544
