| Place of Origin: | Ningbo, China |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | RCA102MM |
| Minimum Order Quantity: | 2pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | T/T, PayPal, Western Union |
| Supply Ability: | 5000pcs per month |
| Product Name: | Pulse Valve | Structure: | Embedded |
|---|---|---|---|
| Remote Pilot Size: | 1/4'' | Port Size: | 4'' |
| Body Material: | Aluminum (diecast) | Diaphragm Material: | NBR |
| Working Temperature: | -5 To +80℃ | Working Pressure Range: | 5 To 125 Psi |
| High Light: | Pulse Valve RCA102MM,Remote Pilot Pulse Valve,Pulse Valve For Dust Collector |
||

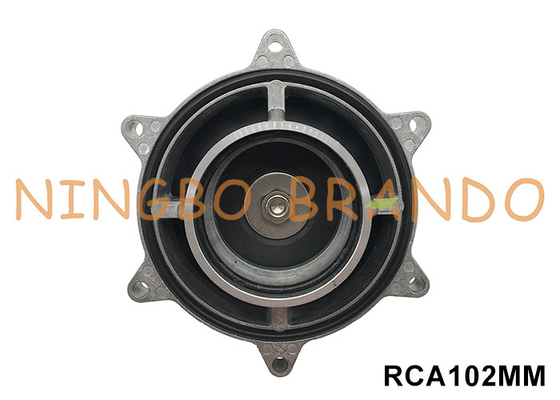

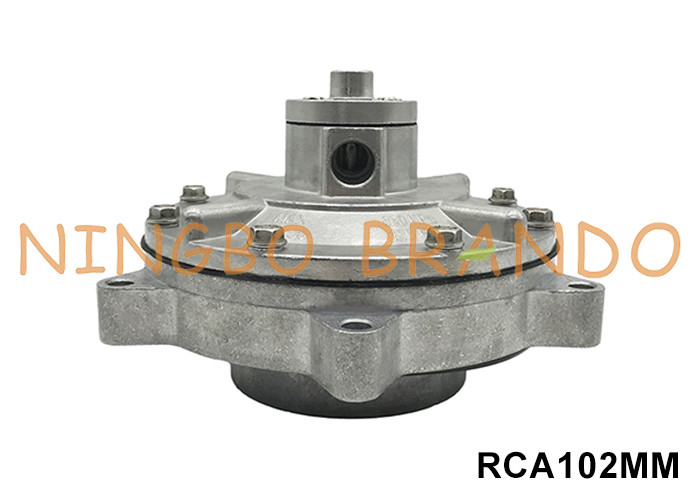

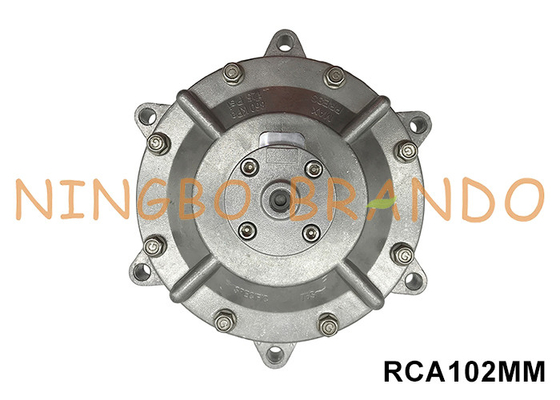

RCA102MM 4'' Goyen Type Remote Pilot Pulse Valve For Dust Collector
Pulse Jet Valve, also called pulse diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the pulse controller. Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. They are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.
Different designs of pulse jet valves:
1. Right Angle Type
2. Embedded Type
3. Fixed Nut Type
4. Straight Through Type
5. Flanged Type
RCA102MM Dimension:
Technical Data:
|
Integral Pilot
Model No
|
CA25MM
|
CA40MM
|
CA50MM
|
CA62MM
|
CA76MM
|
CA89MM
|
CA102MM
|
|
Remote Pilot
Model No
|
RCA25MM
|
RCA40MM
|
RCA50MM
|
RCA62MM
|
RCA76MM
|
RCA89MM
|
RCA102MM
|
|
Pilot Size
|
1/8'', 1/4''
|
||||||
|
Port Size
|
1''
|
1 1/2''
|
2''
|
2 1/2''
|
3''
|
3 1/2''
|
4''
|
|
Orifice Size
|
25mm
|
40mm
|
50mm
|
62mm
|
76mm
|
89mm
|
102mm
|
|
Body Material
|
Aluminum (diecast)
|
||||||
|
Diaphragm Material
|
NBR (standard) FKM (optional)
|
||||||
|
Working Pressure
|
5 to 125 psi
|
||||||
|
Voltage
|
24VDC, 24VAC, 110VAC, 220VAC
|
||||||
Our Production:
