Name: GC Type 2 Way NC Solenoid Valve Armature With Plunger Tube And Iron Core
Brand: BRANDO
SKU: BAPC2130344103
Rating: 4.6 (117 reviews)

Home Products Solenoid Valve Armature

GC Type 2 Way NC Solenoid Valve Armature With Plunger Tube And Iron Core

Product Details:

Place of Origin:	Ningbo, China
Brand Name:	BRANDO
Certification:	CE, ISO
Model Number:	BAPC2130344103

Payment & Shipping Terms:

Minimum Order Quantity:	1000sets
Price:	Negotiation
Packaging Details:	Box, Carton, Pallet
Delivery Time:	30 working days
Payment Terms:	T/T, Paypal, Western Union
Supply Ability:	100000sets per month

Contact Now

Detailed Product Description

Product Name:

Solenoid Valve Armature

Guide Tube Material:

Stainless Steel 304

Seal Material:

NBR (Standard), EPDM Or FKM (Can Be Customized)

Function:

2 Way Normally Closed

High Light:

GC Solenoid Valve Armature

GC Solenoid Valve Plunger Tube

GC Solenoid Valve Core Tube

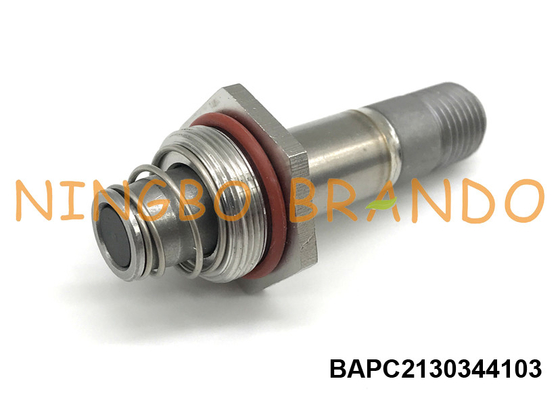

GC Type 2 Way NC Solenoid Valve Armature With Plunger Tube And Iron Core

This 2 way normally closed armature is popularly used in GC solenoid valves; the guide tube is stainlesss steel 304; the standard seals used are made of NBR, EPDM or FKM are available on request. This expands the range of applications to include a variety of media for lower and higher temperature ranges. The armature assembly is the pressure-tight internal part of a solenoid valve. The selection of the sealing material (elastomer) is always based on the operating and ambient conditions of the application.

Technical Data:

	BRANDO Model	BAPC2130344103
	Guide Tube Material	SS304
	Seal Material	NBR (standard) EPDM, FKM (available)
	Function	2 Way Normally Closed

Fitted Coil:

	BRANDO Model	BB13241286
	Voltage	12VDC, 24VDC, 24VAC, 110VAC, 220VAC
	Power	13VA, 10W, 14W
	Other voltage and power can be customized
	Connection Type	Flying Leads

Our Production:

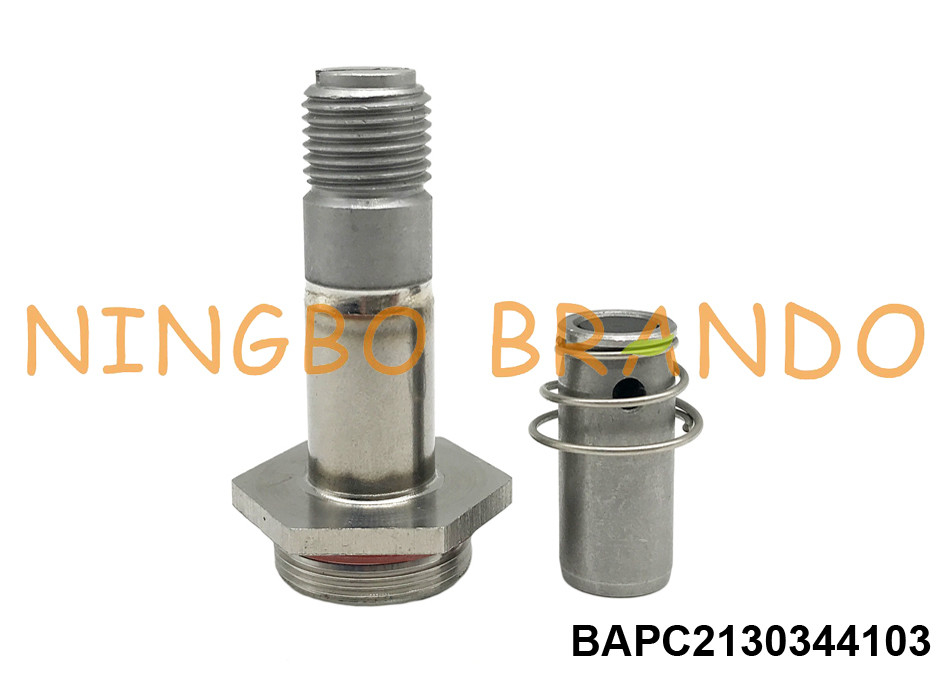

GC Type 2 Way NC Solenoid Valve Armature With Plunger Tube And Iron Core 2

More Solenoid Coils and Armatures:

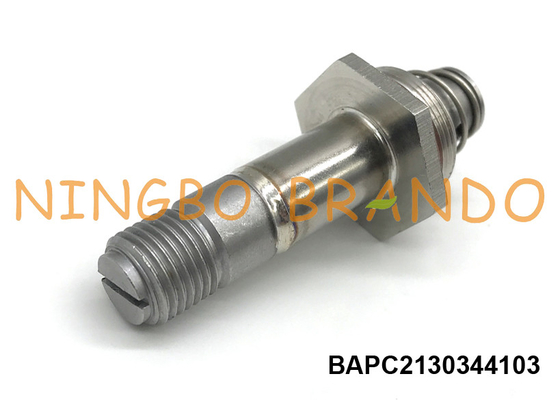

GC Type 2 Way NC Solenoid Valve Armature With Plunger Tube And Iron Core 3

FAQ: How to choose a right solenoid armature?

1. Working voltage: AC or DC
2. Function: 2/2 way or 3/2 way
3. De-energized state: Normal Closed, Normal Open or Divert
4. Stroke of the matched valve body
5. Valve’s orifice size
6. Working environment: working medium, temperature, pressure, etc
