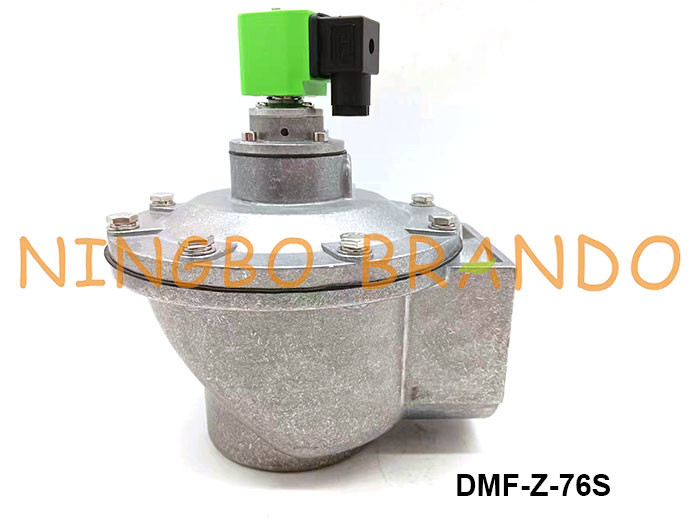

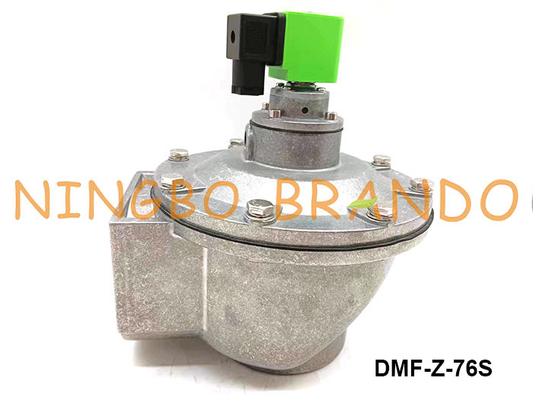

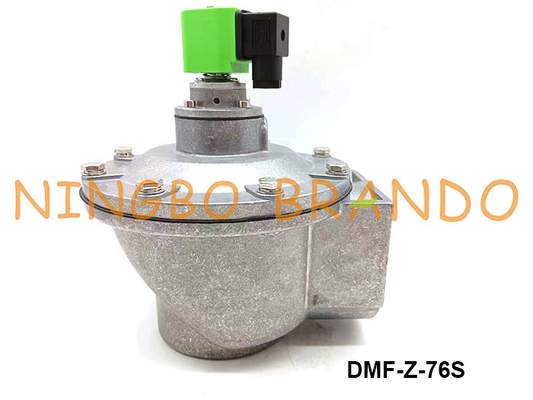

3 Inch DMF-Z-76S SBFEC Type Right Angle Diaphragm Solenoid Pulse Jet Valve For Dust Collector

3 Inch DMF-Z-76S SBFEC Type Right Angle Diaphragm Solenoid Pulse Jet Valve For Dust Collector

  • 3 Inch DMF-Z-76S SBFEC Type Right Angle Diaphragm Solenoid Pulse Jet Valve For Dust Collector
  • 3 Inch DMF-Z-76S SBFEC Type Right Angle Diaphragm Solenoid Pulse Jet Valve For Dust Collector
3 Inch DMF-Z-76S SBFEC Type Right Angle Diaphragm Solenoid Pulse Jet Valve For Dust Collector
Product Details:
Place of Origin: China
Brand Name: BRANDO
Certification: CE
Model Number: DMF-Z-76S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Inner Box,Carton,Pallet
Delivery Time: 4-7 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Product Name: BFEC Pulse Jet Valve Valve Type: Right Angle (Threaded)
Port Size: 3'' Coil Voltage: 24VDC, 220VAC
Diaphragm Material: NBR, FKM No Of Diaphragm: 2
Body Material: Aluminum Alloy Pressure Range: 0.1 To 0.8 MPa
High Light:

Pulse Jet Valve 3 Inch

,

DMF-Z-76S SBFEC Type Pulse Valve

,

Right Angle Diaphragm Solenoid Pulse Valve

3 Inch DMF-Z-76S SBFEC Type Right Angle Solenoid Pulse Jet Valve For Dust Collector



Products Description
Pulse Jet Valve, also called diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the pulse controller. Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. They are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.

Different pulse jet valve structure:
1. Right Angle Type
2. Fixed Nut Type
3. Embedded Type 4. Flanged Type
5. Straight Through Type
Ordering Code
3 Inch DMF-Z-76S SBFEC Type Right Angle Diaphragm Solenoid Pulse Jet Valve For Dust Collector 0
Main Dimension
3 Inch DMF-Z-76S SBFEC Type Right Angle Diaphragm Solenoid Pulse Jet Valve For Dust Collector 1
DMF-Z-76S
Technical Data
3 Inch DMF-Z-76S SBFEC Type Right Angle Diaphragm Solenoid Pulse Jet Valve For Dust Collector 2
Model No
DMF-Z-20
DMF-Z-25
DMF-Z-40S
DMF-Z-50S
DMF-Z-62S
DMF-Z-76S
DMF-Z-102S
Port Size
3/4''
1''
1 1/2''
2''
2 1/2''
3''
4''
Diaphragm Number
1
2
Diaphragm Material
NBR, FKM
Body Material
Aluminum Alloy
Working Pressure Range
0.1 to 0.8 MPa
Coil Voltage
24VDC, 24VAC, 110VAC, 220VAC

Pulse Valve Series
3 Inch DMF-Z-76S SBFEC Type Right Angle Diaphragm Solenoid Pulse Jet Valve For Dust Collector 3
Our Production
3 Inch DMF-Z-76S SBFEC Type Right Angle Diaphragm Solenoid Pulse Jet Valve For Dust Collector 4


Technical Data of  Z series Right Angle Pulse Jet Valves:

Model
Nominal diametrer
Number of diaphragms
Inlet
Outlet
Weight (kg)
mm
inch
DMF-Z-20
Φ20
3/4''
1
3/4''
3/4''
0.65
DMF-Z-25
Φ25
1'''
1
1''
1''
0.8
DMF-Z-40S
Φ40
1 1/2''
2
1 1/2''
1 1/2''
1.4
DMF-Z-50S
Φ50
2''
2
2''
2
2.4
DMF-Z-62S
Φ62
2 1/2''
2
2 1/2''
2 1/2''
3.5
DMF-Z-76S
Φ76
3''
2
3''
3''
4.3
DMF-Z-90S
Φ90
3 1/2''
2
3 1/2''
3 1/2''
5.75
DMF-Z-102S
Φ102
4''
2
4''
4''
7.3
DMF-20L-B
Φ20
3/4''
1
3/4''
Φ27
0.75



Tips: All related accessories are also sold, like Pulse Controller, Diaphragm Repair Kit, Solenoid Valve Coil and Solenoid Valve Armature Assembly.




More BFEC Pulse Valve For You to Choose:

3 Inch DMF-Z-76S SBFEC Type Right Angle Diaphragm Solenoid Pulse Jet Valve For Dust Collector 53 Inch DMF-Z-76S SBFEC Type Right Angle Diaphragm Solenoid Pulse Jet Valve For Dust Collector 63 Inch DMF-Z-76S SBFEC Type Right Angle Diaphragm Solenoid Pulse Jet Valve For Dust Collector 7

           Right Angle Type                         Quick Mount Type                         Submerged Type

3 Inch DMF-Z-76S SBFEC Type Right Angle Diaphragm Solenoid Pulse Jet Valve For Dust Collector 83 Inch DMF-Z-76S SBFEC Type Right Angle Diaphragm Solenoid Pulse Jet Valve For Dust Collector 9 3 Inch DMF-Z-76S SBFEC Type Right Angle Diaphragm Solenoid Pulse Jet Valve For Dust Collector 10 3 Inch DMF-Z-76S SBFEC Type Right Angle Diaphragm Solenoid Pulse Jet Valve For Dust Collector 11

            Diaphragm                     Solenoid Coil                  Armature Assembly            Pulse Controller



Focus on your demands, Offer you best solution:



√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing



Welcome to your any question and inquiry!
