| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | CA89MM |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | inner boxes,cartons,pallets |
| Delivery Time: | 7 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100000pcs per month |
| Port Size: | 3" | Working Medium: | Air |
|---|---|---|---|
| Application: | Dust Collector | Power: | Solenoid |
| Structure: | Diaphragm | Pressure: | 0.3~0.8Mpa |
| Working Temperature: | -5℃ To 55℃ | Voltage: | AC220V, AC110V, AC24V, DC24V |
| Diaphragm Material: | NBR, FKM | Body Material: | Aluminum Alloy |
| High Light: | CA89MM Goyen Pulse Valve,3" Goyen Pulse Valve,Manifold Mount Pulse Valve |
||

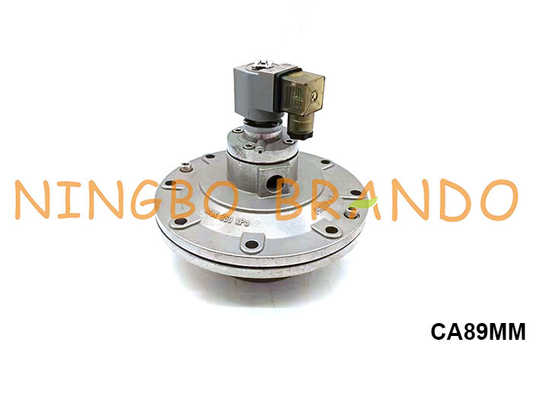

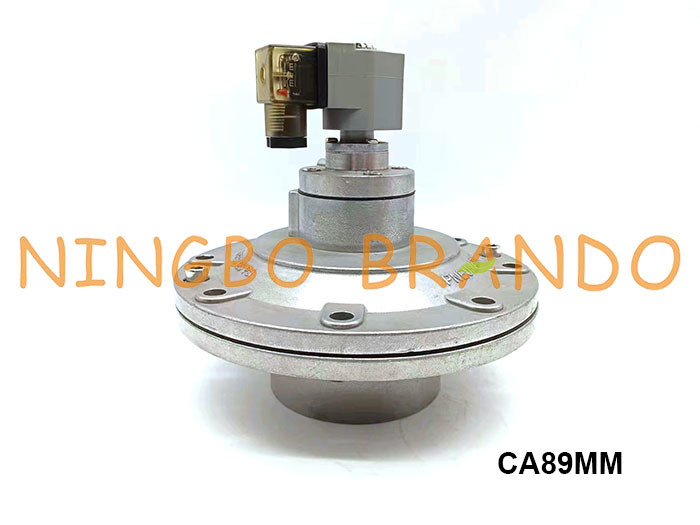

3" CA89MM Goyen Type Manifold Mount Full Immerse Pulse Jet Valve
Products Description
Pulse Jet Valve, also called diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the pulse controller. Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. They are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.
The full immersion manifold flat mount valves of the Goyen MM deliver the most powerful air pulse in square tank systems. When included in a fluid control and/or regulation system, valve manifolds have shown to improve efficiency as well as reduce energy costs. These diaphragm valves are designed for dust collectors and baghouses with reverse pulse jet filter cleaning systems.
Construction:
Body and Dreeser Nuts: Aluminum (diecast)
Ferrule: 305 Stainless Steel
Armature: 430FR Stainless Steel
Diaphragm and Seals: Nitrile or FKM
Spring: 304 Stainless Steel
Screws: 302 or 304 Stainless steel
Outlet Pipe: Schedule 40 wrought steel zinc passivated
Diaphragm Seat: PA-66 (25 & 40MM standard), Nitrile-coated mild steel (76MM standard), Acetal (102MM standard) or FKM coated mild steel
Welcome to your any question and inquiry!
