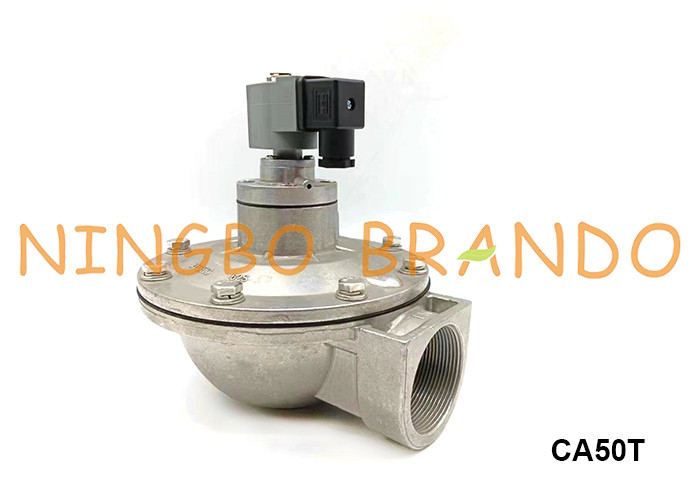

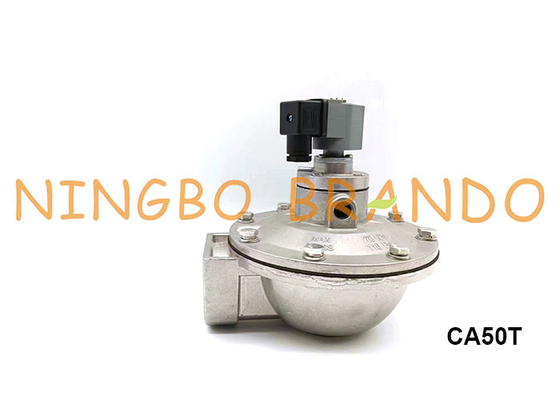

2'' CA50T Goyen Type Diaphragm Pulse Jet Valve For Dust Collector Bag Filter

2'' CA50T Goyen Type Diaphragm Pulse Jet Valve For Dust Collector Bag Filter

  • 2'' CA50T Goyen Type Diaphragm Pulse Jet Valve For Dust Collector Bag Filter
  • 2'' CA50T Goyen Type Diaphragm Pulse Jet Valve For Dust Collector Bag Filter
2'' CA50T Goyen Type Diaphragm Pulse Jet Valve For Dust Collector Bag Filter
Product Details:
Place of Origin: China
Brand Name: BRANDO
Certification: ISO, CE
Model Number: CA50T
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Inner Box, Carton, Pallet
Delivery Time: 4 to 7 days
Payment Terms: T/T, PayPal, Western Union
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
Port Size: 2'' Valve Series: T
Valve Structure: Right Angle, Threaded Port Diaphragm Material: NBR, FKM
Working Pressure Range: 0.35 To 0.85 MPa Coil Voltage: 24VDC, 110VAC, 220VAC
Body Material: Aluminum (diecast) Application: Dust Collector
High Light:

Pulse Jet Valve CA50T

,

Goyen Diaphragm Pulse Valve

,

2'' Bag Filter Pulse Jet Valve

2'' CA50T Goyen Type Diaphragm Pulse Jet Valve For Dust Collector Bag Filter

Products Description
Pulse Jet Valve, also called diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the pulse controller. Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. They are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.

Ordering Code
2'' CA50T Goyen Type Diaphragm Pulse Jet Valve For Dust Collector Bag Filter 0

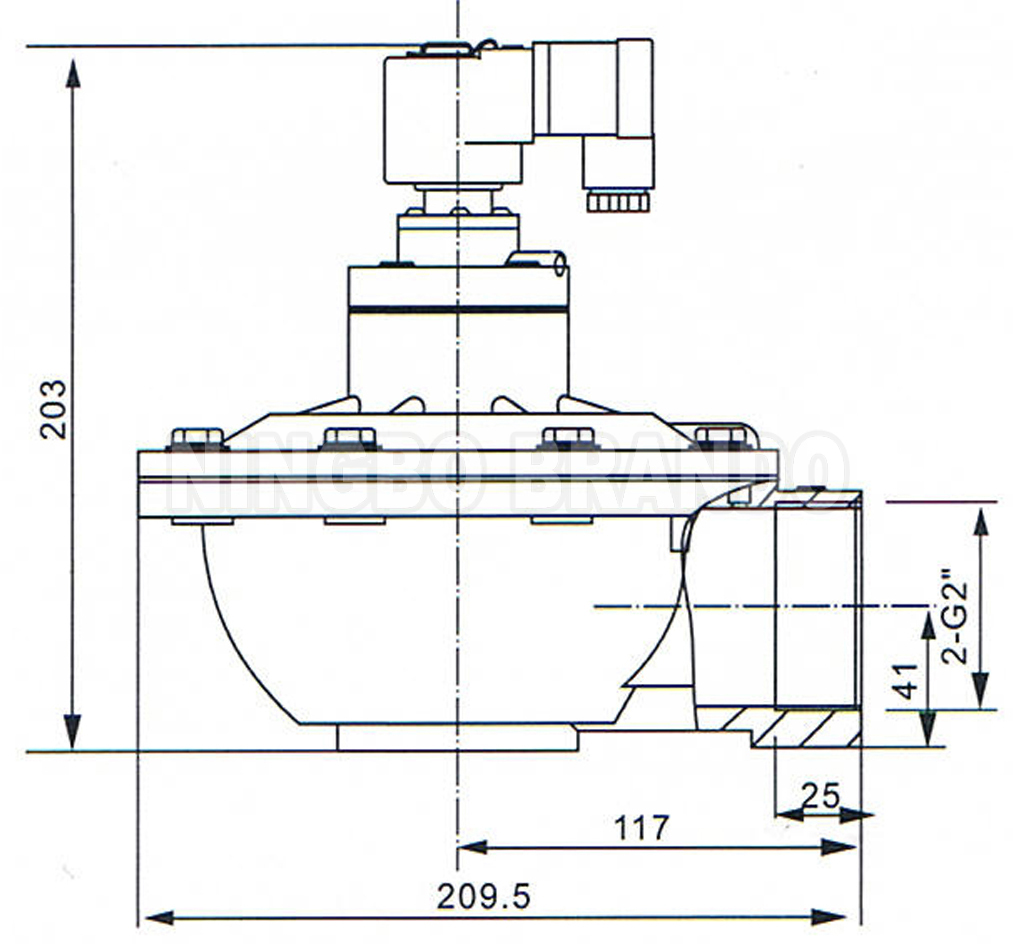

Main Dimension
2'' CA50T Goyen Type Diaphragm Pulse Jet Valve For Dust Collector Bag Filter 1
CA50T
Technical Data
2'' CA50T Goyen Type Diaphragm Pulse Jet Valve For Dust Collector Bag Filter 2
Model No
CA15T
CA20T
CA25T
CA35T
CA45T
CA50T


CA62T
CA76T
Orifice Size
(mm)
15
20
25
35
45
50
62
76
Port Size
(Inch)
1/2''
3/4''
1''
1 1/2''
1 1/2''
2''
2 1/2''
3''
Diaphragm Number
1
2
Working pressure
5 to 125 psi
Voltage
24VDC, 24VAC, 110VAC, 220VAC
Diaphragm Material
NBR, FKM
Body Material
Aluminum (diecast)
Valve Structure
Right Angle (Outlet is at 90° to Inlet)
Pulse Valve Series
2'' CA50T Goyen Type Diaphragm Pulse Jet Valve For Dust Collector Bag Filter 3

Our Production
2'' CA50T Goyen Type Diaphragm Pulse Jet Valve For Dust Collector Bag Filter 4

Focus on your demands, Offer you best solution:



√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing



Welcome to your any question and inquiry!
