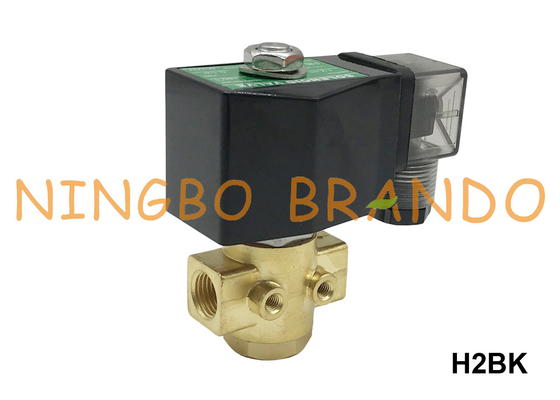

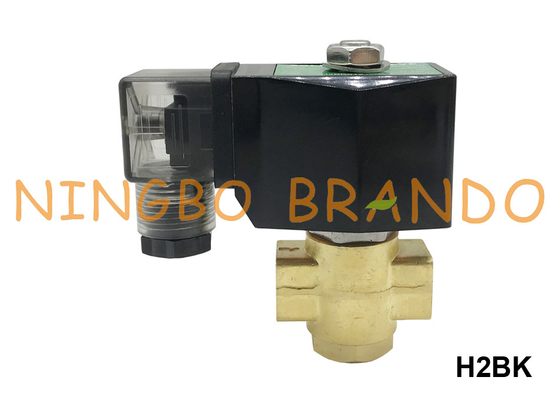

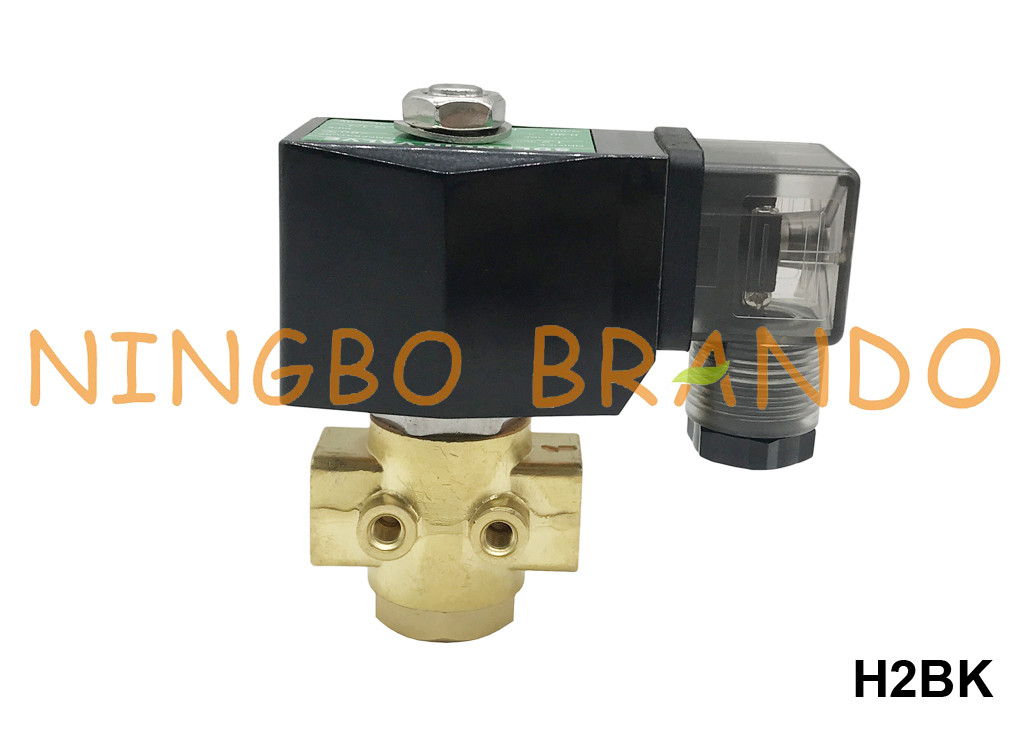

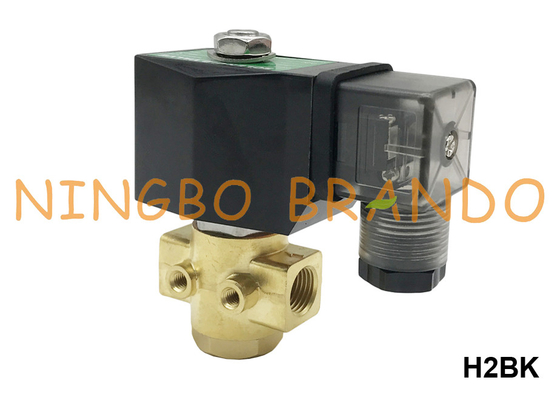

High Pressure 90 bar Normally Open Brass Solenoid Valve 1/8'' 1/4'' 24VDC 220VAC

High Pressure 90 bar Normally Open Brass Solenoid Valve 1/8'' 1/4'' 24VDC 220VAC

  • High Pressure 90 bar Normally Open Brass Solenoid Valve 1/8'' 1/4'' 24VDC 220VAC
  • High Pressure 90 bar Normally Open Brass Solenoid Valve 1/8'' 1/4'' 24VDC 220VAC
  • High Pressure 90 bar Normally Open Brass Solenoid Valve 1/8'' 1/4'' 24VDC 220VAC
  • High Pressure 90 bar Normally Open Brass Solenoid Valve 1/8'' 1/4'' 24VDC 220VAC
High Pressure 90 bar Normally Open Brass Solenoid Valve 1/8'' 1/4'' 24VDC 220VAC
Product Details:
Place of Origin: Ningbo, China
Brand Name: BRANDO
Certification: CE, ISO
Model Number: H2BK
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: Box, Carton, Pallet
Delivery Time: 4 to 7 working days
Payment Terms: T/T, PayPal, Western Union
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
Product Name: Solenoid Valve Port Size: 1/8'', 1/4''
Orifice Size: 1mm, 1.5mm Function: 2 Way Normally Open
Operation: Direct Acting Body Material: Brass
Seal Material: NBR, EPDM, FKM Working Medium: Water, Air, Gas, Oil, Etc
Working Pressure Range: 0 To 90 Bar Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC
High Light:

High Pressure Normally Open Solenoid Valve

,

Normally Open Solenoid Valve 1/4''

,

Normally Open Solenoid Valve 220VAC

High Pressure 90 bar Normally Open Brass Solenoid Valve 1/8'' 1/4'' 24VDC 220VAC



Product Features:

1. Working Medium: Water, Air, Gas, Oil, Liquid, etc
2. Max Working Pressure: 100 bar (See the parameter table below for details)
3. Seal Material: NBR, EPDM, FKM, PTFE
4. Body Material: Brass, Stainless Steel
5. Port Size: 1/8'', 1/4'', 3/8'', 1/2'', 3/4'', 1''
6. Orifice Size: 1mm, 1.5mm, 6mm, 10mm, 15mm, 20mm, 25mm
7. Function: 2 Way Normally Open
8. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)



Technical Data:​

Model No
Port Size
(inch)
Orifice Size
(mm)
CV
Min Working Pressure
(bar)
Max Working Pressure
(bar)
Function
H2
1/8''
1/4''
1
0.04
0
90
2 Way
Normally Open
1.5
0.1
0
50
3/8''
6
0.8
0.5
100
1/2''
10
1.8
0.5
70
1/2''
15
4.6
0.5
50
3/4''
20
8.5
0.5
50
1''
25
12
0.5
50



Main Dimension:

High Pressure 90 bar Normally Open Brass Solenoid Valve 1/8'' 1/4'' 24VDC 220VAC 0



Production Show:

High Pressure 90 bar Normally Open Brass Solenoid Valve 1/8'' 1/4'' 24VDC 220VAC 1



Production Video:



Focus on your demands, Offer you best solution:



√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing



Welcome to your any question and inquiry!
