| Place of Origin: | China |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | 276886 |
| Minimum Order Quantity: | 5 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plastic bag, Box, Carton, Pallet |
| Delivery Time: | 3 to 5 working days |
| Payment Terms: | T/T, PayPal, Western Union |
| Supply Ability: | 100000 sets per month |
| Product Name: | Pulse Valve Diaphragm | Fitted Pulse Valve Port Size: | 1 1/2'' |
|---|---|---|---|
| Fitted Pulse Valve Model: | 8353H038 | Diaphragm Material: | HYT (HYTREL) |
| Color: | White, Black | 1 Set: | 1x Big Diaphragm, 1x Small Diaphragm, 2x Springs |
| High Light: | Pulse Jet Diaphragm Repair Kit,ASCO Diaphragm Kit 276886,HYT Pulse Jet Valve Diaphragm |
||

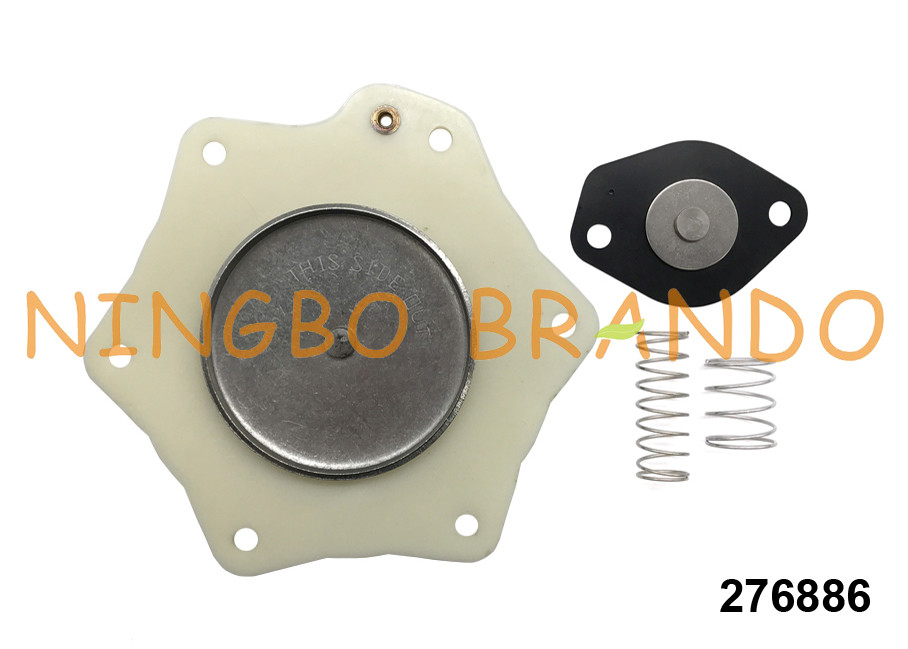

276886 Hydrel Diaphragm For 8353H038 ASCO Dust Collector Pulse Jet Valve Repair Kit
The diaphragm is the most important part of the pulse valve. When the pulse valve is energised, the trapped air above pulse valve diaphgram is quickly exhausted causing fast opening of main diaphragm valve. When the pulse valve is de-energised , air escapes through bleed hole of main pulse valve to balance the diaphragm pressure and instantly closes the pulse valve.
Overall Dimension of 276886 Diaphragm:
 |
|
| Main Diaphragm | Secondary Diaphragm |
Model No of Pulse Valve Diaphragm:
|
Integral Pilot
Pulse Valve
Model No
|
Remote Pilot
Pulse Valve
Model No
|
Pulse Valve
Port Size
|
Diaphragm Model
|
Diaphragm
Model
(10 pack)
|
Diaphragm Material
|
|
-
|
8353C033
|
3/4''
|
96875
|
238864
|
NBR diaphragm
|
|
-
|
8353C030
|
3/4''
|
96875
|
238864
|
NBR diaphragm
|
|
-
|
8353C004
|
3/4''
|
96875
|
238864
|
NBR diaphragm
|
|
-
|
8353C035
|
1''
|
200262
|
238866
|
HYTREL diaphragm
|
|
8353G041
|
-
|
1''
|
316563
|
238866
|
HYTREL diaphragm
|
|
8353G006
|
-
|
1''
|
300144
|
-
|
CR diaphragm, PA disc
|
|
8353G005
|
-
|
1 1/4''
|
300144
|
-
|
CR diaphragm, PA disc
|
|
8353G001
|
-
|
1 1/2''
|
300144
|
-
|
CR diaphragm, PA disc
|
|
-
|
8353H038
|
1 1/2''
|
276886
|
238870
|
HYTREL diaphragm
|
|
8353J039
|
-
|
1 1/2''
|
322108
|
238870
|
HYTREL diaphragm
|
|
8353G061
|
-
|
1 1/2''
|
316297
|
-
|
NBR diaphragm, PA disc
|
|
-
|
8353A062
|
1 1/2''
|
276884
|
-
|
NBR diaphragm, PA disc
|
|
8353G002
|
-
|
2''
|
300145
|
-
|
CR diaphragm, PA disc
|
|
-
|
8353 048
|
2''
|
256802
|
256797
|
CR diaphragm
|
|
8353G050
|
-
|
2''
|
316029
|
256797
|
CR diaphragm
|
|
8353G007
|
-
|
2 1/2''
|
176878
|
-
|
CR diaphragm, PA disc
|
|
8353G008
|
-
|
3''
|
176878
|
-
|
CR diaphragm, PA disc
|
Our Production of Pulse Valve Diaphragm:
