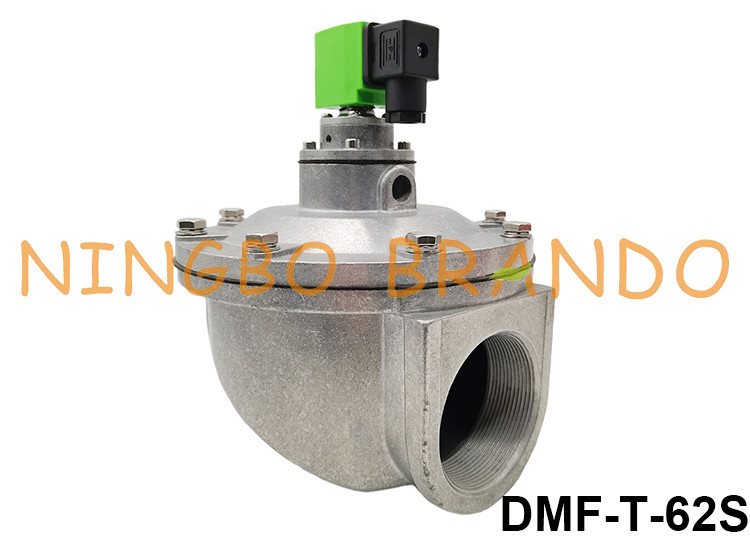

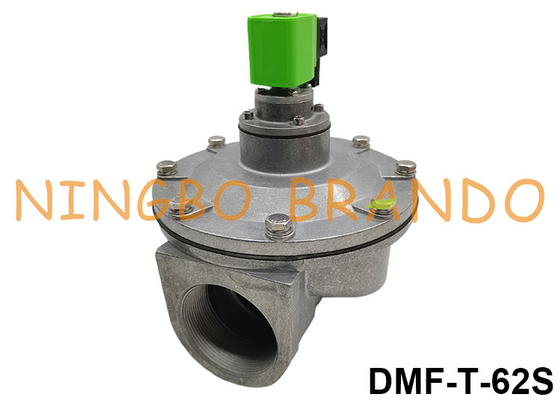

Name: BFEC DMF-T-62S 2-1/2'' Straight Through Dust Collector Pulse Jet Valve For Bag Filter
Brand: BRANDO
SKU: DMF-T-62S
Rating: 5 (134 reviews)

Home Products Pulse Jet Valve

BFEC DMF-T-62S 2-1/2'' Straight Through Dust Collector Pulse Jet Valve For Bag Filter

Product Details:

Place of Origin:	Ningbo, China
Brand Name:	BRANDO
Certification:	CE, ISO
Model Number:	DMF-T-62S

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Negotiation
Packaging Details:	Inner Box, Carton, Pallet
Delivery Time:	4 to 7 working days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	10000 pcs per month

Contact Now

Detailed Product Description

Type:	Straight Through Diaphragm Valve	Power:	Solenoid
Media:	Air	Port Size:	2-1/2''
Structure:	Diaphragm	Diaphragm Material:	NBR(Common), FKM(Available)
Number Of Diaphragm:	2	Pressure:	0.1 To 0.8MPa
Temperature:	-25 To +80℃	Body Material:	Aluminum Alloy
High Light:	BFEC DMF-T-62S Pulse Jet Valve , Dust Collector Pulse Valve , Diaphragm Solenoid Pulse Jet Valve

BFEC DMF-T-62S 2-1/2'' Straight Through Dust Collector Pulse Jet Valve For Bag Filter

Features of SBFEC Type Pulse Jet Valve:

1.Can withstand high pressure

High quality die casting Aluminum alloy valve body with good resistance to moisture and corrosion,would hold a pressure up to 0.8Mpa. Diaphragm Life over One million blows or 3 years.

2.Application

Dust collector applications, in particular for reverse pulse jet filter cleaning and its variations, including bag filters, cartridge filters and envelope filters, ceramic filters and sintered metal fibre filters.

Technical Data of SBFEC Type DMF Series Striaght Through Pulse Jet Valve:

Model number	DMF-T-20	DMF-T-25S	DMF-T-40S	DMF-T-50S	DMF-T-62S
Port sizes	3/4''	1''	1-1/2''	2''	2-1/2''
CV values	18.42	21.65	53.24	59.25	130.32
Environment Temperature	-25℃ to +80℃
Relative Humidity	≤85%
Working Medium	Clean Air
Protection Class	IP65
Service Life	Over one million times
Voltage	DC24V, AC24V, AC110V, AC220V

Main Dimension:

BFEC DMF-T-62S 2-1/2'' Straight Through Dust Collector Pulse Jet Valve For Bag Filter 0

BFEC DMF Series Pulse Jet Valve For Dust Collector System:

Thread Valve	3/4''	1''	1.5''	2''	2.5''	3''	4''
Thread Valve	DMF-Z-20	DMF-Z-25	DMF-Z-40S	DMF-Z-50S	DMF-Z-62S	DMF-Z-76S	DMF-Z-102S
Quick Mount Valve	3/4''	Inlet φ27	1''		1.5''
Quick Mount Valve	DMF-ZM-20	DMF-ZL-B	DMF-ZM-25		DMF-ZM-40S
Flange Valve	1''			1.5''
Flange Valve	DMF-ZF-25			DMF-ZF-40S
Embedded Valve	1''	1.5''	Outlet φ62mm	Outlet φ75	Outlet φ89	Outlet φ114	Outlet φ102
Embedded Valve	DMF-Y-25	DMF-Y-40S	DMF-Y-50S	DMF-Y-62S	DMF-Y-76S	DMF-Y-102S	DMF-Y-102SA

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing

Welcome to your any question and inquiry!
