| Place of Origin: | Ningbo, China |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | PMM |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plastic bag, Box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 10000000pcs per month |
| Product Name: | Pneumatic Hose Fittings | Material: | Plastic / Brass |
|---|---|---|---|
| Threaded Connection: | G, NPT | Wokring Pressure: | 0-0.8 MPa |
| Connecting Tube Material: | PA, PU | Connecting Tube OD: | 3, 4, 6, 8, 10, 12, 16 |
| Medium: | Compressed Air | Working Temperature: | 0-60℃ |
| High Light: | Bulkhead Union Pneumatic Hose Fitting,PMM Pneumatic Hose Fitting,Pneumatic Push Fit Connector |
||

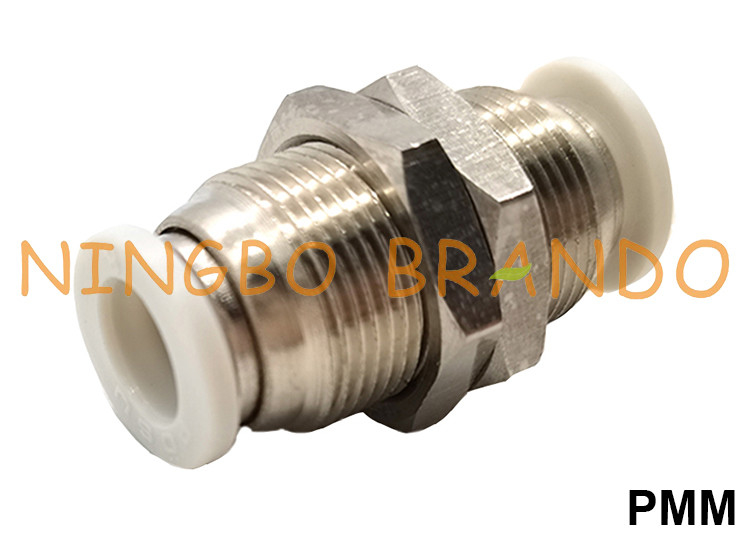

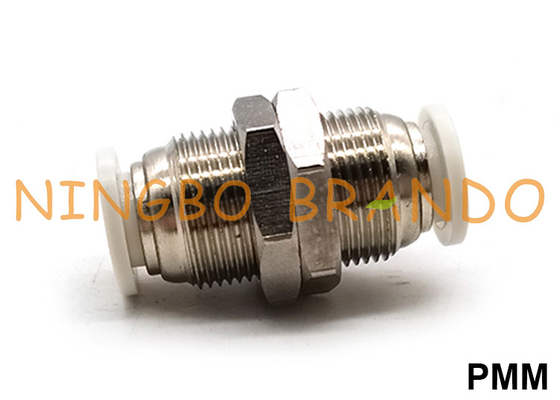

PMM Bulkhead Union Push In Tube Pneumatic Hose Fitting M5 M6 M12 M14 M16 M18 M20
Brando's push to connect pneumatic hose fittings (or push-in pneumatic hose fittings) are a quick and convenient method of connecting components in a pneumatic system. Designed for use with polyurethane, polyethylene, and nylon tubing, our composite push-in fittings are available in a variety of sizes to accommodate tubing ranging from 1/8 OD to 1/2 OD. Numerous configurations are available to meet your connection requirements.
See individual product listings below for additional information and specifications.
Dimension of PMM Pneumatic Hose Fittings:
|
Model No
|
M
|
φD1
|
L
|
S
|
|
PMM4
|
M12X1
|
4
|
30
|
16
|
|
PMM6
|
M14X1
|
6
|
32
|
17
|
|
PMM8
|
M16X1
|
8
|
36
|
19
|
|
PMM10
|
M18X1
|
10
|
41
|
21
|
|
M20X1
|
10
|
41
|
24
|
|
|
PMM12
|
M20X1
|
12
|
44
|
24
|
|
M22X1
|
12
|
44
|
26
|
List of All Plastic Pneumatic Hose Fittings:
Directions for use!
1. Do Not Exceed 145psi Pressure
2. Do Not Use the Product Outside the Temperature Range
3. Do Not Use in Places with Too Much Dust or Particles
4. Do Not Use Any Medium Other Than Air. the Product is Limited to Air or Vacuum Environment.
5. After Completing the Connection, Please Gently Pull the Tube with 6. Your Hand to Make Sure That It is Completely Connected Without Falling Off.
7. Please Ensure That the Cross Section of the Trachea is Perpendicular to the Trachea.
8. Do Not Work Under Additional Load (bending, Twisting, Pulling, Etc.) Except Air Pressure.
9. when Inserting the Tube, Please Insert the Tube into the Bottom Before Use.
