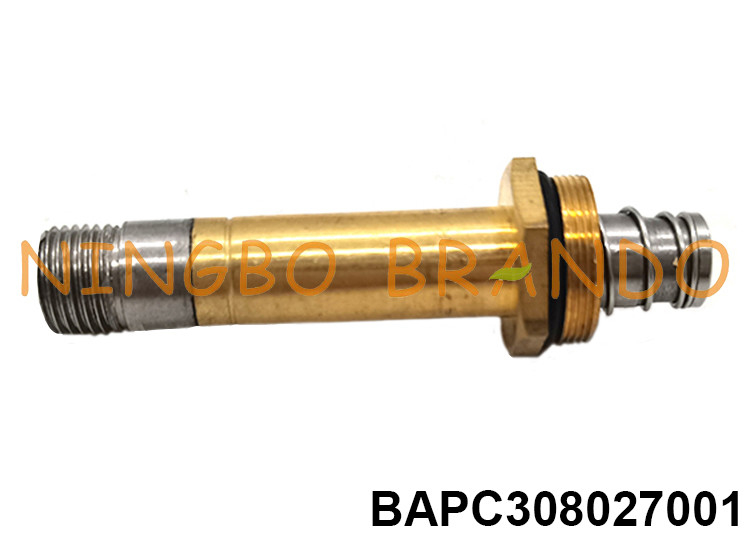

Solenoid Valve Armature Tube 3 Way Normally Closed With Plunger Tube And Iron Core

Solenoid Valve Armature Tube 3 Way Normally Closed With Plunger Tube And Iron Core

The magnetic (solenoid) valve includes an electromagnet which comprises a coil arrangement and an armature driven by the coil arrangement. A control part is provided on the armature, which corresponds to at least one channel aperture to be controlled in a fluid channel, and which is shifted at the control movement of the armature relative to the at least one channel aperture. The armature is formed as a pivot anchor, whose switching movement is a pivotal movement , at which the control part is shifted orthogonally to the longitudinal axis of the coil arrangement.

Details of Solenoid Valve Armature Assembly:

  3 Way Normally Closed                    Flange Seat

           Plunger Slot                         NBR Seal

Technical data of Solenoid Valve Armature Assembly:

Main dimension of Solenoid Valve Armature Assembly:

Brando Factory Production of Solenoid Valve Armature Assembly:

More Solenoid Valve Armature Assembly for you to choose:

*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

*According to tube material: Brass, Stainless Steel

*According to valve application:

1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
