| Place of Origin: | Ningbo, China |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | FDF2AK |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Box, Carton, Pallet |
| Delivery Time: | 7 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 100000 pcs per month |
| Product Name: | Refrigeration Solenoid Valve | Function: | 2 Way Normally Open |
|---|---|---|---|
| Orifice Size: | 1.8mm | Tube OD: | 1/4'' (Φ6.35mm) |
| Working Pressure: | 0 To 21 Bar | Proof Pressure: | 45 Bar |
| Refrigerant: | HCFC, HFC, Etc | Operation: | Direct Operated |
| Voltage: | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC | Wiring Type: | Flying Leads |
| Application: | Air Conditioner, Heat Pump, Ice Maker, Freezer, Cooler, Etc | ||
| High Light: | Sanhua Solenoid Valve FDF2AK01,Sanhua Solenoid Valve FDF2AK,Normally Open Refrigeration Solenoid Valve |
||

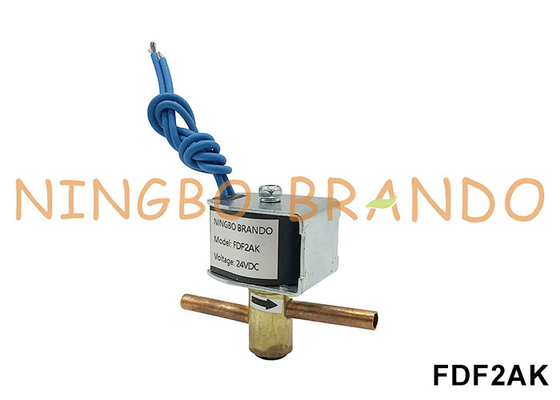

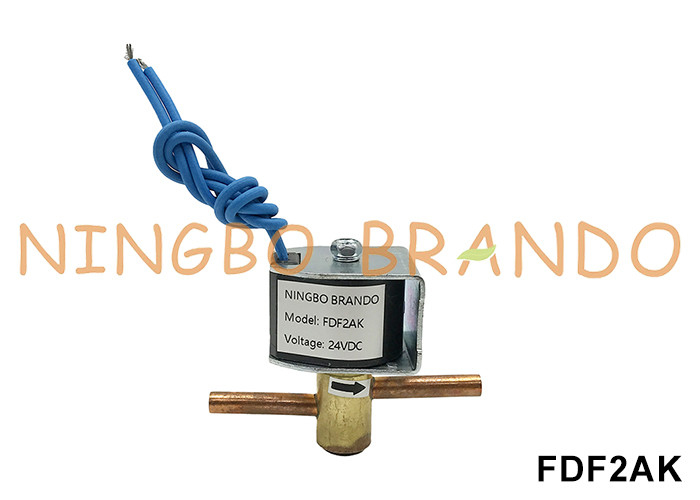

FDF2AK Sanhua Type Normally Open Refrigeration Solenoid Valve FDF2AK01 1/4''
FDF2AK series solenoid valves are direct operated, normally open solenoid valves, mainly used in refrigerant control of various
devices such as refrigerating and freezing systems, air conditioners and heat pumps.
Features:
1. Compact design
2. Low energy consumption
3. Excellent operation performance
General Specifications:
1. Applicable for all common HCFC, HFC refrigerants such as:
R22, R134a, R404A, R407C, R410A, R507, R407A/F, R448A/R449A, R452A, R450A/R513A1)
2. Medium temperature TS min./max.: -30°C / 120°C
3. Ambient temperature: -30°C / +50°C
4. Relative humidity: 0 to 95% RH
5. Installation position:
1) Liquid, suction and discharge line
2) Coil upwards, coil axis ±15° tolerance versus vertical axis
3) Flow direction corresponds to the arrow
Technical Data:
|
Model No
|
Function
|
Operation
|
Orifice
|
Kv (m³/h)
|
MOP
|
Max.
OPD
|
Min.
OPD
|
Connection
OD
|
|
FDF2AK01
|
2 Way
NO
|
Direct Acting
|
1.8mm
|
0.05
|
45 bar
|
21 bar
|
0 bar
|
1/4''
(Φ6.35mm)
|
