| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | VX31, VX32, VX33 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Inner boxes, Carton, Pallet |
| Delivery Time: | 4-8 days |
| Payment Terms: | L/C, T/T, PayPal, Western Union, MoneyGram |
| Supply Ability: | 100000 pcs per month |
| Port Size: | 1/8'', 1/4'' | Orifice Size: | 1.5mm, 2.0mm, 2.5mm, 3.0mm, 4.0mm |
|---|---|---|---|
| Operation Mode: | 3 Way NC, 3 Way NO, Universal | Action: | Direct Acting |
| Body Material: | Brass, Stainless Steel | Seal Material: | NBR, EPDM, FKM |
| Voltages: | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC | Pressure Range: | 0 To 1 MPa |
| High Light: | 3/2 Way Brass Solenoid Valve,1/4'' Brass Solenoid Valve,VX31 Solenoid Valve |
||

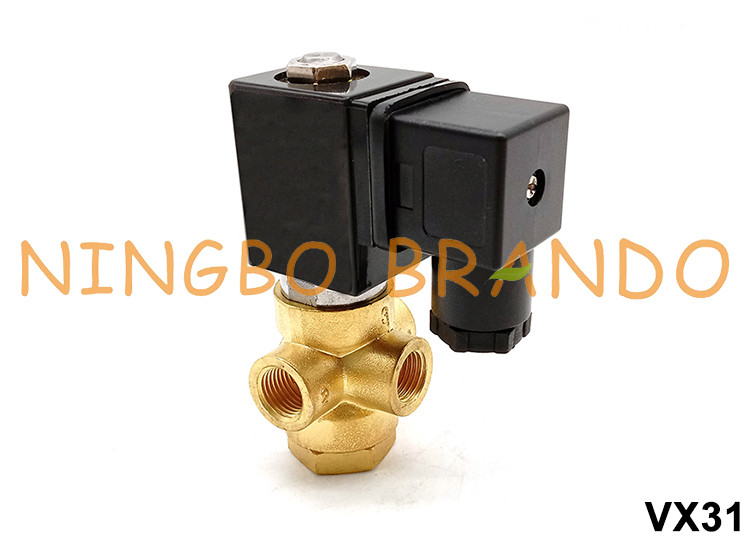

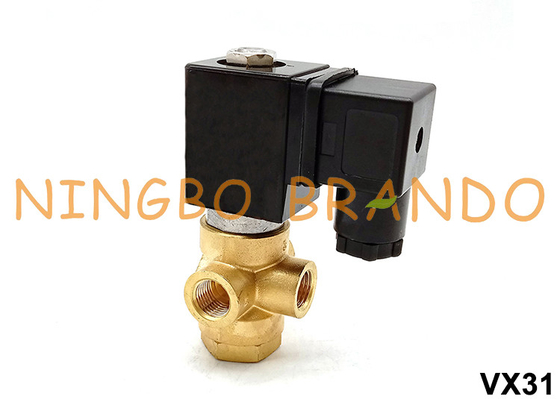

3/2 Way 1/8'' 1/4'' Brass Solenoid Valve Direct Acting 24V 220V VX31
The multi-purpose 3/2 way direct acting solenoid valves are mainly suitable in the neutral gaseous and liquid fluid pipeline automatically control. It is suitable the medium of gas, water, oil, vacuum, steam. Can be operated with zero pressure difference & circulation direction is random.
Product Features:
1. Working Medium: Air, Water, Steam, Oil, Gas, Vaccum, etc.
2. Working Pressure Range: 0 to 1 MPa (See the parameter table below for details)
3. Medium Temperature Range: NBR (-10 to +80℃), EPDM (-30 to +120℃), FKM (-30 to +150℃)
4. Port Size: 1/8'', 1/4''
5. Orifice Size: 1.5mm, 2.0mm, 2.5mm, 3.0mm, 4.0mm
6. Body Material: Brass, Stainless Steel
7. Seal Material: NBR, EPDM, FKM
8. Function: 3 Way Normally Closed, 3 Way Normally Open, Universal
9. Operation: Direct Acting
10. Voltage Option: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)
Main Dimension of VX Series Solenoid Valve:
Technical Data of VX Series Solenoid Valve:
|
Model
|
Function
|
Orifice Size
(mm)
|
Port Size
(inch)
|
CV
|
Working Pressure (bar)
|
Medium Temperature
|
|
|
AC
|
DC
|
||||||
|
VX31
|
3 Way, Normally Closed
|
1.5
|
1/8'', 1/4''
|
0.07
|
13
|
11
|
NBR: -5 to +85℃,
EPDM: -5 to +150℃,
FKM: -10 to +150℃
|
|
2.0
|
0.14
|
11
|
9
|
||||
|
2.5
|
0.21
|
9
|
7
|
||||
|
3.0
|
0.25
|
6
|
4
|
||||
|
4.0
|
0.35
|
3.5
|
2
|
||||
|
VX32
|
3 Way, Normally Open
|
1.5
|
0.07
|
13
|
11
|
||
|
2.0
|
0.14
|
11
|
9
|
||||
|
2.5
|
0.21
|
9
|
7
|
||||
|
3.0
|
0.25
|
6
|
4
|
||||
|
4.0
|
0.35
|
3.5
|
2
|
||||
|
VX33
|
3 Way, Universal Operation
|
1.5
|
0.07
|
13
|
11
|
||
|
2.0
|
0.14
|
11
|
9
|
||||
|
2.5
|
0.21
|
9
|
7
|
||||
|
3.0
|
0.25
|
6
|
4
|
||||
|
4.0
|
0.35
|
3.5
|
2
|
||||
Working flow direction of VX Series Solenoid Valve:
