| Place of Origin: | China, Ningbo |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | F1 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Box, Carton, Pallet |
| Delivery Time: | 4 to 7 days |
| Payment Terms: | T/T, PayPal, Western Union |
| Supply Ability: | 20000 pcs per month |
| Port Size: | 3/8'', 1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 2'' | Orifice Size: | 14mm, 25mm, 32mm, 40mm, 50mm |
|---|---|---|---|
| Function: | 2 Way Normally Closed | Operation: | Servo-Assisted Diaphragm |
| Body Material: | Brass | Diaphragm Material: | NBR, EPDM, VITON |
| Working Pressure Range: | 0.3 To 16 Bar | Voltage: | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC |
| High Light: | 2/2 Way Brass Solenoid Valve,Servo-Assisted Brass Solenoid Valve,High Pressure Solenoid Valve |
||

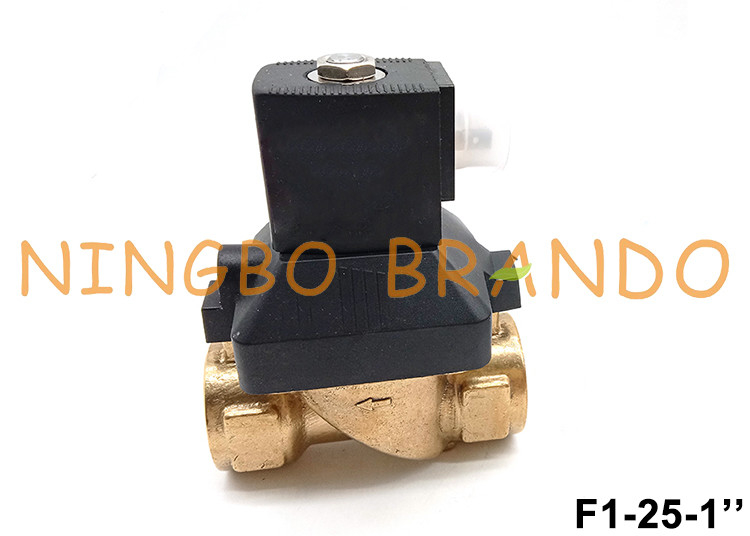

2/2 Way Servo-Assisted Brass Solenoid Valve 3/8'' to 2'' 16 bar
Product Features:
1. Working Medium: Air, Water, Gas, Oil, Liquid, etc
2. Working Pressure Range: 0.3 to 16 Bar
3. Seal Material: NBR, EPDM, VITON
4. Body Material: Brass
5. Port Size: 3/8'', 1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 2''
6. Orifice Size: 14mm, 25mm, 32mm, 40mm, 50mm
7. Operation: Servo-Assisted Diaphragm
8. Function: 2 Way Normally Closed
9. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Video of F1 Series Brass Solenoid Valve:
Technical Data of F1 Series Brass Solenoid Valve:
|
Model No
|
Orifice Size
(mm)
|
Port Size
(Inch)
|
Kv
(m³/h)
|
Working Pressure
(bar)
|
Medium Temperature
(℃)
|
Dimension (mm)
|
||
|
A
|
F
|
K
|
||||||
|
2 Way Normally Closed, Servo-Assisted Diaphragm
|
||||||||
|
F1-14-3/8''
|
14
|
3/8''
|
3
|
0.3 to 16
|
NBR: -10 ~ +80
EPDM: -30 ~ +120 VITON: -30 ~ +150 |
65
|
41
|
102
|
|
F1-14-1/2''
|
14
|
1/2''
|
3.8
|
65
|
41
|
102
|
||
|
F1-14-3/4''
|
14
|
3/4''
|
4.2
|
69
|
41
|
108
|
||
|
F1-25-3/4''
|
25
|
3/4''
|
9
|
92
|
60
|
122
|
||
|
F1-25-1''
|
25
|
1''
|
11
|
92
|
60
|
122
|
||
|
F1-25-1 1/4''
|
25
|
1 1/4''
|
18
|
114
|
80
|
135
|
||
|
F1-32-1 1/4''
|
32
|
1 1/4''
|
23
|
125
|
92
|
143
|
||
|
F1-32-1 1/2''
|
32
|
1 1/2''
|
18
|
114
|
80
|
135
|
||
|
F1-40-1 1/2''
|
40
|
1 1/2''
|
24
|
125
|
92
|
143
|
||
|
F1-40-2''
|
40
|
2''
|
28
|
129
|
92
|
155
|
||
|
F1-50-2''
|
50
|
2''
|
40
|
150
|
109
|
161
|
||
BRANDO Factory Production of Brass Solenoid Valves:
