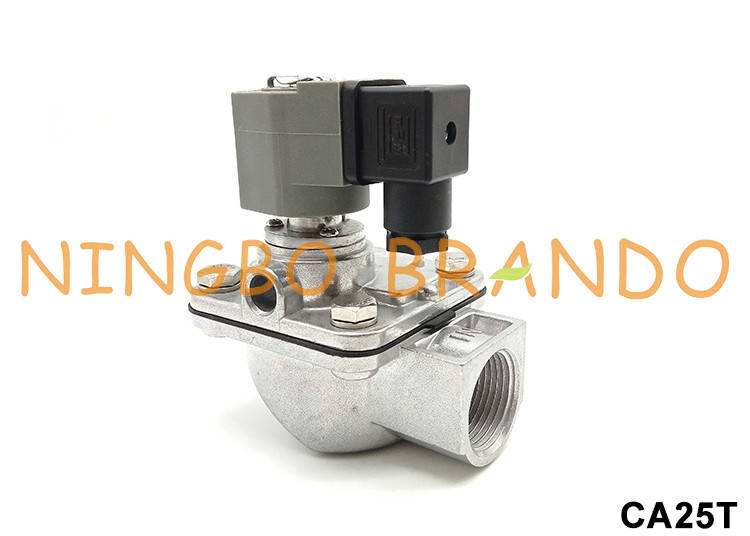

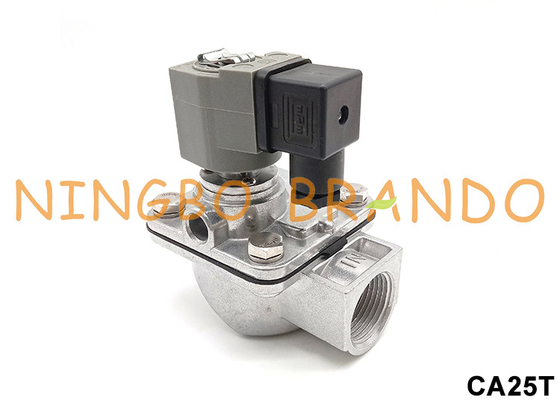

AC220V DC24V CA25T 1" Dust Collector Pulse Jet Valve Right Angle

AC220V DC24V CA25T 1" Dust Collector Pulse Jet Valve Right Angle

Right Angle threaded solenoid pulse valve is constructed with aluminum alloy body suitable for dust collection applications, in particular for cleaning bag filters.We have three types right angle type with dresser nut DD & manifold mount type MM & Flanged type FS, with different connection form. It is 2-way dust collector valve used for pulsing large volumes of air into filter bags for removal.

Order Code Example:

CA25T

CA:The Pilot Type is Integral Pilot .

25:Valve Size is 25mm, Port Size is G1 Inch .

Dimension of CA25T Goyen Type Pulse Jet Valve:

Video of CA25T Goyen Type Pulse Jet Valve:

Technical data of Right Angle Pulse Jet Valves:

More Goyen Type Pulse Valve For You to Choose:

       Threaded Type                   Immersion Type                Dresser Nut Type             Flanged Type

          RCA Series                          Solenoid Coil                Armature Assembly            Pulse Controller

Working Principles:

The electromagnetic pulse valve is composed of electromagnetic pilot operator, diaphragm and valve body. Due to difference of pressure acting on two sides of the diaphragm, the diaphragm is pressed closely against the outlet of valve to keep the valve stays in “closed” position.

When energized by an electric signal from the controller, the electromagnetic armature will move to open the discharge opening of back cavity.

The compressed air in back cavity bursts out to relief pressure and pressurized air in front cavity pushes up the diaphragm to open the main outlet of valve, then the electromagnetic pulse valve opens and starts to blow.

When the signal disappears and the spring works immediately to send the pilot operator back to its original position and close the discharging opening. The diaphragm will close the passage by the effect of the pressure in the front cavity and the spring. The pulse valve stops blowing.

The orifice in the diaphragm damps the airflow when the armature is lifting up for releasing the pressure. When the discharge hole closed, the pressure gas will fill into the front cavity to close the passage by the diaphragm. The pulse valve stops blowing.
