| Place of Origin: | China, Ningbo |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | GG80A-F, GG100A-F |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Box, Carton, Pallet |
| Delivery Time: | 4 to 7 days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 100000 pcs per month |
| Product Name: | Irrigation Solenoid Valve | Port Size: | 3'', 4'' |
|---|---|---|---|
| Orifice Size: | 80mm, 100mm | Pipe Connection: | Flanged |
| Body Material: | Plastic (Nylon) | Diaphragm Material: | NBR (Standard), EPDM (Optional) |
| Standard Coil Voltage: | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC | Latching Coil Voltage: | DC9-20V, Pulse Width (20-500mSec) |
| Pressure Range: | 1 To 10 Bar | Function: | 2 Way Normally Closed |
| Manual Flow Regulator: | With | ||
| High Light: | 3'' Irrigation Solenoid Valve,4'' Irrigation Solenoid Valve,Solenoid Valve Used In Irrigation System |
||

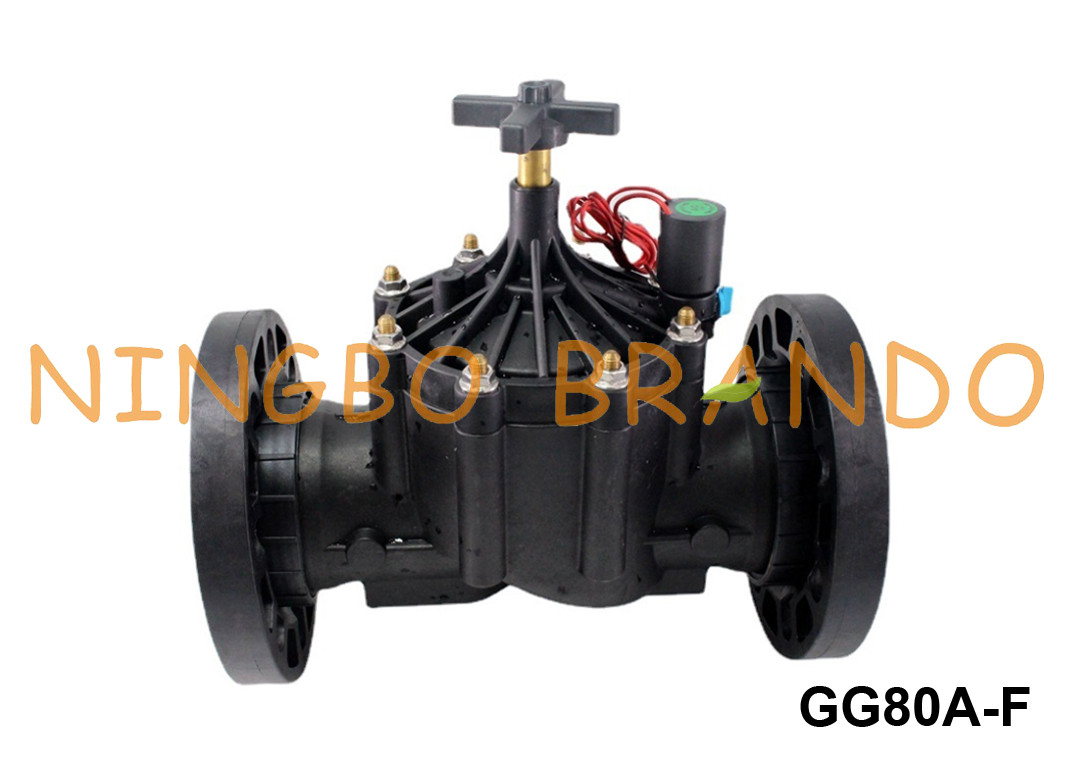

3'' 4'' Flanged Irrigation Water Solenoid Valve 12VDC 24VDC 24VAC 110VAC 220VAC
A water irrigation solenoid valve is an electrically controlled valve to regulate the flow of water. By applying a voltage over the coil, the valve opens and the liquid can flow through. They have a robust construction and are optionally equipped with manual flow control, so the desired flow can be adjusted. Most models have an override function, the valve can be opened manually if needed. Furthermore, they are equipped with a dirt particle filter. Our irrigation solenoid valves are available with a wide selection of control voltages: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC.
Technical Data of Irrigation Solenoid Valve:
|
Model No
|
GG40A
|
GG50A
|
GG80A
|
GG100A
|
|
Orifice Size
|
40mm
|
50mm
|
80mm
|
100mm
|
|
Port Size
|
1 1/2''
|
2''
|
3''
|
4''
|
|
Max. Flow Range
|
21m³/h
|
34m³/h
|
60m³/h
|
120m³/h
|
|
Pipe Connection
|
Female Threaded
|
Female Threaded (Standard)
Flanged (Optional)
|
||
|
Working Pressure
|
1 to 10 bar
|
|||
|
Coil Voltage
|
Standard Coil: 220VAC, 110VAC, 24VAC, 24VDC, 12VDC, 9VDC (Optional)
Latching Coil: DC9-20V, Pulse Width (20 to 500mSec)
|
|||
|
Body Material
|
Plastic (Nylon)
|
|||
|
Diaphragm Material
|
NBR (Standard), EPDM (Optional)
|
|||
|
Operation
|
Diaphragm Pilot Operated
|
|||
|
Manual Flow Control
|
With
|
|||
Main Dimension of Irrigation Solenoid Valve:
|
Model Number
|
L
|
W
|
H
|
|
GG40A
|
168mm
|
85mm
|
202mm
|
|
GG50A
|
198mm
|
119mm
|
252mm
|
|
GG80A
|
308mm
|
160mm
|
255mm
|
|
GG100A
|
412mm
|
238mm
|
335mm
|
More Irrigation Solenoid Valves for you to choose:
|
|
|
| 3/8'' to 1'' | 3/4'' to 1 1/2'' | 2'' to 6'' |
|
|
|
| 1 1/2'' to 2'' | 3'' to 4'' |
3/4'' to 1 1/2'' (Normally Open) |
|
|
|
| 3'' to 10'' | 3/4'' to 1 1/2'' (Pressure Reducing) |
3/4'' to 1 1/2''
(Pressure Reducing) |
