| Place of Origin: | China, Ningbo |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | MD01-25, MD02-25, MD01-25M |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plastic bag, Box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 100000 sets per month |
| Product Name: | Pulse Valve Diaphragm | Diaphragm Material: | NBR |
|---|---|---|---|
| Seat Material: | Nylon | 1 Set: | 1pc Diaphragm, 1pc Spring |
| Fitted Pulse Valve Port: | 1'' | Fitted Pulse Valve Model: | TH-5825-B, TH-4825-B, TH-5825-C, TH-4825-C, TH-5840-F, TH-4840-F, TH-5825-M |
| High Light: | MD01-25 Nitrile Diaphragm,1'' Nitrile Diaphragm,Taeha MD01-25 |
||

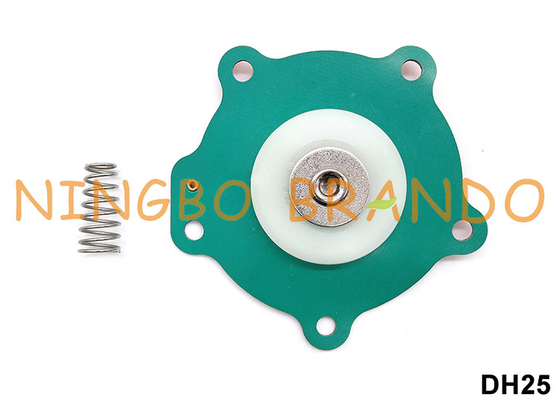

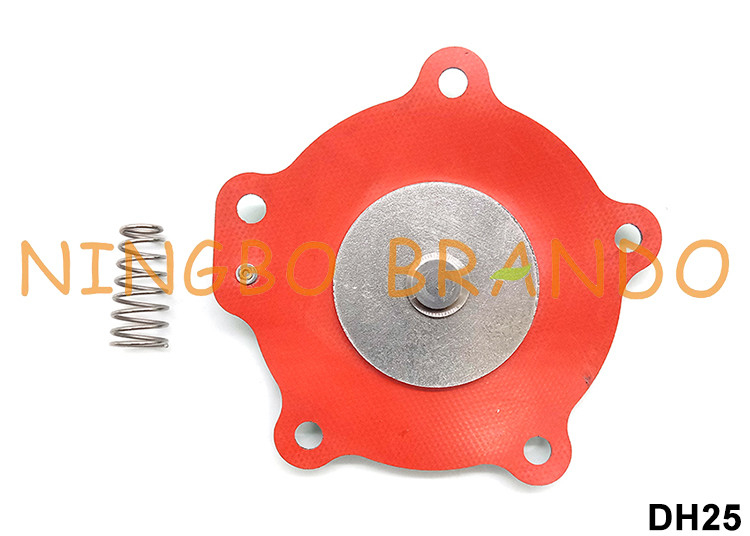

MD01-25 1'' Nitrile Diaphragm For Taeha Pulse Jet Valve TH-4825-B
MD01-25, MD02-25, MD01-25M Diaphragm (Membrane) for Taeha pulse valve TH-5825-B, TH-4825-B, TH-5825-C, TH-4825-C, TH-5840-F, TH-4840-F, TH-5825-M; Pulse valves are operated by integral solenoid pilot operator. When the valve is energised, the trapped air above pulse valve diaphgram is quickly exhausted causing fast opening of main diaphragm valve. When the pilot operated valve is de - energised , air escapes through bleed hole of main pulse valve to balance the diaphragm pressure and instantly closes the valve.
Ordering Code of Diaphragm For Taeha Pulse Valve:
|
BRANDO Model
|
Reference Number
|
Port Size
|
Fitted Pulse Valve Model
|
Color
|
Material
|
|
DH20
|
MD01-20
MD02-20
|
3/4''
|
TH-5820-B
TH-4820-B
TH-5825-B
TH-5820-C
TH-4820-C
|
Red & Green
|
NBR
|
|
DH25
|
MD01-25
MD02-25
|
1''
|
TH-4825-B
TH-5825-C
TH-4825-C
TH-5840-F
TH-4840-F
|
||
|
DH25M
|
MD01-25M
|
1''
|
TH-5825-M
|
||
|
DH40
|
MD01-40
MD02-40
MD03-40
|
1 1/2''
|
TH-5840-B
TH-5440-B
TH-4840-B
TH-4440-B
TH-5840-C
TH-5440-C
TH-4840-C
TH-4440-C
TH-5850-F
TH-5450-F
TH-4850-F
TH-4450-F
|
||
|
DH40M
|
MD03-40M
|
1 1/2''
|
TH-5440-M
TH-4440-M
|
||
|
DH50
|
MD03-50
|
2''
|
TH-5450-B
TH-4450-B
|
||
|
DH50M
|
MD03-50M
|
2''
|
TH-5450-M
TH-4450-M
|
||
|
DH60
|
MD03-60
MD04-60
|
2 1/2''
|
TH-5460-B
TH-4460-B
TH-5460-S
TH-4460-S
|
||
|
DH75
|
MD03-75
|
3''
|
TH-5475-B
TH-4475-B
|
||
|
DH75M
|
MD03-75M
|
3''
|
TH-5475-M
TH-4475-M
|
Dimension of MD01-25, MD02-25, MD01-25M Diaphragm:
Video of MD01-25, MD02-25, MD01-25M Diaphragm:
Pictures of Solenoid Valve Membrane Production:
