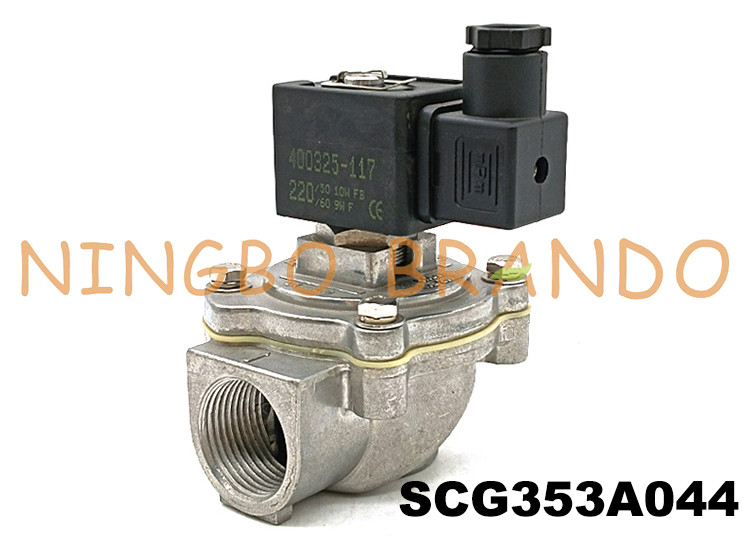

1" SCG353A044 ASCO Type Right Angle Pulse Jet Valve 353 Series For Baghouse

1" SCG353A044 ASCO Type Right Angle Pulse Jet Valve 353 Series For Baghouse

  • 1" SCG353A044 ASCO Type Right Angle Pulse Jet Valve 353 Series For Baghouse
1" SCG353A044 ASCO Type Right Angle Pulse Jet Valve 353 Series For Baghouse
Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Brando
Certification: CE, ISO
Model Number: SCG353A044
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Inner Box, Carton, Pallet
Delivery Time: 4 to 7 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 100000 Sets Per Month
Contact Now
Detailed Product Description
Port Size: 1 Inch Valve Structure: Threaded Port, Right Angle,
Valve Operation: Diaphragm Pilot Operated Working Pressure Range: 0.35 To 0.85 MPa
Coil Voltage: DC24V, AC110V, AC220V Diaphragm Material: TPE, NBR, FKM
High Light:

Pulse Jet Valve 1 Inch

,

Solenoid Pulse Jet Valve For Dust Removal

,

Pulse Valve 24 Volt

1" SCG353A044 ASCO Type Right Angle Pulse Jet Valve 353 Series For Baghouse



Series 353 is a solenoid pilot operated diaphragm valve specially designed to deliver extremely fast pulsing in reverse-jet dust collector systems.The coil in the solenoid valve body is input with a pulse signal through a wire. The pulse valve is controlled by the output signal of the pulse injection controller. The rubber diaphragm is flexed and deformed by the pressure change of the front and rear air chambers of the valve to realize the opening and closing of the pulse valve.



Dimension of SCG353A044 Dust Collector Pulse Valve:

1" SCG353A044 ASCO Type Right Angle Pulse Jet Valve 353 Series For Baghouse 0



Specification of Threaded Pulse Jet Valves:

Model
SCG353A043
SCG353A044
SCG353A047
SCG353A050
SCG353A051
Port Size
3/4''
1''
1 1/2''
2''
2 1/2''
Voltages
24VDC, 24VAC, 110VAC, 220VAC
Diaphragm Number
1
2
Working Pressure Range
0.35 to 0.85 MPa
Diaphragm Material
TPE, NBR, FKM
Fluids
Air
Valve Structure
Right Angle, Threaded Port



Video of SCG353A044 Pulse Jet Valve:



More ASCO Type Pulse Valves for you to choose:

1" SCG353A044 ASCO Type Right Angle Pulse Jet Valve 353 Series For Baghouse 1 1" SCG353A044 ASCO Type Right Angle Pulse Jet Valve 353 Series For Baghouse 2 1" SCG353A044 ASCO Type Right Angle Pulse Jet Valve 353 Series For Baghouse 3 1" SCG353A044 ASCO Type Right Angle Pulse Jet Valve 353 Series For Baghouse 4
Threaded Type Remote Pilot Type Straight Through Type Submerged Type
1" SCG353A044 ASCO Type Right Angle Pulse Jet Valve 353 Series For Baghouse 5 1" SCG353A044 ASCO Type Right Angle Pulse Jet Valve 353 Series For Baghouse 6 1" SCG353A044 ASCO Type Right Angle Pulse Jet Valve 353 Series For Baghouse 7 1" SCG353A044 ASCO Type Right Angle Pulse Jet Valve 353 Series For Baghouse 8
Diaphragm Solenoid Coil Solenoid Armature Pulse Controller
