| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE, ISO |
| Model Number: | D40 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plastic Bag, Inner Box, Carton, Pallet |
| Delivery Time: | 4 to 7 days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 100000 sets per month |
| Diaphragm Materia: | Rubber, Nylon | 1 Set: | 1x Big Diaphragm, 1x Small Diaphragm, 2x Springs |
|---|---|---|---|
| Fitted Pulse Valve Port Size: | 1 1/2 Inch | Product Name: | Pulse Valve Diaphragm |
| Diaphragm Material: | NBR, Viton | Fitted Pulse Valve Model: | DMF-Z-40S, DMF-ZM-40S, DMF-Y-40S, DMF-ZF-40S |
| High Light: | 1.5 Inch Diaphragm Repair Kit,Dust Collector Valve Membrane,Rubber Diaphragm Repair Kit |
||

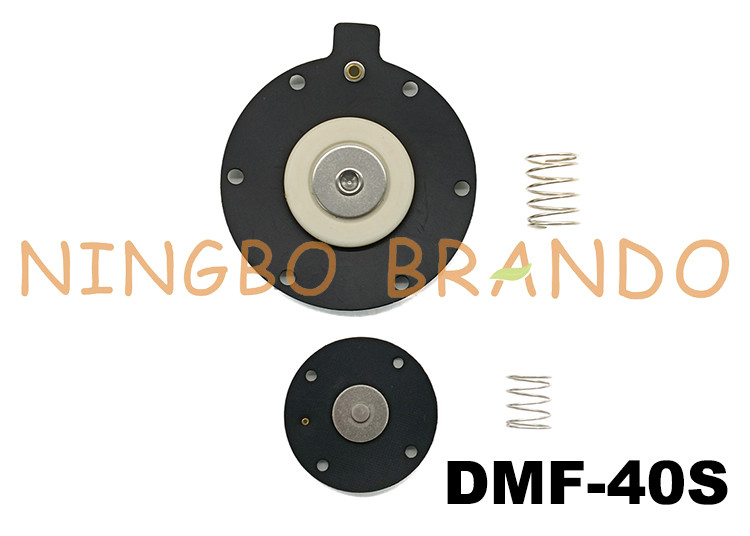

Diaphragm Repair Kit For SBFEC Pulse Valve DMF-Z-40S DMF-ZM-40S DMF-Y-40S
Diaphragm Valve is a special type of cut-off Valve, the opening and closing part is a Diaphragm made of soft material, which separates the body cavity from the cover cavity. Due to the limitations of body lining technology and diaphragm manufacturing process, larger body lining and larger diaphragm manufacturing process are difficult, so diaphragm valve should not be used for larger pipe diameter, due to the limitations of diaphragm material, diaphragm valve is suitable for low pressure and temperature is not high occasions. Generally do not exceed 180℃.
Ordering Number of Diaphragm For SBFEC Pulse Valve:
|
Diaphragm For New Version BFEC Pulse Valves
|
||
|
Diaphragm Order Code
|
Fitted Pulse Valve Model
|
Valve Port Size
|
|
DTY
(Secondary Diaphragm)
|
All Double Diaphragm Pulse Valves
|
/
|
|
D20A
|
DMF-Z20
|
3/4''
|
|
DMF-ZM-20
|
||
|
D20B
|
DMF-ZL-B
|
3/4''
|
|
D25
|
DMF-Z-25
|
1''
|
|
DMF-ZM-25
|
||
|
DMF-Y-25
|
||
|
DMF-T-20
|
3/4''
|
|
|
D40
|
DMF-Z-40S
|
1-1/2''
|
|
DMF-Y-40S
|
||
|
DMF-ZF-40S
|
||
|
DMF-ZM-40S
|
||
|
DMF-T-25S
|
1''
|
|
|
D50
|
DMF-Z-50S
|
2''
|
|
DMF-Y-50S
|
||
|
DMF-T-50S
|
||
|
D62
|
DMF-Z-62S
|
2-1/2''
|
|
DMF-Y-62S
|
||
|
DMF-T-62S
|
||
|
D76
|
DMF-Z-76S
|
3''
|
|
DMF-Y-76S
|
||
|
D102
|
DMF-Z-102S
|
4''
|
|
DMF-Y-102S
|
||
|
D102A
|
DMF-Y-102SA
|
4''
|
|
D300
|
DMF-N-300
|
12''
|
|
Diaphragm For Old Version BFEC Pulse Valves
|
||
|
LD50
|
DMF-Z-50S (Old)
|
2''
|
|
DMF-Y-50S (Old)
|
||
|
DMF-T-50S (Old)
|
||
|
LD62
|
DMF-Z-62S (Old)
|
2-1/2''
|
|
DMF-Y-62S (Old)
|
||
|
DMF-T-62S (Old)
|
||
|
LD76
|
DMF-Z-76S (Old)
|
3''
|
|
DMF-Y-76S (Old)
|
||
Main Dimension of D40 Diaphragm For BFEC Pulse Valve:
Video of D40 Diaphgram For BFEC Pulse Valve:
Pictures of Pulse Valve Diaphragm Production:
