| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE, ISO |
| Model Number: | CA25DD |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Inner Box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | T/T, Western Union, PayPal |
| Supply Ability: | 10000 pcs per month |
| Port Size: | 1 Inch | Valve Series: | DD Series |
|---|---|---|---|
| Valve Structure:: | Dresser Nut | Coil Voltages: | DC24V, AC110V, AC220V |
| Diaphragm Material: | NBR, FKM | Working Pressure Range: | 0.35 To 0.85 MPa |
| High Light: | 1 Inch Pulse Jet Valve,Pulse Jet Valve DD Series,Solenoid Pulse Valve For Bag Filter |
||

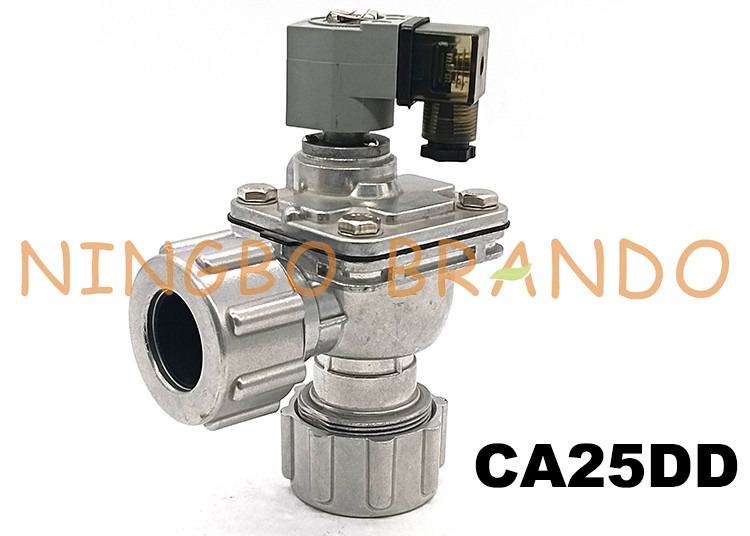

CA25DD 1'' Goyen Type Pulse Jet Valve Dresser Nut DD Series For Baghouse
DD series pulse jet valve is with double head inlet and outlet air port high performance diaphragm valve. Optional with solenoid guide valve
electrically controlled pulse valve or pneumatic pulse valve without pilot valve. These include all bag filters, cartridge filters, envelope filters, ceramic filters and sintered metal fiber filters.
Specification of DD Series Pulse Jet Valves:
|
Model No
|
CA20DD
|
CA25DD
|
CA45DD
|
|
Port Size
|
3/4''
|
1''
|
1 1/2''
|
|
Pipe Connection
|
Dresser Nut
|
||
|
Diaphragm Number
|
1
|
1
|
2
|
|
Working Pressure Range
|
0.35 to 0.85 MPa (5 to 125 PSI)
|
||
|
Diaphragm Material
|
NBR, FKM, EPDM
|
||
|
Valve Body Material
|
Aluminum Alloy
|
||
Main Dimension of CA25DD Pulse Jet Valve:
Ordering Code of DD Series Pulse Jet Valve:
Video of CA25DD Pulse Jet Valve:
More Goyen Type Pulse Jet Valves for you to choose:
|
|
|
|
| T Series | DD Series | FS Series | MM Series |
|
|
|
|
| RCA Series | Solenoid Coil | Solenoid Armature | Diaphragm |
