| Place of Origin: | China, Ningbo |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | 3-12V12 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Inner Box, Carton, Pallet |
| Delivery Time: | 4-7 working days |
| Payment Terms: | T/T, PayPal, Western Union |
| Supply Ability: | 10000pcs per month |
| Product Name: | Pilot Valve Enclosure | Port Size: | 1/8'' |
|---|---|---|---|
| Thread Type: | NPT, BSPP | Enclosure Body Material: | Aluminum (diecast) |
| Seal Material: | NBR, VITON | Operating Pressure Range: | 0 To 125 Psi |
| Enclosure Size: | 12 | Supply Voltage: | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC |
| High Light: | Goyen Enclosures,Goyen Solenoid Pilot Valve Enclosure,Goyen 3-12V |
||

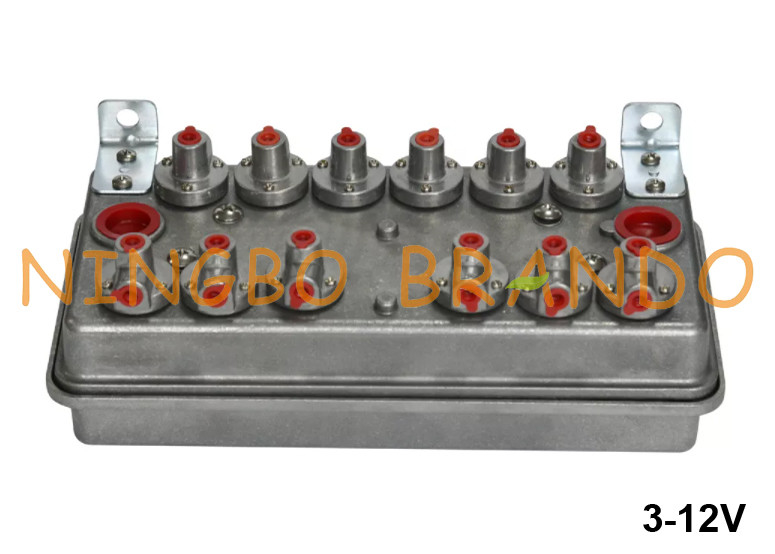

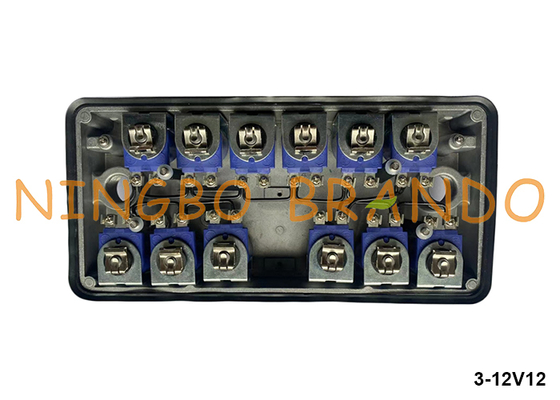

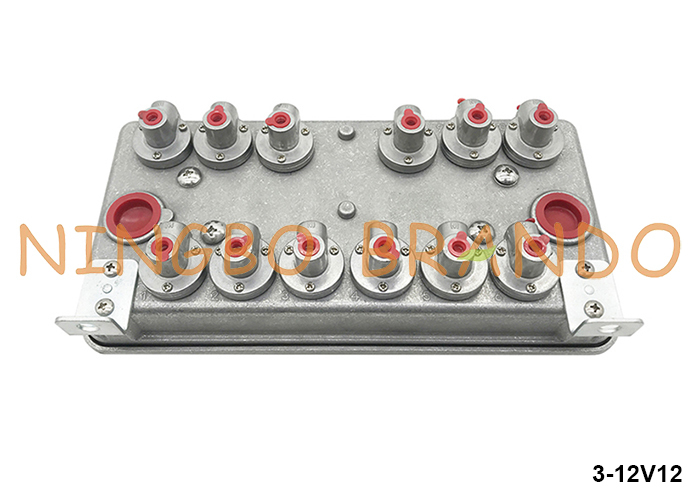

3-12V Diecast Aluminium Enclosure For Goyen RCA3D Pilot Solenoid Valve
Diecast aluminum enclosures for Goyen RCA3D pilot valves. The enclosures for non-hazardous locations offer reliable protection for your pilot valves and remote actuators. The enclosures were specifically designed for convenient piloting of dust collector cleaning system pulse jet valves. Ensure device is disconnected from power before opening the enclosure. For reliable operation, ensure supply voltage is within -10% and +15% of rated solenoid voltage.
Main Dimension of 3-12V Pilot Valve Enclosure:
Ordering Code of RCA3D Pilot Valve Enclosure:
Technical Data of RCA3D Solenoid Pilot Valve:
|
Model
|
Port Size
|
Coil Type
|
Voltage
|
Power
|
|
RCA3D0-330
(Old RCA3D2-T-QT/1392B)
|
1/8'' NPT
|
Screw / Spade
|
200/240V 50/60Hz
|
17.4/22.6VA
|
|
RCA3D0-331
(Old RCA3D2-T-QT/1004B)
|
100/120V 50/60Hz
|
15.2/149.7VA
|
||
|
RCA3D0-332
|
24V 50/60Hz
|
23.1/17.2VA
|
||
|
RCA3D0-333
|
240V DC
|
24W
|
||
|
RCA3D0-334
|
110V DC
|
24W
|
||
|
RCA3D0-335
|
48V DC
|
20W
|
||
|
RCA3D0-336
(Old RCA3D2-T-QT/764B)
|
24V DC
|
20W
|
||
|
RCA3D0-337
(Old RCA3D2-T-QT/1295B)
|
12V DC
|
20W
|
||
|
RCA3D1-330
(Old RCA3D2-T-QT/880B)
|
1/8'' BSPP
|
200/240V 50/60Hz
|
17.4/22.6VA
|
|
|
RCA3D1-331
(Old RCA3D2-T-QT/869B)
|
100/120V 50/60Hz
|
15.2/149.7VA
|
||
|
RCA3D1-332
(Old RCA3D2-T-QT/1117B)
|
24V 50/60Hz
|
23.1/17.2VA
|
||
|
RCA3D1-333
|
240V DC
|
24W
|
||
|
RCA3D1-334
|
110V DC
|
24W
|
||
|
RCA3D1-335
|
48V DC
|
20W
|
||
|
RCA3D1-336
(Old RCA3D2-T-QT/1051B)
|
24V DC
|
20W
|
||
|
RCA3D1-337
|
12V DC
|
20W
|
More Goyen Type Pulse Valves for you to choose:
|
|
|
|
| T Series | DD Series | FS Series | MM Series |
|
|
|
|
| RCA Series | Solenoid Coil | Solenoid Armature | Diaphragm |
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
