| Place of Origin: | Ningbo, China |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | G353A049 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | T/T, PayPal, Western Union |
| Supply Ability: | 50000pcs per month |
| Product Name: | Pulse Jet Valve | Valve Structure: | Right Angle, Threaded Port |
|---|---|---|---|
| Remote Pilot Connection: | 1/4'' | Port Size: | 2 1/2'' |
| Orifice Size: | 66mm | Diaphragm Material: | NBR, VITON |
| Working Pressure Range: | 0.35 To 8.5 Bar | Application: | Dust Collector |
| High Light: | ASCO Pulse Valve 2 1/2'',ASCO Pulse Valve G353A049,ASCO G353A049 |
||

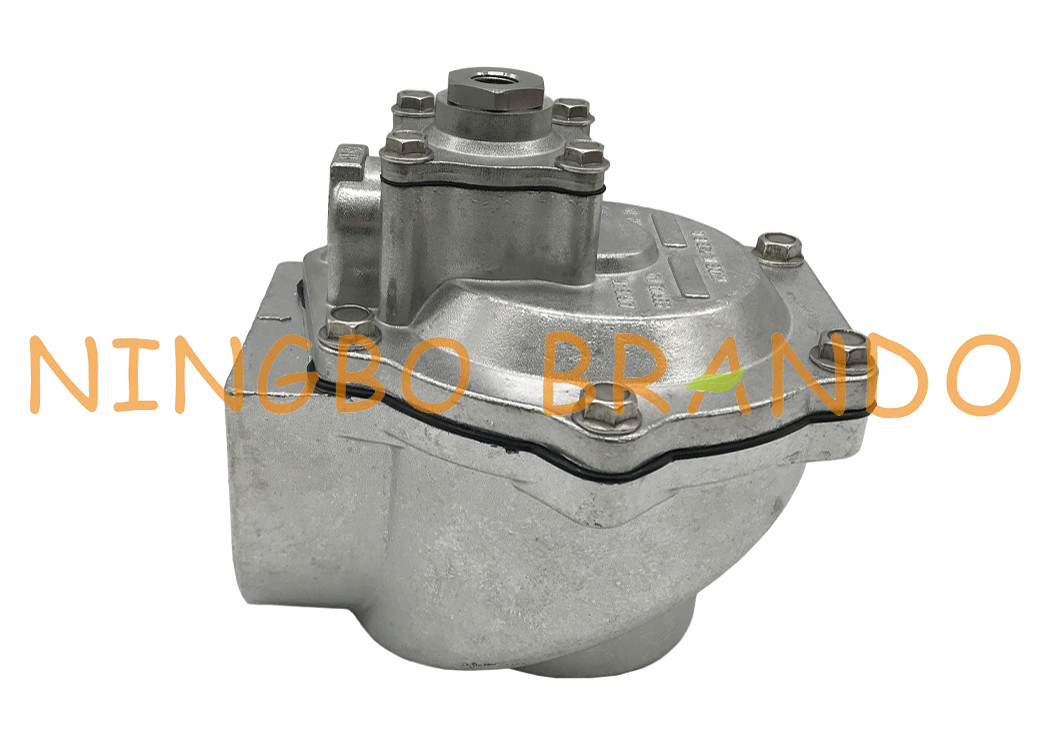

2 1/2'' G353A049 ASCO Type Remote Pilot Pulse Valve For Dust Removal
Pulse Jet Valve, also called pulse diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the pulse controller. Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. They are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.
Different designs of pulse jet valves:
1. Right Angle Type
2. Embedded Type
3. Fixed Nut Type
4. Straight Through Type
5. Flanged Type
Dimension of G353A049 Pulse Valve:
Technical Data of 353 Series Remote Pilot Pulse Valve:
|
Port Size
|
Remote Pilot Connection
|
Orifice Size
(mm)
|
Kv
|
Operating Pressure Differential (bar)
|
Model Number
|
|
|
(m³/h)
|
(l/min)
|
|||||
|
threaded pipe connection
|
||||||
|
G3/4''
|
G1/8''
|
24
|
14
|
233
|
0.35 to 8.5
|
G353A041
|
|
G1''
|
G1/8''
|
27
|
17
|
283
|
0.35 to 8.5
|
G353A042
|
|
G1 1/2''
|
G1/4''
|
52
|
46
|
768
|
0.35 to 8.5
|
G353A045
(Single Stage)
|
|
G1 1/2''
|
G1/8''
|
50
|
46
|
768
|
0.35 to 8.5
|
G353A046
(Dual Stage) |
|
G2''
|
G1/4''
|
66
|
77
|
1290
|
0.35 to 8.5
|
G353A048
|
|
G2 1/2''
|
G1/4''
|
66
|
92
|
1540
|
0.35 to 8.5
|
G353A049
|
