| Place of Origin: | China, Ningbo |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | VNP208 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plastic bag, Box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100000 pcs per month |
| Product Name: | Pulse Jet Valve | Port Size: | 1'' |
|---|---|---|---|
| Series: | 200 Series | Membrane Material: | NBR, VITON |
| Operating Pressure Range: | 0.05 To 0.75 MPa | Supply Voltage: | 24VDC, 24VAC, 110VAC, 220VAC |
| High Light: | Mecair Pulse Valve 1'',Mecair Pulse Jet Valve,VNP208 Mecair |
||

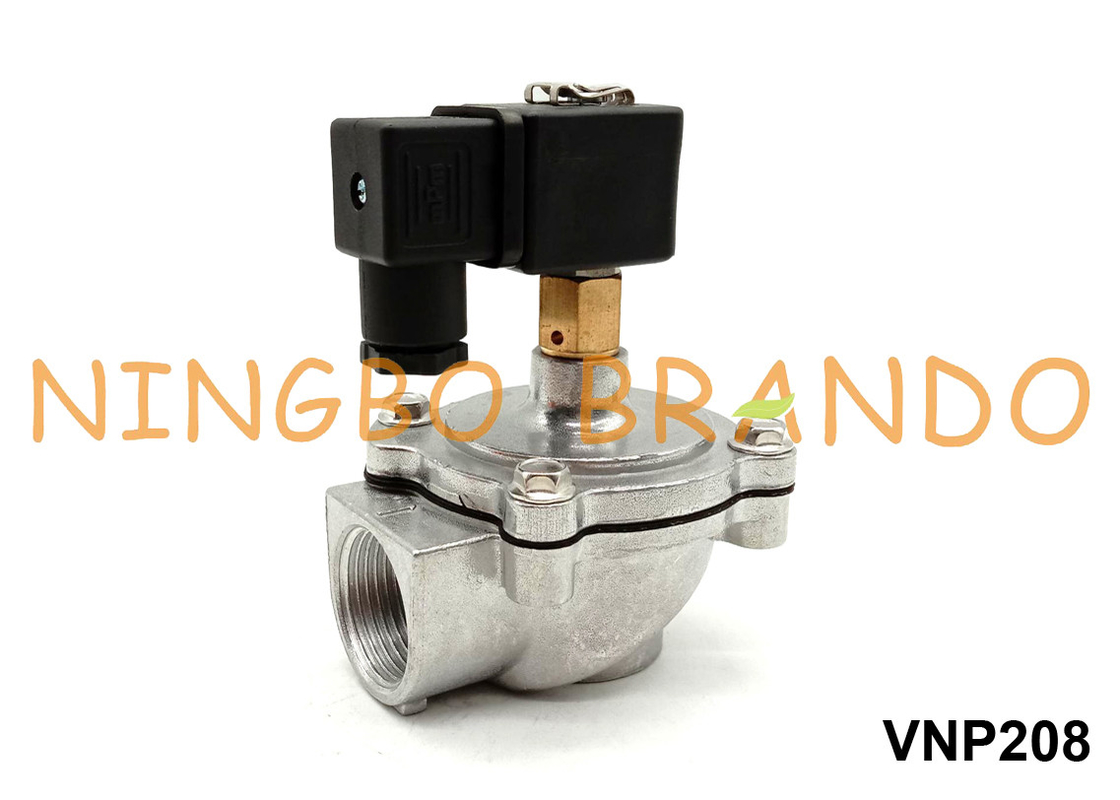

Mecair Type 200 Series Threaded Pulse Jet Valve 1'' VNP208 24V 220V
The 200 series is a range of pulse jet valve suitable for dust collector applications, in particular for reverse pulse jet filter cleaning of filter bags, cartridges, envelope filters, ceramic filters and sintered metal fibre filters. The 200 Series valve has the inlet port at 90° to the outlet port. The 200 Series range comprises 7 models, from 3/4" to 3", all with threaded female gas connections. The 1 1/2" model is available in the single and double diaphragm versions, while the 2", 21/2" and 3" are all double diaphragm valves. The special design assures an extremely fast opening time, high flow rates and easy installation. The valves are constructed in die-cast aluminium and have an anodised protection treatment which protect them from corrosive and environmental agents.
Technical Data of 200 Series Threaded Pulse Jet Valves:
|
Model
|
VNP206
|
VNP208
|
VNP212
|
VNP214
|
VNP216
|
VNP220
|
|
Port Size
|
3/4''
|
1''
|
1 1/2''
|
1 1/2''
|
2''
|
2 1/2''
|
|
Valve Structure
|
90° Right Angle
|
|||||
|
Pipe Connection
|
Threaded
|
|||||
|
Body Material
|
Aluminum Alloy
|
|||||
|
Diaphragm Material
|
NBR, FKM
|
|||||
|
Working Pressure
|
0.5 to 7.5 bar
|
|||||
|
Voltage
|
24VDC, 24VAC, 110VAC, 220VAC
|
|||||
Dimension of VNP208 Pulse Jet Valve:
Video of VNP208 Pulse Jet Valve:
