| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | G353A041 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | inner boxes,cartons,pallets |
| Delivery Time: | 7 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100000 pcs per month |
| Type: | Right Angle Type Diaphragm Valve | Power: | Pneumatic |
|---|---|---|---|
| Media: | Air | Port Size: | 3/4'' Inch |
| Structure: | Diaphragm | Body Material: | Aluminum Alloy |
| Diaphragm Material: | NBR(Common), FKM(Available) | Number Of Diaphragm: | 1 |
| Pressure: | 0.1 To 0.8MPa | Temperature: | -25 To +80℃ |
| High Light: | 3/4'' Pulse Jet Valve,Threaded Pulse Jet Valve,ASCO G353A041 |
||

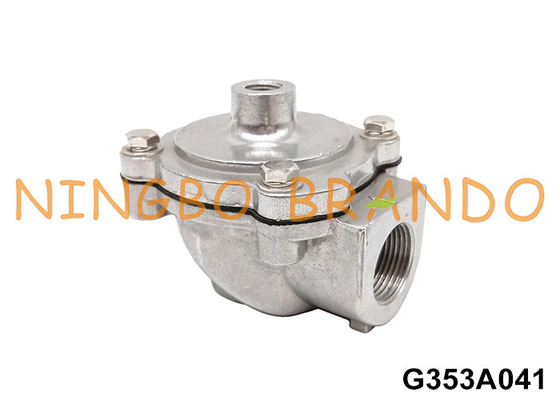

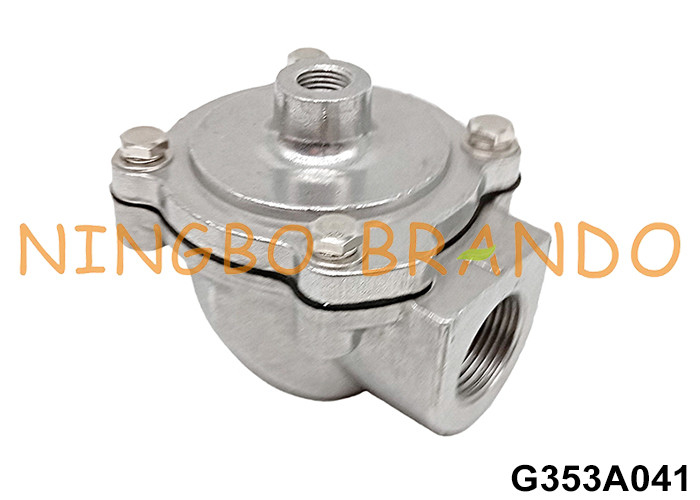

G353A041 3/4'' Threaded Dust Collector Pulse Jet Valve For Bag Filter
This is G353A041 ASCO Type Pulse Jet Valve, 3/4'' inlet and outlet threaded port size, Remote Pilot, NBR or TPE diaphragm for you to choose, 24V DC, 110V AC, 220V AC voltages for you to choose, other voltages can be customized.
The electromagnetic pulse valve is a key component of the pulse bag type dust collector. It is called the [heart" of the pulse bag type dust collector, and its performance directly affects the operation effect of the dust collector. Ensure the installation and commissioning of the pulse solenoid valve of the dust removal system can improve the purification efficiency of the bag filter, thereby improving the environment, preventing air pollution and providing environmental protection.
353 Series Pulse Jet Valve:
1. Threaded Pulse Jet Valve: SCG353A043, SCG353A044, SCG353A047, SCG353A050, SCG353A051
2. Remote Pilot Pulse Jet Valve: G353A041, G353A042, G353A045
3. Immersion Pulse Jet Valve: SCXE353.060
Technical Data of ASCO Pulse Jet Valve:
Main Dimension:
353 Series Pulse Jet Valve For Dust Collector System:
FEATURES
• The diaphragm pulse valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to produce reliable and economical operation
• The high flow, angle type bodies in combination with the special main diaphragm assemblies give the unique operating features required for dust tcollector service applications
• Integral compression fittings for fast, easy, secure installation
• Valves can be supplied according to ATEX Directive 2014/34/EU for non-electrical equipment
• The valves satisfy all relevant EC directives
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
