| Place of Origin: | China, Ningbo |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | R100 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 200000 pcs per month |
| Product Name: | Pneumatic Roller Vibrator | Rated Frequency: | 10000 To 36000 RPM |
|---|---|---|---|
| Centrifugal Force: | 1070 To 12500 N | Working Temperature: | Up To 150℃ |
| Length: | 160mm | Width: | 52mm |
| Height: | 100mm | Port Size: | 3/8'' |
| High Light: | Pneumatic Vibrator R100,Pneumatic Roller Vibrators,Findeva R-100 |
||

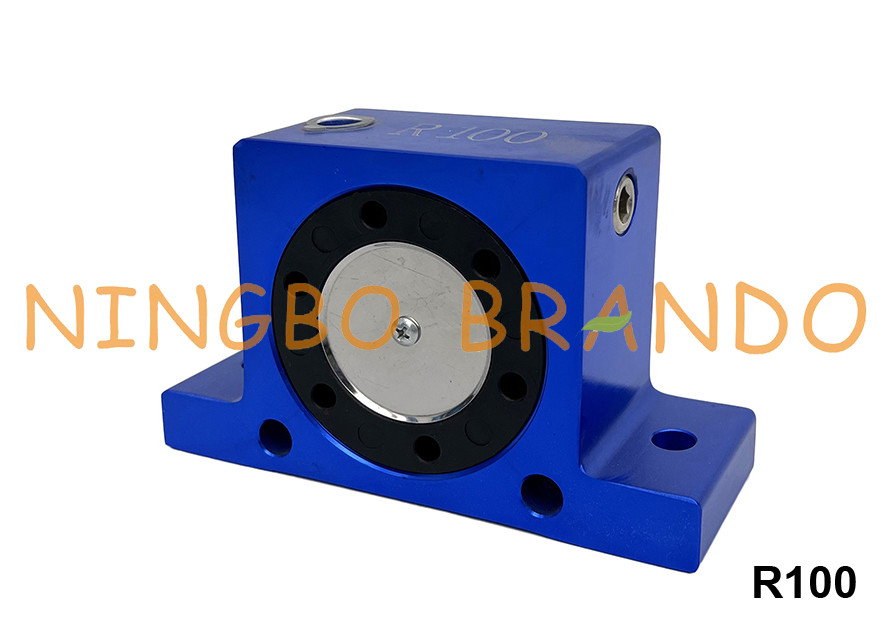

R100 Findeva Type Pneumatic Roller Vibrator For Bin Hopper Silos
These compact pneumatic roller vibrators are simple in design and yet capable of delivering very high centrifugal forces. The Pneumatic Roller Vibrator body is machined from an extruded aluminium section, inside of which a precision steel roller rotates, it is retained by two special high impact plastic end plates. For easy mounting, the body has four holes, two horizontal and two vertical. Air is introduced through one of two inlet ports drilled at right angles to each other in the body. These inlet ports are tapped with a standard pipe thread and a pipe plug is provided for sealing the one not used. The air is exhausted through the special high impact plastic end plates whose design incorporates an air silencer.
Main Dimension of R Series Pneumatic Roller Vibrators:
|
Model
|
A
(mm)
|
Width
(mm)
|
C
(mm)
|
D
(mm)
|
E
(mm)
|
F
(mm)
|
G
(mm)
|
H
(Thread)
|
|
R-50
|
50
|
29
|
86
|
68
|
12
|
7
|
40
|
G1/8''
|
|
R-65
|
65
|
37
|
113
|
90
|
16
|
9
|
50
|
G1/4''
|
|
R-80
|
80
|
43
|
128
|
104
|
16
|
9
|
60
|
G1/4''
|
|
R-100
|
100
|
52
|
160
|
130
|
20
|
11
|
80
|
G3/8''
|
|
R-120
|
120
|
77
|
194
|
152
|
24
|
17
|
-
|
G3/8''
|
Technical Data of R Series Pneumatic Roller Vibrators:
|
Model
|
Vibrations
(x1000 RPM)
|
Centrifugal Force
(N)
|
Air Consumption
(l/min)
|
||||||
|
2 bar
|
4 bar
|
6 bar
|
2 bar
|
4 bar
|
6 bar
|
2 bar
|
4 bar
|
6 bar
|
|
|
R-50
|
25.0
|
35.0
|
36.0
|
1070
|
2920
|
4220
|
100
|
145
|
195
|
|
R-65
|
19.0
|
21.0
|
26.0
|
2730
|
4830
|
6120
|
200
|
300
|
400
|
|
R-80
|
15.5
|
18.5
|
19.0
|
3000
|
6090
|
7450
|
290
|
430
|
570
|
|
R-100
|
11.0
|
14.0
|
16.0
|
3750
|
6750
|
8900
|
370
|
550
|
730
|
|
R-120
|
10.0
|
11.5
|
12.5
|
8000
|
10000
|
12500
|
500
|
730
|
970
|
Construction of R Series Pneumatic Roller Vibrators:
