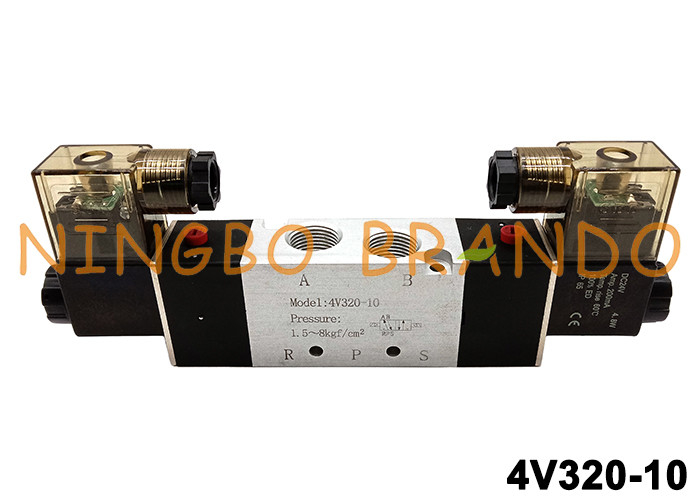

Name: 4V320-10 Airtac Type 3/8'' Pneumatic Solenoid Valve 5/2 Way 24V
Brand: BRANDO
SKU: 4V320-10
Rating: 4.6 (178 reviews)

Home Products Pneumatic Solenoid Valve

4V320-10 Airtac Type 3/8'' Pneumatic Solenoid Valve 5/2 Way 24V

Product Details:

Place of Origin:	China, Ningbo
Brand Name:	BRANDO
Certification:	CE, ISO
Model Number:	4V320-10

Payment & Shipping Terms:

Minimum Order Quantity:	100 PCS
Price:	Negotiation
Packaging Details:	Plastic bag, Box, Carton, Pallet
Delivery Time:	4 to 7 working days
Payment Terms:	L/C, T/T, Western Union, Paypal
Supply Ability:	200000 pcs per month

Contact Now

Detailed Product Description

Product Name:	Pneumatic Solenoid Valve	Fluid:	Air
Port Size:	In=Out=3/8'', Exhaust=1/4''	Valve Type:	5 Port 2 Position
Operating Pressure:	0.15 To 0.8 MPa	Proof Pressure:	1.2MPa
Body Material:	Aluminum Alloy	Coil Voltages:	12VDC, 24VDC, 24VAC, 110VAC, 220VAC
High Light:	4V320-10 Pneumatic Solenoid Valve , Airtac Pneumatic Solenoid Valve , Airtac Valve 4V320-10

4V320-10 Airtac Type 3/8'' Pneumatic Solenoid Valve 5/2 Way 24V

A 5/2 way pneumatic solenoid valve has five ports and two states. They are used for instance to control double acting cylinders. 5/2 way pneumatic solenoid valves can be mono-stable (1 solenoid, spring return) or bi-stable (solenoids). Valves with a Namur configuration have a special flange for direct mounting on a pneumatic actuator. Pneumatic solenoid valves are used to direct or stop the flow of compressed air to their appliances. They can be used for example to actuate a cylinder, a larger industrial valve or air tools.

Brando offers a variety of pneumatic directional control solenoid valves. Pneumatic air solenoid valves are available in two, three and four ways with AC and DC voltages and are suitable for industrial applications. 4V series solenoid valve is mainly used for pneumatic actuator; 4V series has single control and dual control. Thread sizes range from M5 to 1/2 ". 4V series Namur valves are known for their superior quality and stable functionality. Ideal for a variety of pneumatic actuator applications including petrochemicals, pulp and paper, filling equipment, food Processing and water treatment.

Technical Data of 4V300 Series Solenoid Valve:

Model	4V310-08	4V320-08	4V330C-08 4V330E-08 4V330P-08	4V310-10	4V320-10	4V330C-10 4V330E-10 4V330P-10
Fluid	Air (to be filtered by 40 μm filter element)
Acting	internal pilot or external pilot
Port Size	in=out=exhaust=1/4''			in=out=3/8'', exhaust=1/4''
Orifice Size	4V310-10, 4V320-10: 28.0mm² (Cv=1.65) 4V330C-10: 21.3mm² (Cv=1.25)
Vlave Type	5 way 2 position		5 way 3 postion	5 way 2 position		5 way 3 position
Operating Pressure	0.15 to 0.8 MPa (21 to 114 psi)
Proof Pressure	1.2MPa (175psi)
Temperature	-20 to +70℃
Body Material	Aluminum Alloy
Max Frequency	5 cycle/sec		3 cycle/sec	5 cycle/sec		3 cycle/sec
Voltages	12VDC, 24VDC, 24VAC, 110VAC, 220VAC

Main Dimension of 4V320-10 Solenoid Valve:

4V320-10 Airtac Type 3/8'' Pneumatic Solenoid Valve 5/2 Way 24V 0

Video of 4V320-10 Solenoid Valve:

Production Video of Pneumatic Valve:
