| Place of Origin: | China, Ningbo |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | 4V310-08 |
| Minimum Order Quantity: | 200 PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plastic bag, Box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 200000 pcs per month |
| Product Name: | Pneumatic Solenoid Valve | Fluid: | Air |
|---|---|---|---|
| Port Size: | In=Out=Exhaust=1/4'' | Valve Type: | 5 Way 2 Position |
| Operating Pressure: | 0.15 To 0.8 MPa | Proof Pressure: | 1.2MPa |
| Body Material: | Aluminum Alloy | Coil Voltages: | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC |
| High Light: | Airtac Pneumatic Solenoid Valve,Air Control Pneumatic Solenoid Valve,4v310-08 airtac |
||

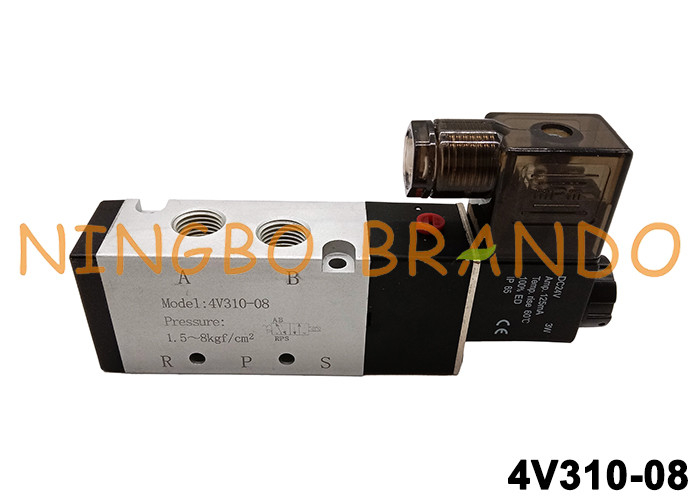

Airtac Type Air Control Pneumatic Solenoid Valve 4V310-08 1/4"
4V310-08 Solenoid Vlave has 1/4″ Inlet, Outlet and Exhaust Port. Five Ports Four Way Two Positions (5/2 way) Solenoid Valve, Normally Closed with Spring Return. Brando designs and manufactures a variety of industrial-grade pneumatic air control valves. These five-way two-position air pilot valves are suitable for a wide range of applications. They are available in single pilot and dual pilot configurations. General purpose pneumatic valve, commonly used in any pneumatic system, where compressed air is also used as a control signal. Pneumatic valves are used to power other equipment, usually cylinders.
Technical Data of 4V300 Series Solenoid Valve:
|
Model
|
4V310-08
|
4V320-08
|
4V330C-08
4V330E-08
4V330P-08
|
4V310-10
|
4V320-10
|
4V330C-10
4V330E-10
4V330P-10
|
|
Fluid
|
Air (to be filtered by 40 μm filter element)
|
|||||
|
Acting
|
internal pilot or external pilot
|
|||||
|
Port Size
|
in=out=exhaust=1/4''
|
in=out=3/8'', exhaust=1/4''
|
||||
|
Orifice Size
|
4V310-10, 4V320-10: 28.0mm² (Cv=1.65)
4V330C-10: 21.3mm² (Cv=1.25)
|
|||||
|
Vlave Type
|
5 way 2 position
|
5 way 3 postion
|
5 way 2 position
|
5 way 3 position
|
||
|
Operating Pressure
|
0.15 to 0.8 MPa (21 to 114 psi)
|
|||||
|
Proof Pressure
|
1.2MPa (175psi)
|
|||||
|
Temperature
|
-20 to +70℃
|
|||||
|
Body Material
|
Aluminum Alloy
|
|||||
|
Max Frequency
|
5 cycle/sec
|
3 cycle/sec
|
5 cycle/sec
|
3 cycle/sec
|
||
|
Voltages
|
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
|
|||||
Main Dimension of 4V310-08 Solenoid Valve:
Video of 4V310-08 Solenoid Valve:
Production Video of Pneumatic Valve:
