| Place of Origin: | China, Ningbo |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | 321H36 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Inner boxes, Carton, Pallet |
| Delivery Time: | 4-8 days |
| Payment Terms: | T/T, PayPal, Western Union |
| Supply Ability: | 100000 pcs per month |
| Working Medium: | Water, Air, Gas | Port Size: | 3/4'' |
|---|---|---|---|
| Orifice Size: | 15mm | Function: | 2 Way, Normally Closed |
| Operation: | Diaphragm Pilot Operated | Body Material: | Brass |
| Pressure Range: | 1.5 To 50 Bar | Voltages: | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz) |
| High Light: | Lucifer Solenoid Valve 321H36,Parker Solenoid Valve 321H36,Parker Lucifer 321H36 |
||

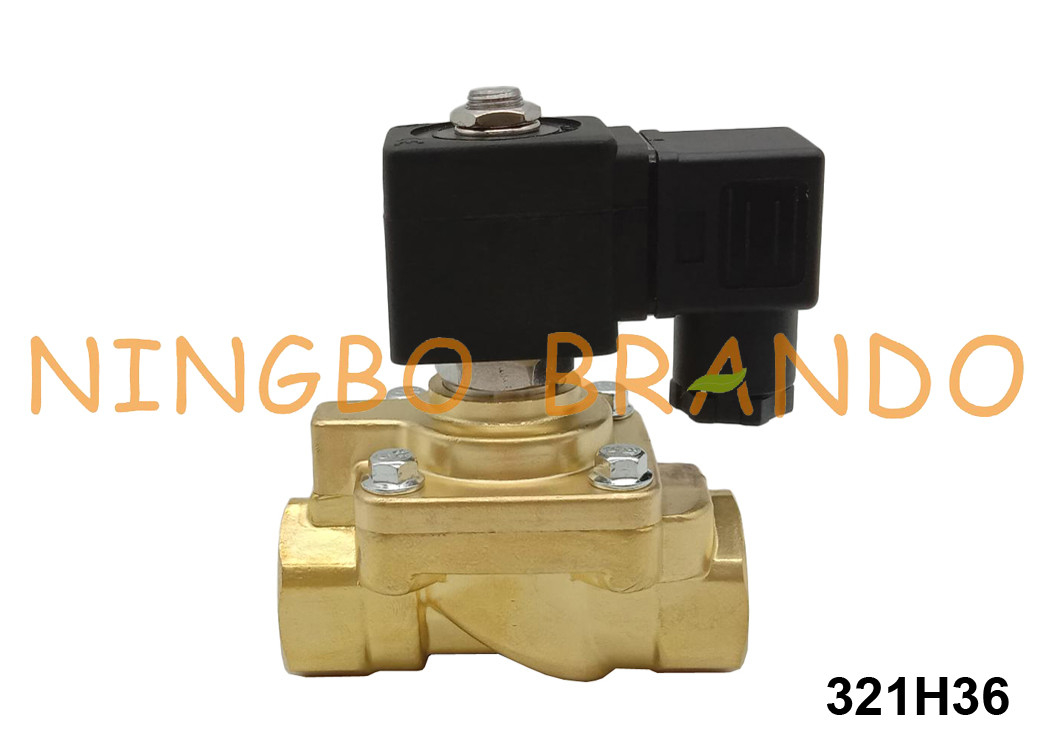

3/4'' 321H36 Parker Type Solenoid Valve High Pressure 40 Bar 24VDC 220VAC
These solenoid valves specially designed for high pressure applications (maximum 50 bar). The life expectancy of several millions of cycles, with response time of few milliseconds, allows the use of these valves on intensive applications and on high technology, as the plastic bottle blowing machines, or the laser cutting machines.
Product Features:
1. Model No: 321H35, 321H36 (Normally Closed); 322H35, 322H36 (Normally Open)
2. Port Size: 1/2'', 3/4''
3. Orifice Size: 15mm
4. Working Medium: Air, Water, Gas, etc
5. Working Pressure: 1.5 to 50 bar
6. Body Material: Brass
7. Operation: Diaphragm Pilot Operated
8. Function: 2 Way Normally Closed, 2 Way Normally Open
9. Coil Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Video of 321H35, 321H36:
Technical Data:
Main Dimension:
|
Model No
|
A
|
B
|
C
|
D
|
L
|
H
|
J
|
K
|
M
|
|
321H35
|
1/2''
|
φ15
|
27
|
15
|
75
|
101
|
72
|
19
|
53
|
|
321H36
|
3/4''
|
φ19
|
32
|
15
|
82
|
107
|
72
|
19
|
53
|
