| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | EVR3-038S |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | inner boxes,cartons,pallets |
| Delivery Time: | 7 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100000 pcs per month |
| Port Size (in): | 3/8'' Inch | Inlet Connection Type: | SOLDER, ODF |
|---|---|---|---|
| Type: | EVR 3 | Valve Operation: | Direct |
| Function: | Normally Closed (NC) | Temperature: | -40~80 °C |
| Body Material: | Brass | Seal Material: | PTFE |
| System Line Application: | Discharge Line, Hot Gas Defrost Line, Liquid Line, Suction Line | Refrigerants: | R22 R404A R407A R407C R125 R134a R152a |
| High Light: | EVR 2 Refrigeration Solenoid Valve,Flare SAE Refrigeration Solenoid Valve,Danfoss Type 032F8056 |
||

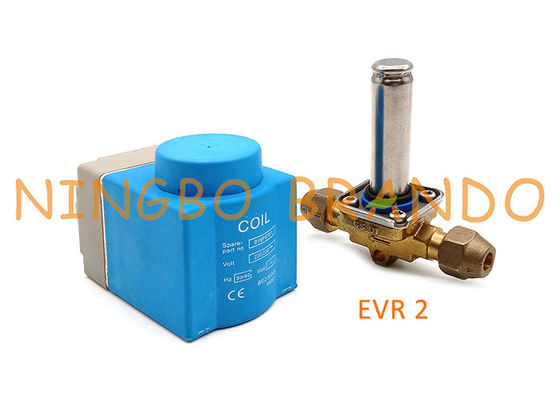

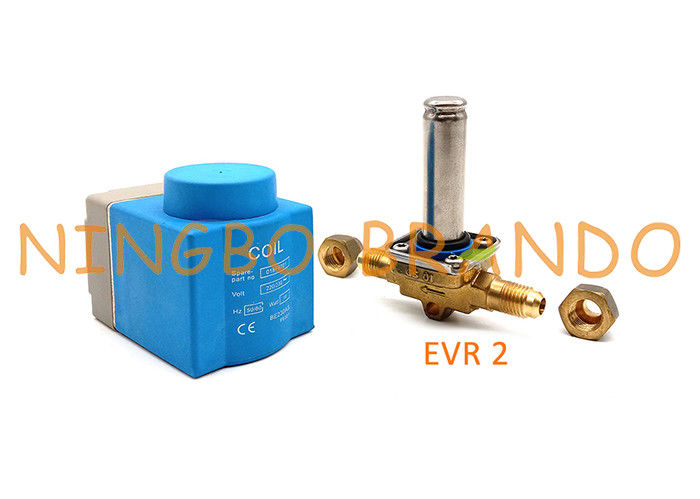

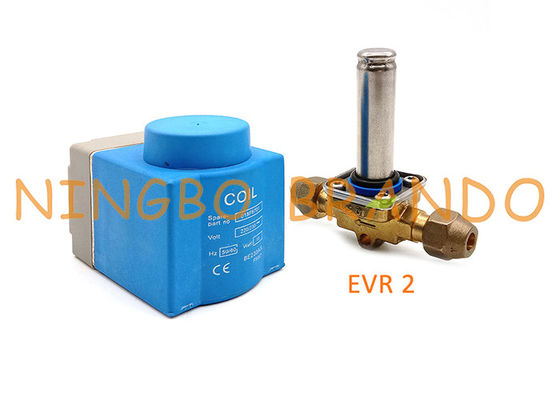

EVR 2 1/4'' 032F8056 6mm Flare SAE Refrigeration Solenoid Valve
Technical Data:
|
Type
|
Current Type
|
Connection Size
|
Max. working pressure
|
Kv valve [m3/h]
|
Cv valve [gal/min]
|
Coder No.
|
||
|
[mm]
|
[in.]
|
[bar]
|
[psi]
|
|||||
|
EVR3
|
a.c./d.c.
|
-
|
1/4
|
45.2
|
655
|
0.27
|
0.32
|
032F1206
|
|
a.c./d.c.
|
-
|
3/8
|
45.2
|
655
|
0.27
|
0.32
|
032F1204
|
|
|
a.c./d.c.
|
6
|
-
|
45.2
|
655
|
0.27
|
0.32
|
032F1207
|
|
|
a.c./d.c.
|
10
|
-
|
45.2
|
655
|
0.27
|
0.32
|
032F1208
|
|
Dimension:
Ice machine ice - making principle
1. Water enters into the storage tank automatically through the inlet valve, and then the water pump enters into the shunt pipe through the water pump. The shunt pipe distributes water evenly to the evaporator cooled by cryogenic liquid refrigerant.
2. Water is cooled to freezing point. The water cooled to freezing will condense into ice, and the water that has not been frozen by the evaporator will flow into the storage tank again, and the pump will resume circulation.
3. When the ice reaches the required thickness, it will enter the deicing state, and the high-pressure hot gas discharged by the compressor will be shunted to the evaporator through the reversing valve to replace the cryogenic liquid refrigerant.
4.This forms a film of water between the ice and the evaporator. The water film separates the ice from the evaporator and the ice falls free into the ice storage tank under the action of gravity.
More Refrigeration Valve:
1. Refrigeration Solenoid Valve:
Danfoss Type: EVR 3, EVR 6, EVR 10, EVR 15, EVR 20, EVR 22, EVR 25, EVR 32, EVR 25, EVRA 25, EVRA 32, EVRA 40;
Castel Type: 1020/2, 1020/3, 1064/3, 1064/4, 1070/4, 1070/5, 1070/6, 1090/5, 1090/6, 1028/2, 1028/3, 1068/3, 1068/4, 1078/4, 1078/5, 1079/7, 1078/9, 1079/11, 1079/7, 1099/11, 1078/11, 1079/13.
2. Refrigerator Solenoid Valve: FDF, SDF ......
3. Expansion Valve: Thermostatic / Thermal Expansion Valve, Automatic Expansion Valve, Electronic Expansion Valve ......
|
|
|
| Danfoss Type Solenoid Valve | Ammonia Refrigeration Valve | Castel Type Solenoid Valve |
|
|
|
| Refrigeration Solenoid Valve Coil | Expansion Valve | Refrigerator Solenoid Valve |
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
