| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | 5404 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | $3 to $50 per pc |
| Packaging Details: | Inner boxes, Carton, Pallet |
| Delivery Time: | 4-8 days |
| Payment Terms: | L/C, T/T, PayPal, Western Union, MoneyGram |
| Supply Ability: | 100000 pcs per month |
| Working Medium: | Neutral Mediums, Compressed Air, Water, Hydraulic Oil And Steam | Port Size: | 3/4'', 1'' |
|---|---|---|---|
| Orifice Size: | 25mm | Operation Mode: | 2 Way, Normally Closed |
| Operation: | Servo Assisted Piston | Body Material: | Brass |
| Seal Material: | PTFE Seat Seal + FKM | Pressure Range: | 3 To 35 Bar |
| Fluid Temperature: | 0°C To +180 °C | Voltages: | 12VDC, 24VDC, 24VAC, 110VAC, 120VAC, 220VAC, 230VAC |
| High Light: | High Pressure High Temperature Solenoid Valve,3/4'' High Pressure Solenoid Valve,High Pressure Normally Closed Solenoid Valve |
||

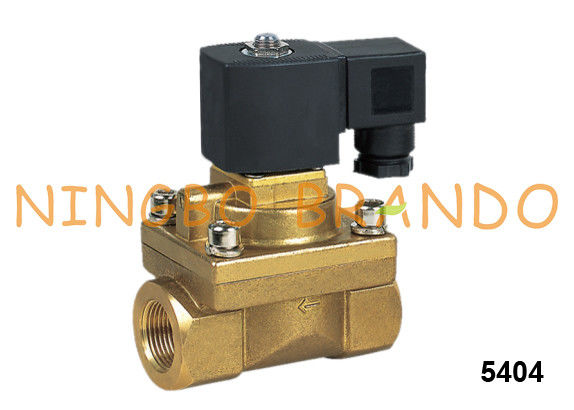

High Pressure High Temperature Brass Solenoid Valve 3/4'' 1'' 24V 220V
The 5404 solenoid valve is an indirect operated solenoid valve, which means that a pressure difference of at least 1 bar is required to open the valve. The 5404 has a piston to seal the valve, instead of a flexible rubber membrane. This robust design allows for high working pressures, in some versions up to 50 bar. Gas and steam versions are also available up to 160°C. The gate sizes range from 1/4" to 1". The dimensions of the orifice range from DN 13 to DN 25. A popular application for the 5404 valve is as a relief valve for compressors.
Technical Data of 5404 Solenoid Valve:
Main Dimension of 5404 Solenoid Valve:
Brando Solenoid Valve Factory Production Video:
More High Pressure Solenoid Valves for you to choose:
| Brass Solenoid Valves | |||
|
|
|
|
| MAX 50 bar | MAX 50 bar | MAX 50 bar | MAX 50 bar |
|
|
|
|
| MAX 50 bar | MAX 70 bar | MAX 120 bar | MAX 200 bar |
| Stainless Steel Solenoid Valves | |||
|
|
|
|
| MAX 50 bar | MAX 50 bar | MAX 50 bar | MAX 100 bar |
|
|
|
|
| MAX 120 bar | MAX 160 bar | MAX 200 bar | MAX 300 bar |
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
