| Type: | CKD Type | Material: | Plastic, Copper |
|---|---|---|---|
| Product Name: | CKD AB41-02 / AB41-03 Series Solenoid Valve Coil | Voltage: | DC24V, AC220V (±10%) |
| Hole Diameter: | 16mm | Power: | DC: 18Watt, AC: 26VA |
| Color: | Black (Other Color Can Be Customized) | Application: | CKD AB41-02 / AB41-03 Series Solenoid Valve |
| Insulation Class: | H | Connection Type: | DIN43650A |
| High Light: | AB410 Solenoid Valve Coil,CKD Type Solenoid Valve Coil,CKD Type AB410 |
||

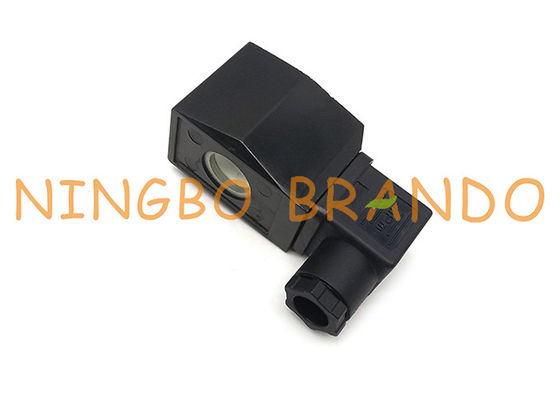

AB410 16mm Inner Diameter height 40mm CKD Type Solenoid Valve Coil
This solenoid valve coil is applied in CKD AB41-02 / AB41-03 series solenoid valves. Solenoid valve core is the sealing and sealing part of the solenoid coil, also known as the solenoid valve coil. That is to say, the injured and sealed electrical coils are sealed with insulation material, leaving only terminals, insulation, waterproof, anti-riot, fireproof, anti-corrosion, etc.
Features
Powerful magnet force
Continuous duty ED100%
Service up to 180℃ with class H wire, according to IEC317-8
Protection degree IP 65, IP67 or others on request
Multiple types of voltage and power for selection, AC or DC
Customized solution is availale
Technical parameter of CKD AB41-02 / AB41-03 Series Solenoid Valve Coils:
| Model number | BB16039001 |
| Staard voltage | DC24V, AC220V (±10%) |
| Normal power | DC: 18Watt, AC: 26VA |
| Material | Copper, Plastic |
| Wire class | H |
| Connection type | DIN43650A |
| Application | CKD AB41-02 / AB41-03 Series Solenoid Valve |
| Hole size | 16 mm |
| Height | 39 mm |
| Width | 38.5 mm |
Main dimension of CKD Type AB41-02 / AB41-03 Solenoid Coils:

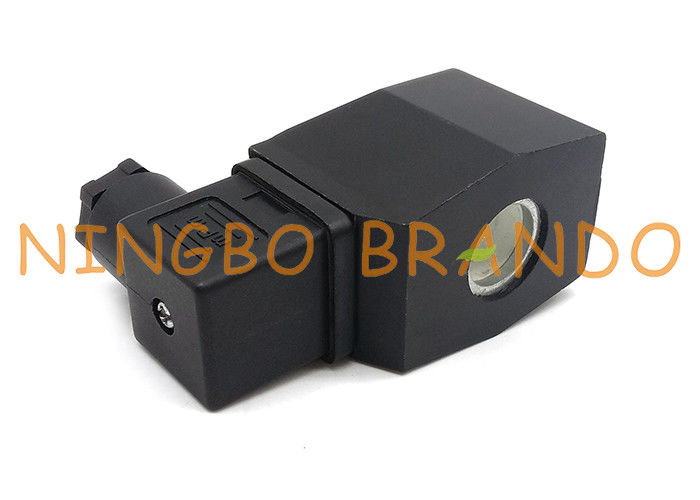

Detail enlargement of AB41-02 / AB41-03 CKD Type Electromagnetic Coil:
Applied in CKD AB41-02 / AB41-03 Series Water Solenoid Valve:
More details about CKD Type AB41-02 / AB41-03 Solenoid Coils in below Youtube Video:
Solenoid valve assembly temperature rise and maximum temperature requirements:
According to the heat resistance grade determined by GB/T 11021, the maximum temperature obtained by temperature rise of electromagnetic coil assembly and increase of ambient temperature shall not exceed the following table:
| Insulation class | Maximum normal temperature rise (℃) | Maximum temperature(℃) |
| B | 90 | 130 |
| F | 115 | 155 |
| H | 140 | 180 |
| N | 160 | 200 |
| R | 180 | 220 |
| Tips: Not applicable to pulsating operating coils! | ||
Voltage withstand test method of electromagnetic coil power frequency:
Apply the test voltage specified in the table below between the power supply terminal and the ground terminal. The leakage current is set as 1ma, type test 1min, factory test 1s. Increase specified value by 10%) without breakdown, discharge or flashover.
| Rated voltage U(V) | Power frequency withstand voltage and inter-turn voltage test voltage(V) |
| U＜60 | ≥1000 |
| 60≤ U＜300 | ≥2000 |
| 300≤ U＜600 | ≥2500 |
The resistance of the electromagnetic coil is measured by a dc resistance tester or a multimeter resistance file.When the ambient temperature is not 20℃, the standard resistance is calculated as follows:
R2 = (T2 + 234.5)/(234.5 + 20) * R1
T2 - ambient temperature in degrees Celsius
R1 - standard resistance, i.e., resistance at 20℃
R2 - standard resistance in current temperature, expressed in ohms (Ω).
