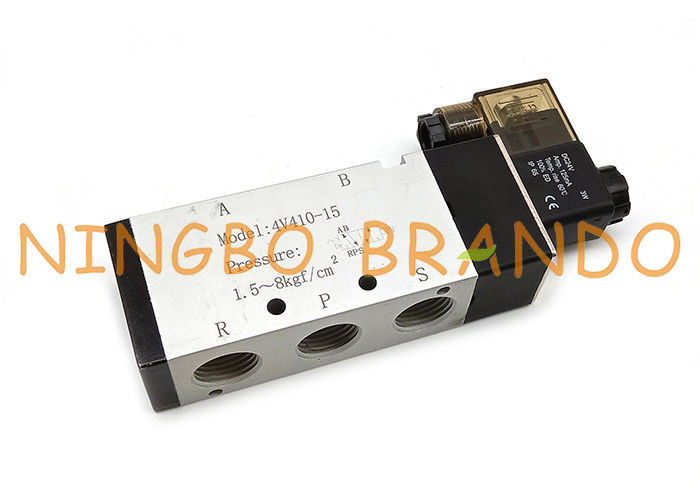

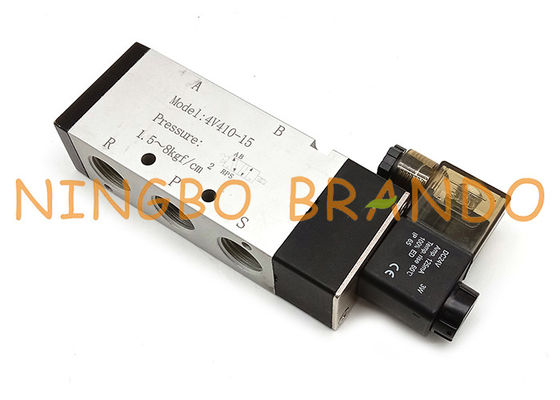

Name: 4V410-15 1/2'' Single Solenoid 5/2 Way Pneumatic Air Control Valve
Brand: Brando
SKU: 4V410-15
Rating: 4.9 (120 reviews)

Home Products Pneumatic Solenoid Valve

4V410-15 1/2'' Single Solenoid 5/2 Way Pneumatic Air Control Valve

Product Details:

Place of Origin:	China
Brand Name:	Brando
Certification:	CE
Model Number:	4V410-15

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Packaging Details:	inner boxes,cartons,pallets
Delivery Time:	7 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100000 pcs per month

Contact Now

Detailed Product Description

Port Size:	In=Out=Exhaust=1/2''	Valve Type:	Single Solenoid 5 Port 2 Position
Voltage:	220VAC 110VAC 24VDC 12VDC	Connector:	Terminal & Grommet
Working Pressure:	0.15 To 0.8MPa(21-114psi)	Temperature:	-20 To +70℃
Max. Frequency:	5 Cycle/sec	Body Material:	Aluminum Alloy
Fluid:	Air (to Be Filtered By 40 μm Filter Element)	Application:	Automation
High Light:	4V410-15 Air Control Valve , Pneumatic Air Control Valve , AirTAC Type 4V410-15

4V410-15 1/2'' Single Solenoid 5/2 Way Pneumatic Air Control Valve

How to select a solenoid valve
The type of solenoid required will depend on several factors.

What is the pressure of the line? This will dictate how much power is required. It will also tell you whether a direct acting, internally or externally piloted valve is needed.
How quickly does the valve need to open or close? Piloted valves take longer to switch than direct acting valves, but require less power.
Do you need a N/O or a N/C valve? The valve must be appropriate to the application. The single most important consideration is the potential effect of a power cut or valve failure – is it safer for flow to stop or continue if this happens? If there are no safety considerations, then consider whether the line will be open or closed most of the time. If a line will be mostly in flow, then a normally open valve will be needed. If the reverse is true, then a normally closed valve will be needed. Getting this wrong will lead to increased energy costs and potential burnout of the solenoid.
What is the required flow rate, port size and number of ports? As with any valve, these factors depend entirely the valve function and what system it is being integrated into.

5/2 Way Single Coil Pneumatic Solenoid Valve:4V110-06, 4V110-08, 4V210-06, 4V210-08, 4V310-08, 4V310-10, 4V410-15

5/2 Way Double Coil Pneumatic Solenoid Valve:4V120-06, 4V120-08, 4V220-06, 4V220-08, 4V320-08, 4V320-10, 4V420-15

5/3 Way Double Coil Pneumatic Solenoid Valve:4V130C-06, 4V130C-08, 4V230C-06, 4V230C-08, 4V330C-08, 4V330C-10, 4V430C-15

Technical Data:

Model	4v410-15	4V420-15	4V430C-15	4V430E-15	4V430P-15
Fluid	Air(to be filtered by 40 μ m filter element)
Acting	Internal pilot or external pilot
Port Size	In=Out=Exhaust=1/2''
Orifice Size	50.00 mm² (Cv=2.79)		30.00 mm² (Cv=1.68)
Valve Type	5 port 2 position		5 port 3 position
Operating Pressure	0.15~0.8MPa (21~114psi)
Proof	1.5MPa (215psi)
Temperature ℃	-20 to 70
Material of Body	Aluminum alloy
Max. frequency	3cycle/sec

Dimension Diagram:

4V410-15 1/2'' Single Solenoid 5/2 Way Pneumatic Air Control Valve 0

4V410(Grommet)

4V410-15 1/2'' Single Solenoid 5/2 Way Pneumatic Air Control Valve 1

4V410(Terminal)

Brando is a Pneumatic Solenoid Valve manufacturer and exporter in Ningbo, China, which has more than 10 years experience. The most common types are 2/2 way, 3/2 way, 5/2 way and 5/3 way. The valves can be single or double acting (one or two solenoids).

Brando Supply:
1. 5/2 Way Pneumatic Solenoid Valve: 4V110-06, 4V120-06, 4V210-06, 4V220-06, 4V210-08, 4V220-08, 4V310-08, 4V320-08, 4V310-10, 4V410-15, 4V420-15, 4M110-06, 4M120-06, 4M210-06, 4M220-06, 4M210-08, 4M220-08, 4M310-08, 4M320-08, 4M310-10, 4M320-10.

2. 5/3 Way Pneumatic Solenoid Valve: 4V130C-06, 4V130E-06, 4V130P-06, 4V230C-06, 4V230E-06, 4V230P-06, 4V230C-08, 4V230E-08, 4V230P-08, 4V330C-08, 4V330E-08, 4V330P-08, 4V330C-10, 4V330E-10, 4V330P-10, 4V430C-15, 4V430E-15, 4V430P-15.

3. 3/2 Way Pneumatic Solenoid Valve: 3V110-06, 3V120-06, 3V210-06, 3V220-06, 3V210-08, 3V220-08, 3V310-08, 3V320-08, 3V310-10, 3V320-10, 3V410-15, 3V420-15.

4. 2/2 Way Pneumatic Solenoid Valve: 2V025-06, 2V025-08.

Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing

Welcome to your any question and inquiry!
