| Place of Origin: | Ningbo, China |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | PXL-Z |
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | PVC bag, then inner box, then carton, then pallet |
| Delivery Time: | 1 week after payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, MoneyGram |
| Supply Ability: | 10000000pcs per month |
| Product Name: | Pneumatic Silencer Throttle Valve | Tube OD (Inch): | 1/8'', 1/4'', 3/8'', 1/2'', 3/4'' |
|---|---|---|---|
| Material: | Brass | Working Pressure Range: | 0 To 0.8MPa |
| Working Temperature: | -10 To +250℃ | Working Medium: | Compressed Air |
| High Light: | Pneumatic Silencer Throttle Valve,Adjustable Pneumatic Silencer,Pneumatic Silencer 1/8'' |
||

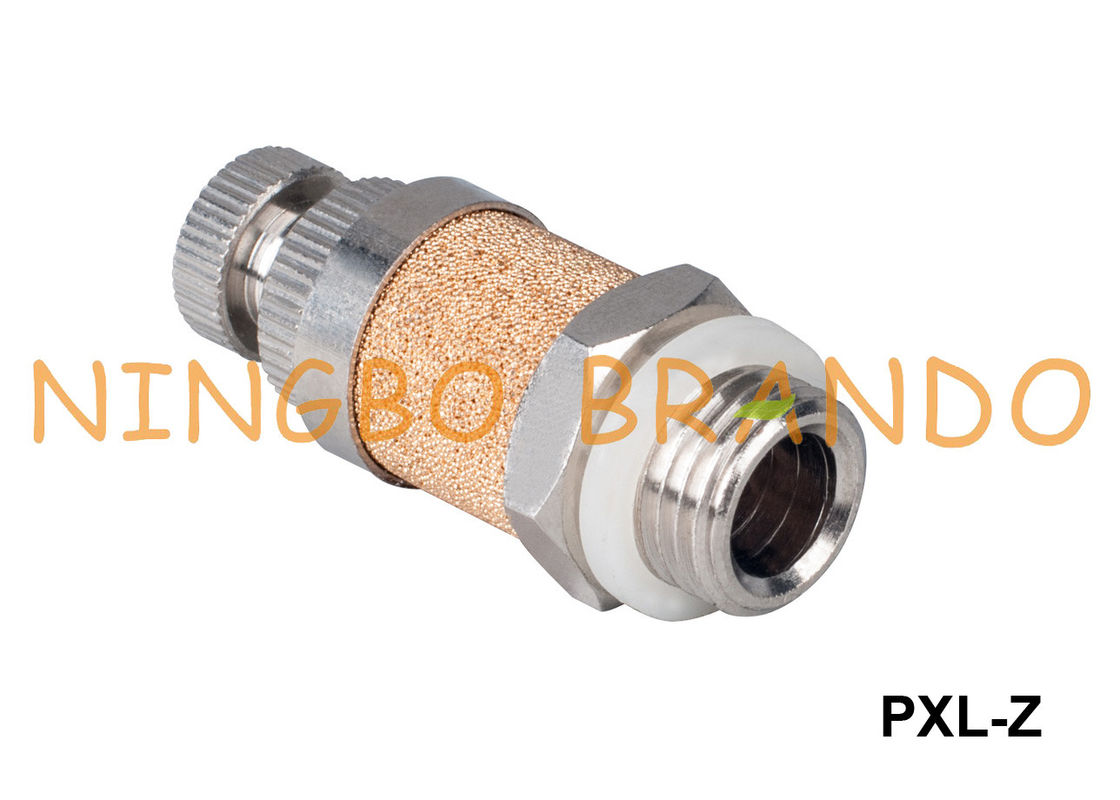

Adjustable Pneumatic Silencer Throttle Valve 1/8'' 1/4'' 3/8'' 1/2'' 3/4''
Pneumatic mufflers, also called silencers, safely and quietly vent pressurized air to atmosphere. They are commonly installed on air valves, cylinders, manifolds and fittings. Without a muffler, air exhausting from many types of pneumatic-powered equipment can be so loud as to be detrimental to the surrounding environment and potentially harm workers. Thus, mufflers are usually needed. Typically, the devices are installed directly at the exhaust port and diffuse the released air through a porous material that increases the surface area which, in turn, reduces velocity, turbulence and noise levels.
Technical data of Pneumatic Silencer Muffler:
|
Model
|
Working Medium
|
Working Pressure
(MPa)
|
Working Temp
(℃)
|
Circulation Capacity
|
Noise Effect
|
|
|
"S" data
|
Nominal Flux
|
|||||
|
-2.5
|
Compressed Air
|
0 to 0.8
|
-10 to +250
|
5
|
200L/Min
|
≥20dB
|
|
-6
|
20
|
960L/Min
|
||||
|
-8
|
40
|
1920L/Min
|
||||
|
-10
|
60
|
2880L/Min
|
||||
|
-15
|
110
|
5280L/Min
|
||||
|
-20
|
190
|
9120L/Min
|
||||
|
-25
|
300
|
10000L/Min
|
||||
|
-32
|
400
|
19200L/Min
|
≥25dB
|
|||
|
-40
|
650
|
31200L/Min
|
||||
|
-55
|
700
|
33600L/Min
|
||||
Dimension of Pneumatic Silencer Muffler:
|
Model No
|
M
|
L1
|
L
|
S
|
|
PXL-Z4
|
M8X1
|
7
|
36
|
13
|
|
M10X1
|
7
|
36
|
13
|
|
|
G1/8''
|
7
|
36
|
13
|
|
|
PXL-Z6
|
M10X1
|
7
|
36
|
13
|
|
G1/8''
|
7
|
36
|
13
|
|
|
G1/4''
|
9
|
39
|
16
|
|
|
PXL-Z8
|
M12X1.25
|
9
|
43
|
17
|
|
G1/8''
|
7
|
41
|
17
|
|
|
G1/4''
|
9
|
43
|
17
|
|
|
G3/8''
|
10
|
43
|
19
|
|
|
PZL-Z10
|
M16X1.5
|
10
|
48
|
19
|
|
G3/8''
|
10
|
48
|
19
|
|
|
G1/2''
|
11
|
49
|
24
|
|
|
PZL-Z15
|
M20X1.5
|
11
|
61
|
25
|
|
G1/2''
|
11
|
61
|
25
|
|
|
PZL-Z20
|
M27X2
|
13
|
66
|
30
|
|
G3/4''
|
13
|
66
|
30
|
List of other Brass Pneumatic Air Muffler:
|
|
|
|
| Throttle Valve | C Type Throttle Valve | PTV Throttle Valve | SD Timing Muffler |
|
|
|
|
| Muffler (Sintered) | Muffler (Flat Head) | LM Aluminous Muffler | G Type Muffler |
|
|
|
|
| D Type Muffler | E Type Muffler | PSU Plastic Muffler | SU Plastic Muffler |
More Pneumatic Products for you to choose:
| 2/2 Way Pneumatic Valve | 3/2 Way Pneumatic Valve | 5/2 Way Pneumatic Valve | 5/3 Way Pneumatic Valve |
|
|
|
|
| Namur Solenoid Valve | Air Filter Regulator Lubricator | Pneumatic Cylinder | Silcencers And Fittings |
|
|
|
|
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
Contact Person: Brandon
Tel: +8613454729544
