| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | VFA3130-02 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | $3 to $ 5 per pc |
| Packaging Details: | Individual box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | L/C, T/T, PayPal, Western Union, MoneyGram |
| Supply Ability: | 200000 pcs per month |
| Valve Type: | 5 Way 2 Position | Port Size: | In=Out=1/4'', Exhaust=1/8'' |
|---|---|---|---|
| Pressure Range: | 0.15 To 0.9 MPa | Body Material: | Die-Cast Aluminum |
| Acting: | Exterior Control | Fluid: | Compressed Air |
| Lubrication: | Not Required | Ambient And Fluid Temperature: | -10 To +60℃ (No Freezing) |
| High Light: | SMC Air Operated Valve,Air Pilot Valve SMC,SMC VFA3130-02 |
||

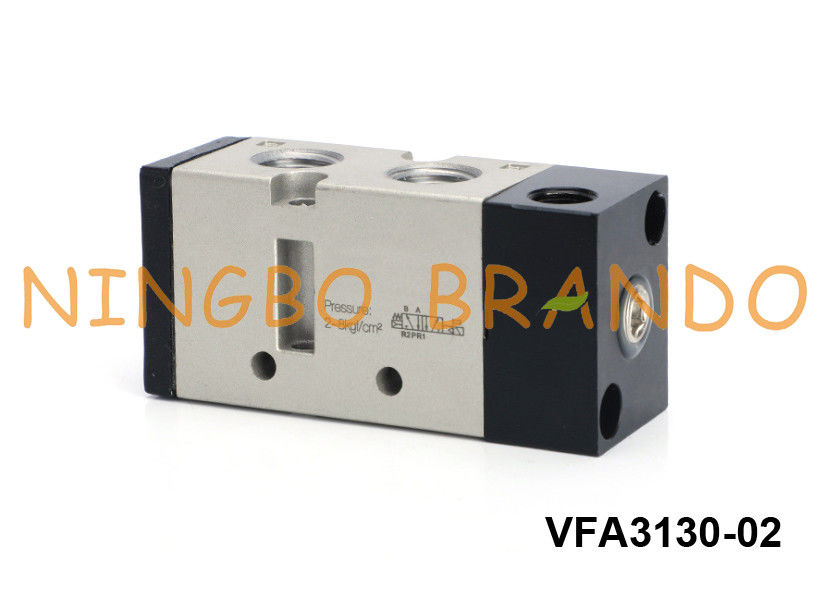

VFA3130-02 SMC Type Pneumatic Operated Air Pilot Valve 5 Port
Air piloted valves are operated by an external air source such as a solenoid operated valve in a remote location. The valve can also be internally air piloted, enabling use of a smaller integrated electric solenoid to provide an air pilot signal to control the larger valve spool. Air operated valves are often used in areas where electrical signals would pose a hazard, or when air pressure control exists or is preferred. These air actuated directional control valves use a compressed air signal (or pilot) to shift the valve into an On or Off condition. Choose from single air control or double air control options. We carry 3/2 way and 5/2 way, 5/3 way valves.
Specifications of VFA Series Air Pilot Valves:
| Fluid | Air | |
| Operating Pressure Range | 2 position single | 0.15 to 0.9 MPa |
| 2 position double | 0.1 to 0.9 MPa | |
| 3 position | 0.15 to 0.9 MPa | |
| Pilot Pressure Range | 2 position single | (0.4xP+0.1) to 0.9 MPa: Operating pressure range |
| 2 position double | 0.1 to 0.9 MPa | |
| 3 position | 0.15 to 0.9 MPa | |
| Ambient and Fluid Temperature | -10 to +60℃ (No freezing) | |
| Lubrication | Not required | |
| Mounting Orientation | Free | |
| Impact/Vibration Resistance | 300/50 (m/s²) | |
Ordering Code of VFA Series Air Pilot Valves:
Flow Characteristics of VFA Series Air Pilot Valves:
Dimension of VFA Series Air Pilot Valves:
Production Video of BRANDO Pneumatic Valves:
More Pneumatic Products for you to choose:
| 2/2 Way Pneumatic Valves | 3/2 Way Pneumatic Valves | 5/2 Way Pneumatic Valves | 5/3 Way Pneumatic Valves |
|
|
|
|
| Namur Solenoid Valves | Air Pilot Valves | Pneumatic Cylinders | Silencers and Fittings |
|
|
|
|
