Place of Origin: | China |
Brand Name: | Brando |
Certification: | CE |
Model Number: | BAPC210037036 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiation |
Packaging Details: | Inner Box, Carton, Pallet |
Delivery Time: | 4-8 days |
Payment Terms: | L/C, T/T, Western Union,Paypal, MoneyGram |
Supply Ability: | 300000 sets per month |
Position And Way: | 2 Way 2 Position | Non-working Status: | Normally Closed |
---|---|---|---|
Seat Type: | Thread | Plunger Tube Material: | Brass |
Plunger Tube OD: | φ10mm | Seal Material: | VITON |
Voltage: | AC, DC All Available | Application EXamples: | Automobile Heater Solenoid Valve |
High Light: | Automobile Heater Plunger Assembly,Brass Plunger Assembly,Automobile Heater Plunger Armature |
Automobile Heater Spare Part Brass Armature Tube Plunger Assembly

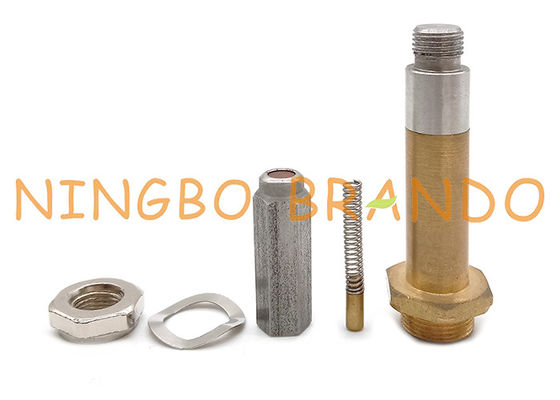

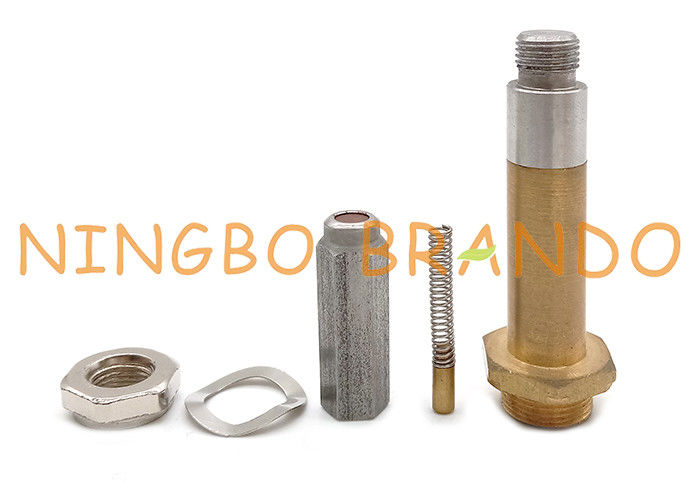

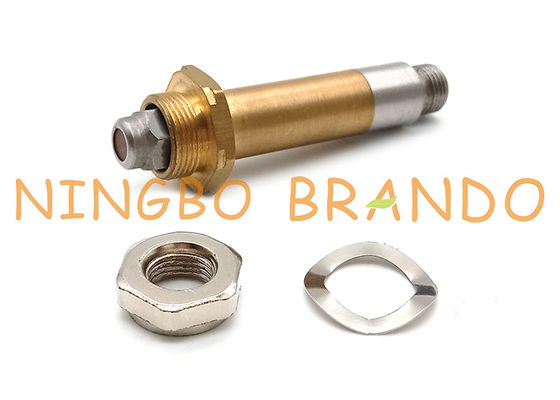

This is a set of solenoid valve armature assembly, including 1 x brass plunger tube, 1 x stainless steel moving core with NBR seal and 1 x stainless steel spring. This plunger assembly is designed for 2 way normally closed solenoid valves, such like Automobile Heater Solenoid Valve. The armature tube outer diameter is 10mm, so it is suitable to 10mm inner hole diameter solenoid valve coil. The standard plunger's seal material is VITON, but NBR, HNBR, EPDM, Silicone are all available to customize.
Technical data of Solenoid Valve Armature Assembly:
Main dimension of Solenoid Valve Armature Assembly:
Details of Solenoid Valve Armature Assembly:
2 Way Normally Closed Thread Seat
Magnetic Moving Core VITON Seal
Brando Factory Production of Solenoid Valve Armature Assembly:
More Solenoid Valve Armature Assembly for you to choose:
*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.
*According to tube material: Brass, Stainless Steel
*According to valve application:
1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
