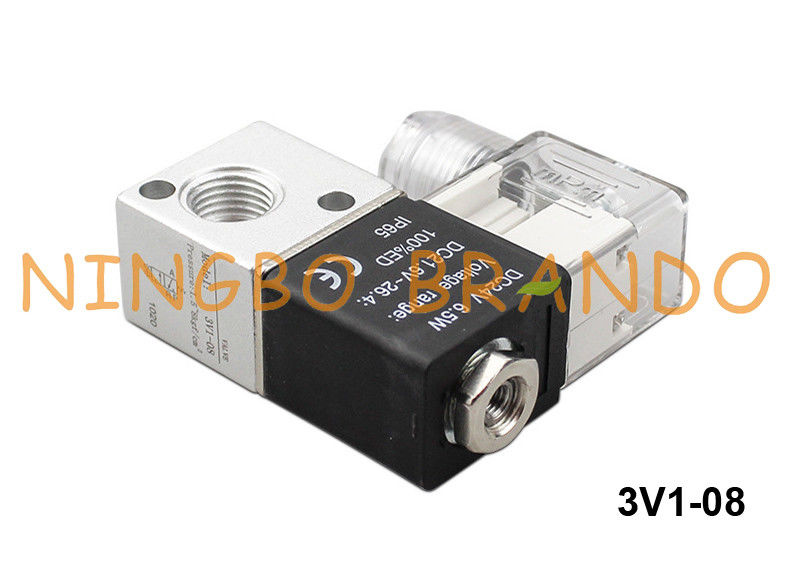

3V1-08 3 Way Pneumatic Air Solenoid Valve 1/4'' 12V 24V 110V 220V

3V1-08 3 Way Pneumatic Air Solenoid Valve 1/4'' 12V 24V 110V 220V

3V1-08 3 Way Pneumatic Air Solenoid Valve 1/4'' 12V 24V 110V 220V
video
3V1-08 3 Way Pneumatic Air Solenoid Valve 1/4'' 12V 24V 110V 220V
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: 3V1-08
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: $3 to $ 5 per pc
Packaging Details: Individual box, Carton, Pallet
Delivery Time: 4 to 7 working days
Payment Terms: L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability: 200000 pcs per month
Contact Now
Detailed Product Description
Fluids: Air (to Be Filtered By 40 μ M Filter Element) Action: Direct Acting
Function: 3 Way, Normally Closed (NC) Orifice Size: 1.0mm
Port Size: 1/4'' Pressure Range: 0 To 0.8MPa
Max Pressure Resistance: 1.2MPa Body Material: Aluminum Alloy
Max. Frequency: 10 Cycle / Second Voltage: 12VDC, 24VDC, 110VAC, 220VAC
High Light:

3 Way Air Solenoid Valve

,

Pneumatic Air Solenoid Valve

,

2 Position 3 Way Pneumatic Solenoid Valve

3V1-08 3 Way Pneumatic Air Solenoid Valve 1/4'' 12V 24V 110V 220V



Installation instructions
1. Before installing, be sure the valve has not been damaged via transportation.
2. Its suggested to use the medium lubricated by 40μm filter element.
3. Be aware of the flow direction and port size.
4. Please notice whether the installation condition accords with technical requirements (such as voltage, actuation frequency, working pressure and scope of application temperature), then the equipment can be installed and used.
5. Take measure to avoid vibration and frozen.
6. Before using the fittings and tubes make sure they are clean.
7. When connecting to fittings, be sure the PTFE Thread Seal Tape is used correctly.
8. To keep the dust away, please use the silencer for the exhaust ports.
9. Never forget to install dirt-proof boot in air intake and outlet during dismounting.
10. After installing, please use the manual override to test valve first.



Technical Data of 3V1 Series Pneumatic Solenoid Valves:

Model 3V1-M5 3V1-06 3V1-08
Medium Air (to be filtered by 40 μ m filter element)
Action Direct Acting
Way & Position 3 Port 2 Position
Port Size M5 1/8'' 1/4''
Orifice Size 1.0mm
Pressure Range 0 to 0.8MPa
Max. Resistance Pressure 1.2 MPa
Coil Voltage 12VDC, 24VDC, 110VAC, 220VAC
Coil Power AC: 5.5VA, DC: 4.8W
Max. Frequency 10 cycle/sec


Dimension of 3V1 Series Pneumatic Solenoid Valve:

3V1-08 3 Way Pneumatic Air Solenoid Valve 1/4'' 12V 24V 110V 220V 0



Production Video of Pneumatic Solenoid Valves:



More Pneumatic Products for you to choose:



3V1-08 3 Way Pneumatic Air Solenoid Valve 1/4'' 12V 24V 110V 220V 13V1-08 3 Way Pneumatic Air Solenoid Valve 1/4'' 12V 24V 110V 220V 24v210-08

                    2/2 Way                                      3/2 Way                        5/2 Way, Single Solenoid

a1a1pneumatic fast fittings

     5/2 Way, Double Solenoid        5/3 Way, Double Solenoid         Pneumatic Hose Fittings
