| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | DMF-Z-25 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | inner boxes,cartons,pallets |
| Delivery Time: | 7 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100000 pcs per month |
| Type: | Right Angle Diaphragm Valve | Power: | Solenoid |
|---|---|---|---|
| Media: | Air | Port Size: | 1''Inch |
| Structure: | Diaphragm | Body Material: | Aluminum Alloy |
| Diaphragm Material: | NBR(Common), FKM(Available) | Number Of Diaphragm: | 1 |
| Pressure: | 0.1 To 0.8MPa | Temperature: | -25 To +80℃ |
| High Light: | 1 Inch Diaphragm Pulse Jet Valve,Bag Filter Pulse Jet Valve,DMF-Z-25 Right Angle Valve |
||

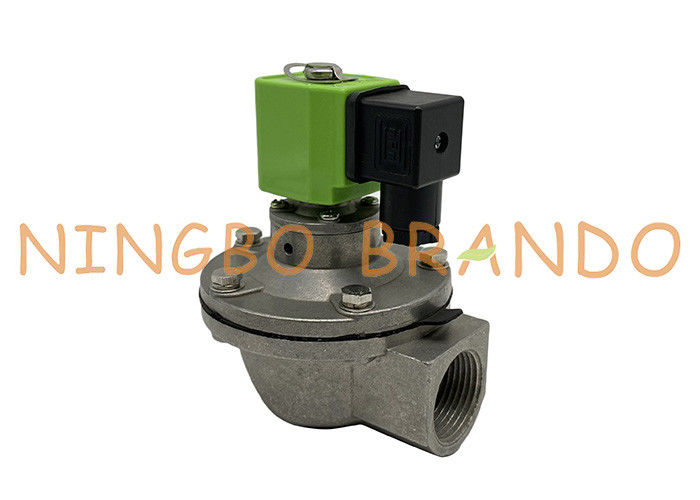

DMF-Z-25 1'' Inch Diaphragm Bag Filter Dust Collector Pulse Valve
Working Principles:
The electromagnetic pulse valve is composed of electromagnetic pilot operator, diaphragm and valve body. Due to difference of pressure acting on two sides of the diaphragm, the diaphragm is pressed closely against the outlet of valve to keep the valve stays in “closed” position.
When energized by an electric signal from the controller, the electromagnetic armature will move to open the discharge opening of back cavity. The compressed air in back cavity bursts out to relief pressure and pressurized air in front cavity pushes up the diaphragm to open the main outlet of valve, then the electromagnetic pulse valve opens and starts to blow.
When the signal disappears and the spring works immediately to send the pilot operator back to its original position and close the discharging opening. The diaphragm will close the passage by the effect of the pressure in the front cavity and the spring. The pulse valve stops blowing.
The orifice in the diaphragm damps the airflow when the armature is lifting up for releasing the pressure. When the discharge hole closed, the pressure gas will fill into the front cavity to close the passage by the diaphragm. The pulse valve stops blowing.
Technical Data of SBFEC Type DMF Series Right Angle Pulse Jet Valve:
|
Model
|
Nominal diametrer
|
Number of diaphragms
|
Inlet
|
Outlet
|
Weight (kg)
|
|
|
mm
|
inch
|
|||||
|
DMF-Z-20
|
Φ20
|
3/4''
|
1
|
G3/4''
|
G3/4''
|
0.65
|
|
DMF-Z-25
|
Φ25
|
1'''
|
1
|
G1''
|
G1''
|
0.8
|
|
DMF-Z-40S
|
Φ40
|
1 1/2''
|
2
|
G1 1/2''
|
G1 1/2''
|
1.4
|
|
DMF-Z-50S
|
Φ50
|
2''
|
2
|
G 2''
|
G2
|
2.4
|
|
DMF-Z-62S
|
Φ62
|
2 1/2''
|
2
|
G2 1/2''
|
G2 1/2''
|
3.5
|
|
DMF-Z-76S
|
Φ76
|
3''
|
2
|
G3''
|
G3''
|
4.3
|
|
DMF-Z-90S
|
Φ90
|
3 1/2''
|
2
|
G3 1/2''
|
G3 1/2''
|
5.75
|
|
DMF-Z-102S
|
Φ102
|
4''
|
2
|
G4''
|
G4''
|
7.3
|
|
DMF-ZL-B
|
Φ20
|
3/4''
|
1
|
G3/4''
|
Φ27
|
0.75
|
Main Dimension:
BFEC DMF Series Pulse Jet Valve For Dust Collector System:
|
Thread Valve
|
3/4''
|
1''
|
1.5''
|
2''
|
2.5''
|
3''
|
4''
|
|
DMF-Z-20
|
DMF-Z-25
|
DMF-Z-40S
|
DMF-Z-50S
|
DMF-Z-62S
|
DMF-Z-76S
|
DMF-Z-102S
|
|
|
Quick Mount Valve
|
3/4''
|
Inlet φ27
|
1''
|
1.5''
|
|||
|
DMF-ZM-20
|
DMF-ZL-B
|
DMF-ZM-25
|
DMF-ZM-40S
|
||||
|
Flange Valve
|
1''
|
1.5''
|
|||||
|
DMF-ZF-25
|
DMF-ZF-40S
|
||||||
|
Embedded Valve
|
1''
|
1.5''
|
Outlet φ62mm
|
Outlet φ75
|
Outlet φ89
|
Outlet φ114
|
Outlet φ102
|
|
DMF-Y-25
|
DMF-Y-40S
|
DMF-Y-50S
|
DMF-Y-62S
|
DMF-Y-76S
|
DMF-Y-102S
|
DMF-Y-102SA
|
|
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
Contact Person: Mia
Tel: +8613454729544
