Name: 4V430C-15 5/3 Way Internal Pilot Pneumatic Solenoid Valve
Brand: Brando
SKU: 4V430C-15
Rating: 4.7 (118 reviews)

Home Products Pneumatic Solenoid Valve

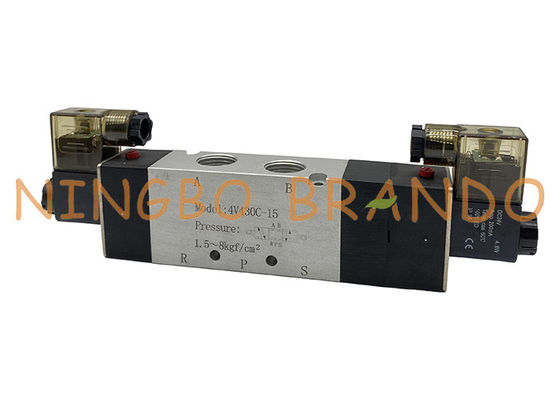

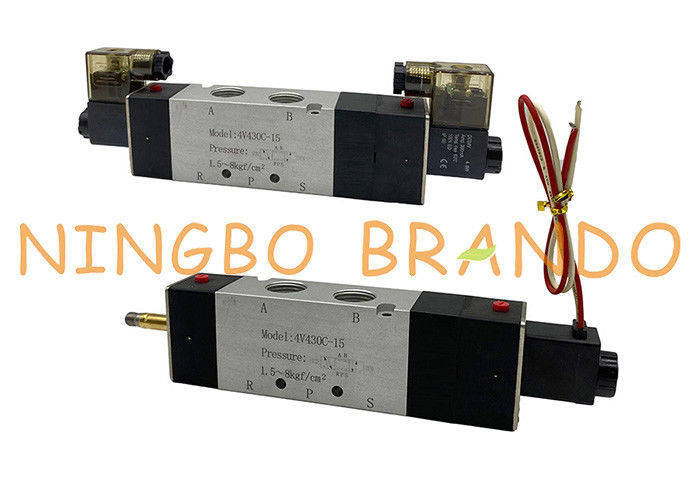

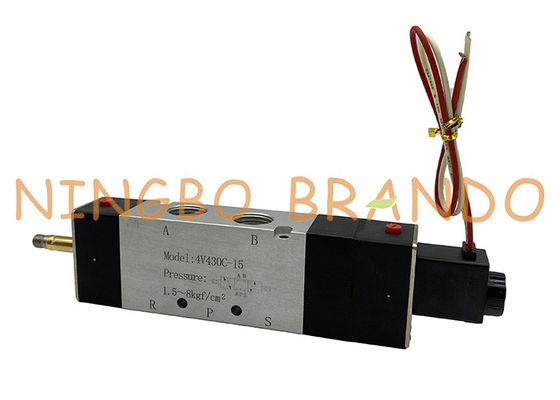

4V430C-15 5/3 Way Internal Pilot Pneumatic Solenoid Valve

Product Details:

Place of Origin:	China
Brand Name:	Brando
Certification:	CE
Model Number:	4V430C-15

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiation
Packaging Details:	inner boxes,cartons,pallets
Delivery Time:	7 to 14 working days
Payment Terms:	T/T, PayPal, Western Union
Supply Ability:	100000 pcs per month

Contact Now

Detailed Product Description

Port Size:	In=Out=Exhaust=1/2''	Valve Type:	Double Solenoid 5 Port 3 Position
Voltage:	220VAC 110VAC 24VDC 12VDC	Connector:	Terminal & Grommet
Working Pressure:	0.15 To 0.8MPa(21-114psi)	Temperature:	-20 To +70℃
Max. Frequency:	5 Cycle/sec	Body Material:	Aluminum Alloy
Fluid:	Air (to Be Filtered By 40 μm Filter Element)	Application:	Automation
High Light:	4V430C-15 Pneumatic Solenoid Valve , Internal Pilot Pneumatic Solenoid Valve , 4V430C-15 Air Direction Valve

4V430C-15 5/3 Way Internal Pilot Pneumatic Solenoid Valve

Industrial automation is the industrial production of various parameters for the control purpose, implement all kinds of process control, in the industrial production, to minimize the human operation, and can make full use of energy and various information for production work, called industrial automation production, and can make industrial automatic production process is known as industrial automation. Automation equipment is widely used in manufacturing industry, food production line, electronic and electric packaging production line, and plays an important role in agriculture, logistics and other industries.

Advantage:
1.The production process of the whole process is stable to improve the consistency of products;
2.Suitable for mass production, reduce the production cost;
3.Highly automated procedures, no manual operation;
4.High work efficiency to improve the production efficiency of the enterprise.

5/2 Way Single Coil Pneumatic Solenoid Valve:4V110-06, 4V110-08, 4V210-06, 4V210-08, 4V310-08, 4V310-10, 4V410-15

5/2 Way Double Coil Pneumatic Solenoid Valve:4V120-06, 4V120-08, 4V220-06, 4V220-08, 4V320-08, 4V320-10, 4V420-15

5/3 Way Double Coil Pneumatic Solenoid Valve:4V130C-06, 4V130C-08, 4V230C-06, 4V230C-08, 4V330C-08, 4V330C-10, 4V430C-15

Technical Data:

Model	4v410-15	4V420-15	4V430C-15	4V430E-15	4V430P-15
Fluid	Air(to be filtered by 40 μ m filter element)
Acting	Internal pilot or external pilot
Port Size	In=Out=Exhaust=1/2''
Orifice Size	50.00 mm² (Cv=2.79)		30.00 mm² (Cv=1.68)
Valve Type	5 port 2 position		5 port 3 position
Operating Pressure	0.15~0.8MPa (21~114psi)
Proof	1.5MPa (215psi)
Temperature ℃	-20 to 70
Material of Body	Aluminum alloy
Max. frequency	3cycle/sec

Dimension Diagram:

4V430C-15 5/3 Way Internal Pilot Pneumatic Solenoid Valve 0

4V420(Grommet)

4V430C-15 5/3 Way Internal Pilot Pneumatic Solenoid Valve 1

4V420(Terminal)
