| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | 4V330C-08 |
| Minimum Order Quantity: | 100 PCS |
|---|---|
| Packaging Details: | inner boxes,cartons,pallets |
| Delivery Time: | 7 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100000 pcs per month |
| Port Size: | In=Out=Exhaust=1/4'' | Valve Type: | Double Solenoid 5 Port 3 Position |
|---|---|---|---|
| Voltage: | 220VAC 110VAC 24VDC 12VDC | Connector: | Terminal & Grommet |
| Working Pressure: | 0.15 To 0.8MPa(21-114psi) | Temperature: | -20 To +70℃ |
| Max. Frequency: | 5 Cycle/sec | Body Material: | Aluminum Alloy |
| Fluid: | Air (to Be Filtered By 40 μm Filter Element) | Application: | Automation |
| High Light: | Terminal Pneumatic Solenoid Valve,Grommet Pneumatic Solenoid Valve,4V300 Series 5/3 Way 1/4'' |
||

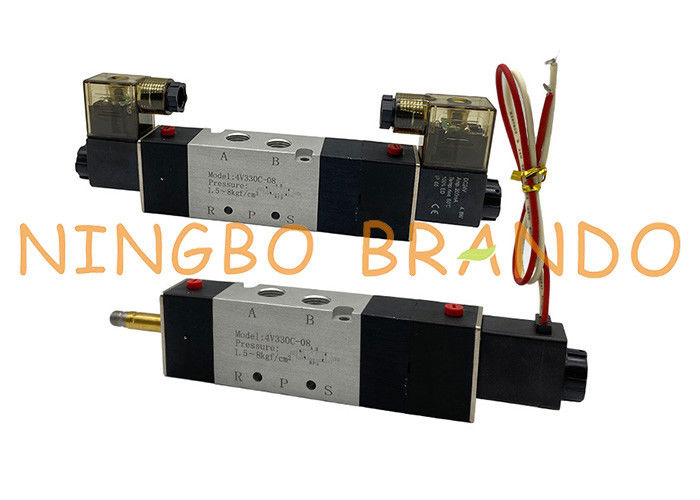

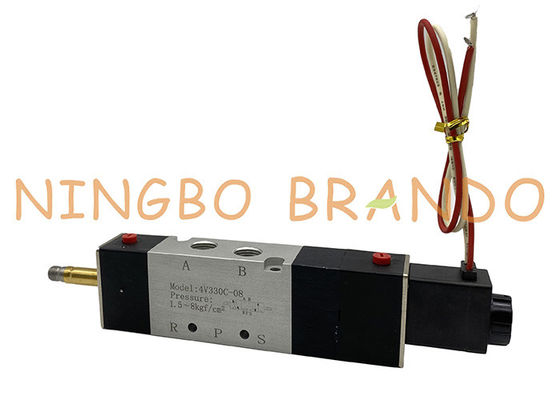

4V330C-08 1/4'' 5/3 Way Terminal Grommet Pneumatic Solenoid Valve
Pneumatic solenoid valve types:
Valves can be specified for internal or external driving. Valves can also be classified according to the number of connections or paths they contain. External pilot valves use external pressure sources. Internal driving uses an internal air pressure source. Two-way pilot valves are available for dust collection systems. Internally driven pilot valves with four-way connections are usually found in pneumatic operations and are used to move double acting cylinders. Pneumatic solenoid valves can be designed to stack.
Technical Data:
|
Model
|
4V310-08
4V320-08
|
4V330C-08
4V330E-08
4V330P-08
|
4V310-10
4V320-10
|
4V330C-10
4V330E-10
4V330P-10
|
|
Fluid
|
Air(to be filtered by 40 μ m filter element)
|
|||
|
Acting
|
Internal pilot or external pilot
|
|||
|
Port Size
|
In=Out=Exhaust=1/4''
|
In=Out=3/8'' Exhaust=1/4''
|
||
|
Orifice Size
|
25.00 mm2 (Cv=1.40)
|
18.00 mm2 (Cv=1.00)
|
30.00 mm2 (Cv=1.68)
|
18.00 mm2 (Cv=1.00)
|
|
Valve Type
|
5 port 2 position
|
5 port 3 position
|
5 port 2 position
|
5 port 3 position
|
|
Operating Pressure
|
0.15~0.8MPa(21~114psi)
|
|||
|
Proof Pressure
|
1.5MPa(215psi)
|
|||
|
Temperature ℃
|
-20~70
|
|||
|
Material of Body
|
Aluminum alloy
|
|||
|
Max. frequency
|
4 cycle/sec
|
4 cycle/sec
|
4 cycle/sec
|
4 cycle/sec
|
Dimension Diagram:
4V320(Grommet)
4V320(Terminal)
