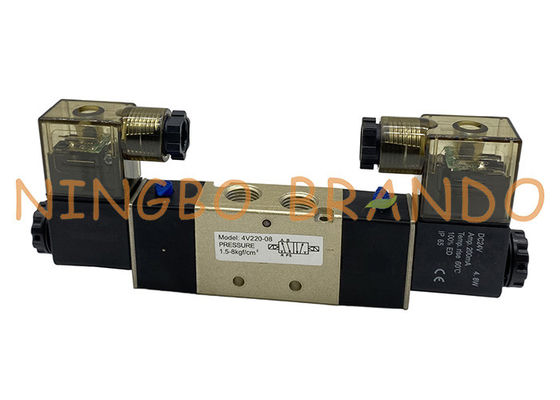

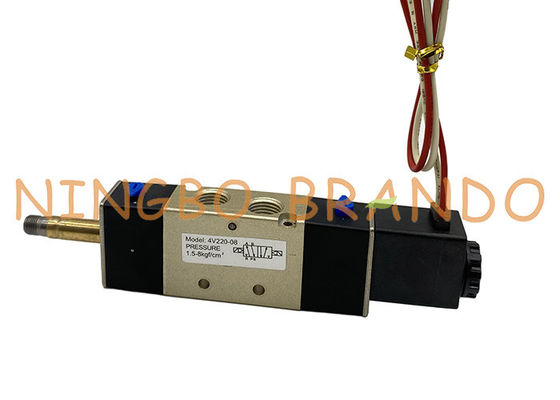

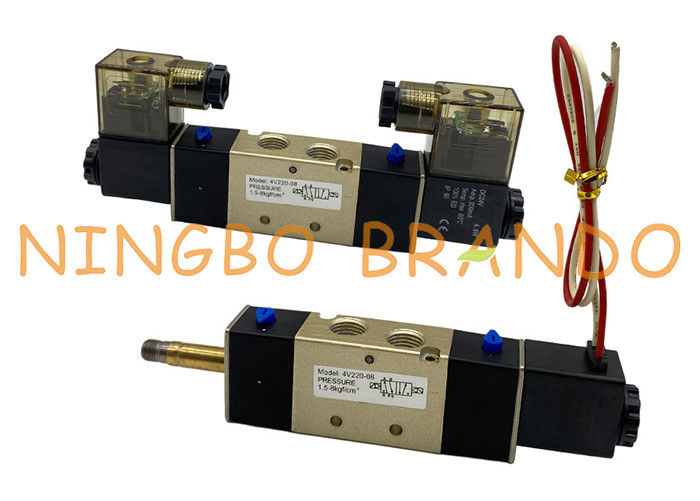

4V220-08 4V200 Series 1/4'' Double Coil Pneumatic Solenoid Valve

Product Details:

Place of Origin:	China
Brand Name:	Brando
Certification:	CE
Model Number:	4V220-08

Payment & Shipping Terms:

Minimum Order Quantity:	200 PCS
Packaging Details:	inner boxes,cartons,pallets
Delivery Time:	7 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100000 pcs per month

Contact Now

Detailed Product Description

Port Size:	In=Out=1/4'' Exhaust=1/8''	Valve Type:	Double Solenoid 5 Port 2 Position
Voltage:	220VAC 110VAC 24VDC 12VDC	Connector:	Terminal & Grommet
Working Pressure:	0.15 To 0.8MPa(21-114psi)	Temperature:	-20 To +70℃
Max. Frequency:	5 Cycle/sec	Body Material:	Aluminum Alloy
Fluid:	Air (to Be Filtered By 40 μm Filter Element)	Application:	Automation
High Light:	4V220-08 Pneumatic Solenoid Valve , Double Coil Pneumatic Solenoid Valve , 5/2 Way Pneumatic Valve

4V210-08 5/2 Way Pneumatic Air Single Electrical Control Solenoid Valve

Application:
The check valve allows compressed air to enter the gas tank from the compressor. When the compressor is closed, the compressed air is prevented from flowing in the opposite direction. When the pressure in the gas storage tank exceeds the allowable limit, the compressed air can be discharged; the directional control valve passes. The two ports of the cylinder are alternately pressurized and exhausted to control the direction of motion; the speed regulating valve can easily realize the stepless speed regulation of the actuator.The solenoid valve can be applied not only to pneumatic systems, but also to the same or similar applications in hydraulic systems and water pressure systems, such as low-power, non-oil-filled small electromagnetic reversing valves. Seals do not need to be supplied with oil. The gas does not pollute the environment and can be used in food, medicine, electronics and other industries.

Now, solenoid valve technology combined with control technology, computer technology, and electronic technology has been able to perform a variety of complex controls. For example, the solenoid valve can be applied in the field of intelligent control and applied in wireless control technology. Because the solenoid valve can be controlled by electromagnetic, it can interface well with various electronic systems, which is one of the main reasons for its wide application.Solenoid valves have been widely used in various fields of production. With the improvement of electromagnetic control technology and manufacturing processes, solenoid valves can achieve more sophisticated control, and play a role in realizing different pneumatic systems and hydraulic systems.

Technical Data:

Model	4V210-06 4V220-06	4V230C-06 4V230E-06 4V230P-06	4V210-08 4V220-08	4V230C-08 4V230E-08 4V230P-08
Fluid	Air(to be filtered by 40 μ m filter element)
Acting	Internal pilot or external pilot
Port Size	In=Out=Exhaust=1/8''		In=Out=1/4'' Exhaust=1/8''
Orifice Size	25.00 mm2 (Cv=0.78)	18.00 mm2 (Cv=0.67)	30.00 mm2 (Cv=0.89)	18.00 mm2 (Cv=0.67)
Valve Type	5 port 2 position	5 port 3 position	5 port 2 position	5 port 3 position
Operating Pressure	0.15~0.8MPa (21~114psi)
Proof Pressure	1.5MPa (215psi)
Temperature ℃	-20~70
Material of Body	Aluminum alloy
Max. frequency	5 cycle/sec	3 cycle/sec	5 cycle/sec	3 cycle/sec

Dimension Diagram:

4V220-08 4V200 Series 1/4'' Double Coil Pneumatic Solenoid Valve 0

4V220(Grommet)

4V220-08 4V200 Series 1/4'' Double Coil Pneumatic Solenoid Valve 1

4V220(Terminal)
