| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | 4V210-08 |
| Minimum Order Quantity: | 200pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Box, Carton, Pallet |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, PayPal, Western Union |
| Supply Ability: | 100000 pcs per month |
| Port Size: | In=Out=1/4'' Exhaust=1/8'' | Valve Type: | Single Solenoid 5 Port 2 Position |
|---|---|---|---|
| Voltage: | 220VAC 110VAC 24VDC 12VDC | Connector: | Terminal & Grommet |
| Working Pressure: | 0.15 To 0.8MPa(21-114psi) | Temperature: | -20 To +70℃ |
| Max. Frequency: | 5 Cycle/sec | Body Material: | Aluminum Alloy |
| Fluid: | Air (to Be Filtered By 40 μm Filter Element) | Application: | Automation |
| High Light: | 4V210 Pneumatic Solenoid Valve,Single Pneumatic Solenoid Valve,5/2 Way Single Solenoid Valve |
||

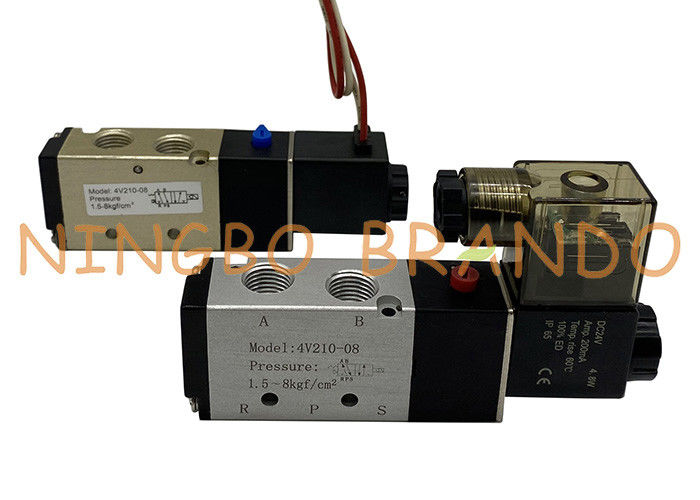

4V210-08 5/2 Way Pneumatic Air Single Electrical Control Solenoid Valve
Product Features:
1. Pilot-oriented mode: optional for internal or external;
2. Structure in sliding column mode: good tightness and sensitive reaction;
3. Three position Solenoid Air Valves have three kinds of central function for your choice;
4. Double control Solenoid Air Valves have memory function;
5. Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life;
6. No need to add oil for lubrication;
7. It is available to form integrated valve group with the base to save installation space;
8. Affiliated manual devices are equipped to facilitate installation and debugging;
9. Several standard voltage grades are optional;
Technical Data:
|
Model
|
4V210-06
4V220-06
|
4V230C-06
4V230E-06
4V230P-06
|
4V210-08
4V220-08
|
4V230C-08
4V230E-08
4V230P-08
|
|
Fluid
|
Air(to be filtered by 40 μ m filter element)
|
|||
|
Acting
|
Internal pilot or external pilot
|
|||
|
Port Size
|
In=Out=Exhaust=1/8''
|
In=Out=1/4'' Exhaust=1/8''
|
||
|
Orifice Size
|
25.00 mm2 (Cv=0.78)
|
18.00 mm2 (Cv=0.67)
|
30.00 mm2 (Cv=0.89)
|
18.00 mm2 (Cv=0.67)
|
|
Valve Type
|
5 port 2 position
|
5 port 3 position
|
5 port 2 position
|
5 port 3 position
|
|
Operating Pressure
|
0.15~0.8MPa (21~114psi)
|
|||
|
Proof Pressure
|
1.5MPa (215psi)
|
|||
|
Temperature ℃
|
-20~70
|
|||
|
Material of Body
|
Aluminum alloy
|
|||
|
Max. frequency
|
5 cycle/sec
|
3 cycle/sec
|
5 cycle/sec
|
3 cycle/sec
|
Dimension Diagram:
4V210(Grommet)
4V210(Terminal)
