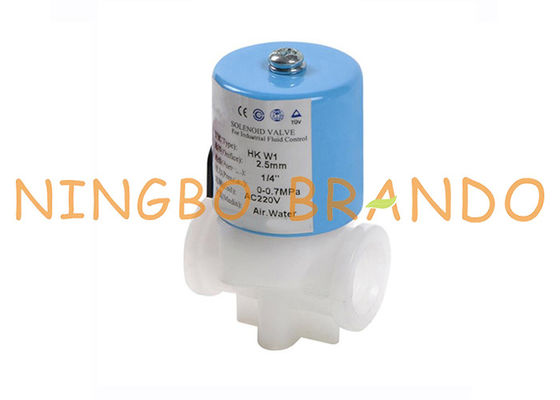

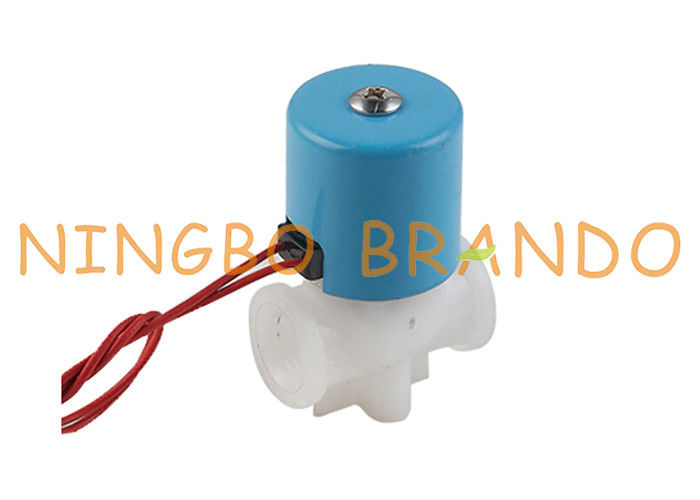

SV NPT 1/4'' Inch Threaded Water Purifier RO Solenoid Valve

SV NPT 1/4'' Inch Threaded Water Purifier RO Solenoid Valve

SV NPT 1/4'' Inch Threaded Water Purifier RO Solenoid Valve
video
SV NPT 1/4'' Inch Threaded Water Purifier RO Solenoid Valve
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: BPV02-T
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Inner boxes, Carton, Pallet
Delivery Time: 4-8 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Application: Reverse Osmosis, Process Water, RO Water System, Water Purifier, Pure Water, Water Dispenser Temperature: -10℃~+80℃
Power: Solenoid Media: Water, Air, Oil
Structure: Plunger Operation: Direct Acting
Seal Material: NBR, FKM, EPDM Voltage: DC12V DC24V AC24V AC120V AC240V
Port Size: 1/4'' Body Material: Nylon, PP, POM
High Light:

1/4'' Inch RO Solenoid Valve

,

Water Purifier RO Solenoid Valve

,

RO System SV

SV NPT 1/4'' Inch Threaded Water Purifier RO Solenoid Valve



BPV02-T Direct Acting Threaded Type is a high quality and widely used reverse osmosis Filter , used worldwide in reverse osmosis systems for domestic , commercial , water fed pole , aquarium and all other RO's due to its strength of filtering , durability and reliability.



Made of high quality material, safe, hygiene and durable, serve you for a long time.Unique buckle design of the interface makes the takeover more firm and not loose.


The high quality coil improves the accuracy of the switch, the electromagnetic is more stable, while the ceramic-like material is resistant to high temperature, water, anti-aging and durable.


1/4 quick-connect interface, completes the connection immediately.The water flow direction of the solenoid valve prevent incorrect installation.



Technical data:

Characteristic 1)Direct acting,0 rated bar pressure.low power
2)compact design to save the space
Medium Air,water,steam,oil,etc.
Temperature

NBR: -10°C to 80 °C

EPDM: -10°C to 120 °C

FKM:-10°C to 150 °C

Pressure 0-1.6Mpa
Port Size 1/4''
Port Thread G, NPT
Orifice 2.5mm
Voltage

DC-12V,24V

AC-24V,120V,110V,220V/50HZ

Voltage Range ±10%
Material

Body-Nylon,PP,POM
Seal-NBR, EPDM,FKM

Amature tube-stainless steel 304

Plunger-stainless steel430F

Stop-stainless steel 430F

Springs-SS304

Shading rings- stainless steel 304





Main Dimension of RO Solenoid Water Valve:

Main Dimension of RO Solenoid Water Valve:



Brando Factory Production of Solenoid Valves:



SV NPT 1/4'' Inch Threaded Water Purifier RO Solenoid Valve 1



More Plastic Reverse Osmosis Solenoid Valve(RO SV):



SV NPT 1/4'' Inch Threaded Water Purifier RO Solenoid Valve 2SV NPT 1/4'' Inch Threaded Water Purifier RO Solenoid Valve 3SV NPT 1/4'' Inch Threaded Water Purifier RO Solenoid Valve 4SV NPT 1/4'' Inch Threaded Water Purifier RO Solenoid Valve 5



Reverse Osmosis systems

A simple reverse osmosis system consists of a high-pressure pump which increases the pressure of the feed water with salts, ions or impurities. This forces the water across the semi permeable RO (Reverse Osmosis) membrane, leaving behind all the dissolved salts. The required pressure is directly proportional to the salt concentration of the inlet water. The higher the concentration, the higher pressure is required to overcome the osmotic pressure.

The RO membrane lets the cleaner water through and this is called permeate water. The salts and other contaminants which are stopped by the membrane come out as a reject stream. This can be drained out or recycled if possible through the RO system to save water.

The RO systems remove up to 99% of dissolved salts (ions), particles, pathogens and bacteria from feed water.
