DIN 43650 Form C Solenoid Valve Coil Electrical Connector DIN43650C 24V

DIN 43650 Form C Solenoid Valve Coil Electrical Connector DIN43650C 24V

An electrical DIN connector is required to allow safe connection of the electrical supply (cable) to the equipment or Solenoid Valve. Most European solenoid valves will be fitted with an IP65 solenoid valve coil that will require a electrical DIN plug or connector. Some US, Asian and even specialised high power, high temperature, cryogenic or agricultural solenoid valves will come with flying lead wires typically 30 cm long which will need to be connected directly to the electrical power supply.

Common types of Electrical DIN connector sizes are as follows:

DIN 43650A Connector:

Dimension	DIN Type	DIN 43650 Form A
	Distance	18mm
	Form	2+1GND, 3+1GND
	Protection Class	IP65
	Working Voltage	AC380V, DC300V
	Fixing Screw	M3x28
	Nomical Current	10A
	Contact Resistance	≤5mΩ
	Max Conductor Section	3x1.5mm²

DIN 43650B Connector:

Dimension	DIN Type	DIN 43650 Form B
	Distance	11mm
	Form	2+1GND, 3+1GND
	Protection Class	IP65
	Working Voltage	AC380V, DC300V
	Fixing Srew	M3x30
	Nomical Current	10A
	Cntact Resistance	≤5mΩ
	Max Conductor Section	3x1.5mm²

DIN 43650C Connector:

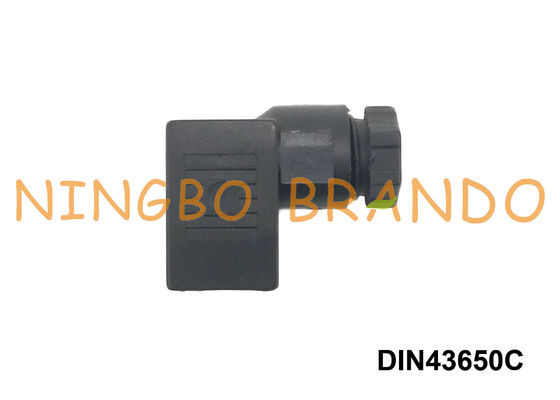

Dimension	DIN Type	DIN 43650 Form C
	Distance	9.4mm
	Form	2+1GND, 3+1GND
	Protection Class	IP65
	Working Voltage	AC380V, DC300V
	Fixing Screw	M3x25
	Nomical Current	10A
	Cntact Resistance	≤5mΩ
	Max Conductor Section	3x1.5mm²

Brando manufactures an extensive and comprehensive range of internal- and external-thread connectors conforming to industry standard EN 175301-803 (formerly DIN 43650). Standard options include LED illuminated devices as well as VDR, diodes to offer protection against overvoltage peaks. Solenoid coil connectors offer protection from dust and water when correctly installed with screw and gasket which are supplied together with the connector.

Brando's field-attachable, external-nut design is mechanically superior to traditional internal-nut DIN valve connectors, achieving greater cable retention and improved sealing to IP67. Standard internal thread DIN valve connectors are IP65 rated and available with different thread style, gaskets and circuitry options.
