| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | BAPO216048034 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Inner Box, Carton, Pallet |
| Delivery Time: | 4-8 days |
| Payment Terms: | L/C, T/T, Western Union,Paypal, MoneyGram |
| Supply Ability: | 300000 sets per month |
| Position And Way: | 2 Way 2 Position | Non-working Status: | Normally Open |
|---|---|---|---|
| Plunger Tube OD: | φ16.0mm | Seat Type: | Thread |
| Voltage: | AC, DC All Available | Plunger Tube Material: | Stainless Steel 304 |
| Application Example: | Water Solenoid Valve | ||
| High Light: | Normally Open Solenoid Valve Armature Assembly,Water Solenoid Valve Armature Assembly,Solenoid Valve Plunger Tube Assembly |
||

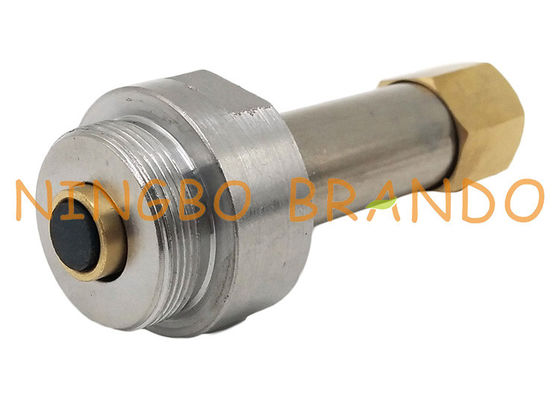

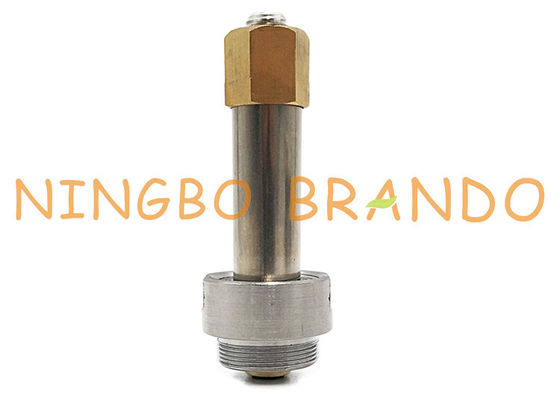

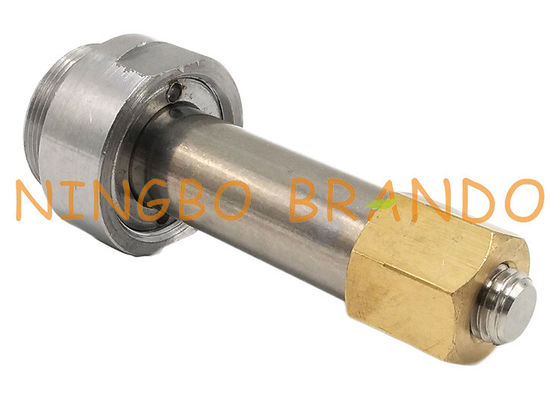

2 Way Normally Open NBR Seal Water Solenoid Valve Armature Assembly
The magnetic (solenoid) valve includes an electromagnet which comprises a coil arrangement and an armature driven by the coil arrangement. A control part is provided on the armature, which corresponds to at least one channel aperture to be controlled in a fluid channel, and which is shifted at the control movement of the armature relative to the at least one channel aperture. The armature is formed as a pivot anchor, whose switching movement is a pivotal movement , at which the control part is shifted orthogonally to the longitudinal axis of the coil arrangement.
Main dimension of Solenoid Valve Armature Assembly:

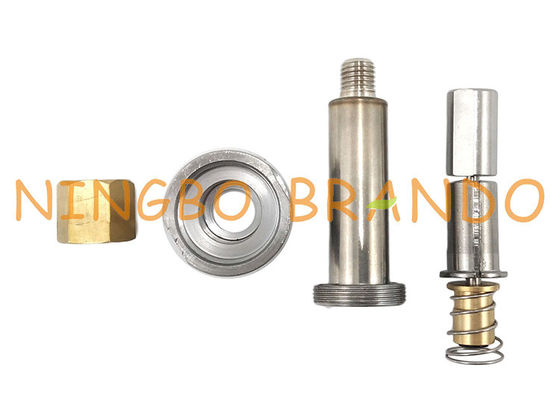

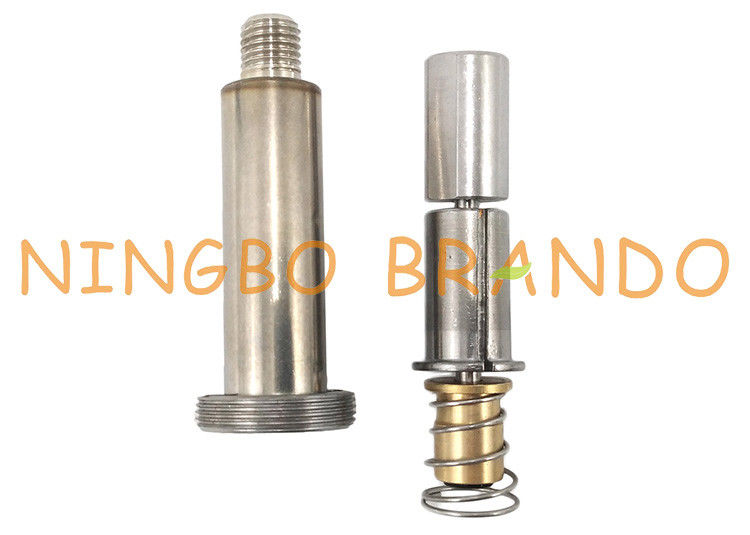

Details of Solenoid Valve Armature Assembly:
2 Way NC Thread Seat
Technical data of Solenoid Valve Armature Assembly:
Brando Factory Production of Solenoid Valve Armature Assembly:
More Solenoid Valve Armature Assembly for you to choose:
*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.
*According to tube material: Brass, Stainless Steel
*According to valve application:
1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.
FAQ:
How can you tell if your solenoid is bad?
If the solenoid valve fails to open or close, is partially open, makes a humming noise or has a burned-out coil, you need to troubleshoot the valve solenoids.
What is a solenoid?
A solenoid is an electric coil that is wrapped around a ferromagnetic substance (such as iron) that acts as an electromagnet when the current is passed through it.
How does a solenoid work?
When the electric current is passed through the coil, an electromagnetic field is created. This electromagnetic field causes the plunger to move up or down. This mechanism is used by solenoid valves to open or close the valve.
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
