| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | BAPC210123448 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Inner Box, Carton, Pallet |
| Delivery Time: | 4-8 days |
| Payment Terms: | L/C, T/T, Western Union,Paypal, MoneyGram |
| Supply Ability: | 300000 sets per month |
| Position And Way: | 2 Way 2 Position | Non-working Status: | Normally Closed |
|---|---|---|---|
| Seat Type: | Plate | Guide Tube Material: | Stainless Steel |
| Guide Tube OD: | φ10.0mm | Installation Height For Coil: | 25.0mm |
| Seal Material: | NBR | Voltage: | AC, DC All Available |
| High Light: | Solenoid Armature Tube,Solenoid Valve Plunger,Solenoid Valve Plunger Tube Assembly |
||

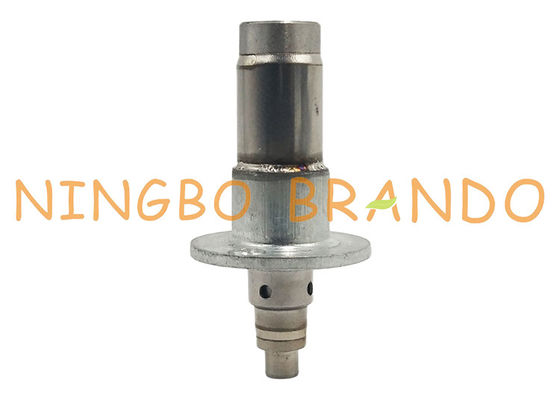

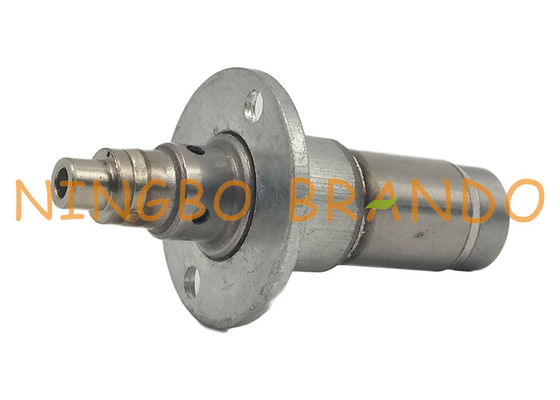

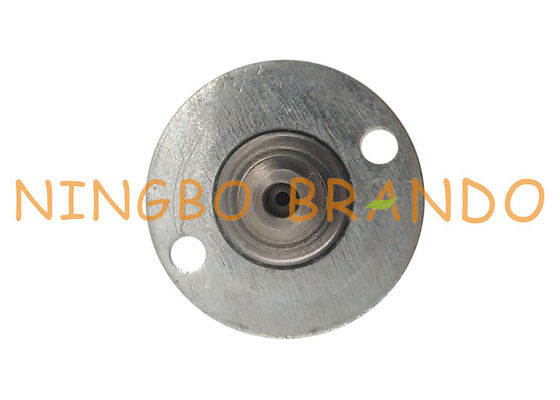

Solenoid Valve Stainless Steel 304 Plunger Tube And Moving Core
Product Features of Solenoid Valve Armature Assembly:
1. Fixed core and movable core (plunger):
Adopting rustproof and corrosion-resistant material with high magnetic conductivity and low remanence to ensure armature assembly durable and smart acting.
2. Guide tube (plunger tube):
Options of brass and stainless steel, grade of H62 or SUS304;
Wall thickness from range of 0.25~2.5mm, others could be customized;
Kinds of welding type to hold various working pressure, such as laser welding, argon-arc welding, silver soldering. Machining from entire solid bar directly is also available.
3. Spring:
Rustproof SUS304 stainless steel, with good performance of restore.
4. Seals:
Options of NBR, HNBR, FKM, EPDM, PTFE, food grade materials, welcome your other requirements.
5 Shading ring:
Cooper and silver material available.
6. Washer and retaining nut provided if has demands.
Technical data of Solenoid Valve Armature Assembly:
Main dimension of Solenoid Valve Armature Assembly:

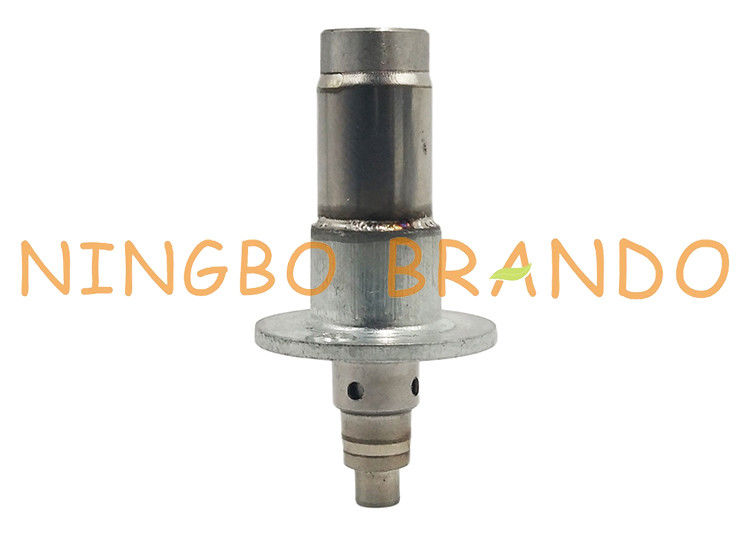

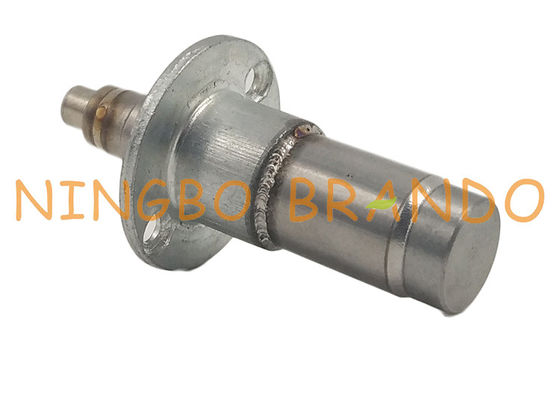

Details of Solenoid Valve Armature Assembly:
Brando Factory Production of Solenoid Valve Armature Assembly:
More Solenoid Valve Armature Assembly for you to choose:
*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.
*According to tube material: Brass, Stainless Steel
*According to valve application:
1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
Contact Person: Echo
Tel: +8613454729544
