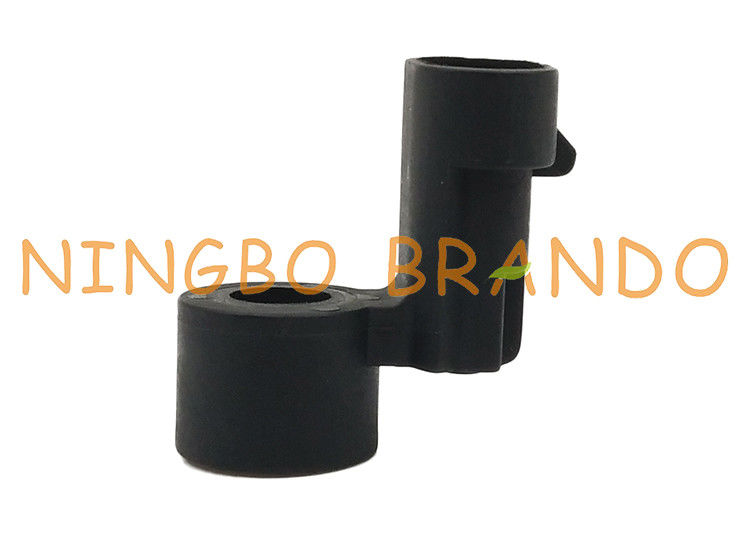

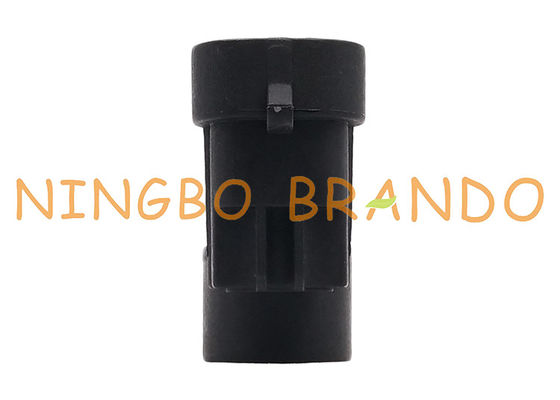

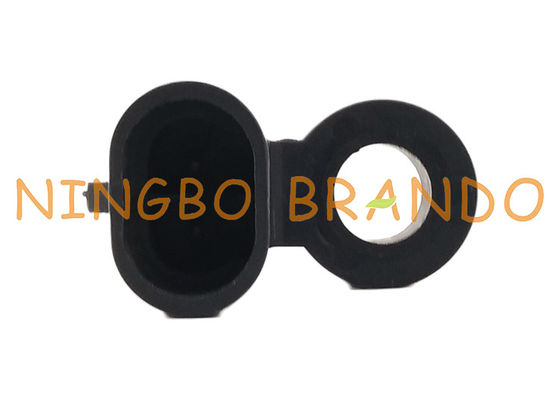

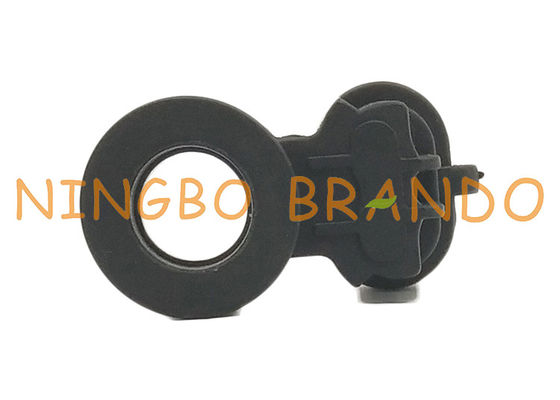

DC6V 58Watt LPG CNG Automobile Part Injector Rail Solenoid Coil With DEUTSCH Connector

 DC6V 58Watt LPG CNG Automobile Part Injector Rail Solenoid Coil With DEUTSCH Connector

solenoid valve coil, magnetic valve coil, solenoid valve importance parts, pilot of solenoid valve

1, Solenoid Coil, Electromagnetic Valve Coil
2, Hole Diameter (aperture) 9.5 mm
3, Height Diameter 15.0mm
3, Normally Used on Solenoid Valve of CNG Application
4, Connection DEUTCH

Detailed Specifications:

Item No.: BB09515006

Normal Voltage: DC6V; Other voltage can be customized

Normal Power: DC58W; Other power can be customized

Insulation Class: H

Connection Type: DEUTCH

Installation Dimension: Ø9.5XH15.0

Application Example: CNG valve

Dimension of BB09515006 Solenoid Valve Coil :

Technical Data:

Solenoid Coil Production Line:

Attention:​
1. This air suspension compressor pump solenoid coil is made of high quality components.

2. Replaces the original air compressor solenoid coil of your car and equal the original quality.
3. Please double confirm the compatibility as well as the OEM number before purchasing.
4. Instruction is not included. Professional installation is recommended.

Steps and methods for properly installing a solenoid valve coil:

1. Check if the solenoid valve and the selected parameters are the same, such as differential pressure, etc. If the error occurs, the solenoid valve coil will be burned out. Voltage fluctuations should be within the normal range and meet the rated voltage.

2. Before connecting the pipeline, flush the pipeline and remove the residual dirt in the pipeline. If there are residual stains, it will affect the normal use of the solenoid valve. To prevent this, a filter should be installed in the pipeline.

3. Install the solenoid valve coil of the solenoid valve vertically on the horizontal and ground pipes. If there is a special situation, it cannot be installed vertically. The appropriate solenoid valve should be ordered in advance, otherwise the solenoid valve will not work properly.

4. When installing, add a safety process and install a manual cutting valve to facilitate maintenance in case of failure.

5. Pay attention to the direction when installing, can not be reversed, installed in the direction indicated on the package, and can be reversed in some special cases such as vacuum.

6. If the water may be damaged by the medium, you must take appropriate protective measures or choose a solenoid valve with a waterproof hammer function.

7. The solenoid valve cannot be energized all the time, otherwise it will reduce its life. Note that normally open, normally closed solenoid valves cannot be used with care.

Product Features:
1. Using high quality wire which has UL approved; 2. Using high quality permeablity magnetic material which contain low carbon;
3. Using high quality housing material like PA66, PBT, PPS, BMC and so on.
4. Insulation class can be B, F, H, N, C;
5. Protection class can be IP65, IP67 & IP69K;
6. We also offer special coils like ex-proof coils, water proof coils and so on.
7. If you have special requirement, pls feel free to contact us.

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing

Welcome to your any question and inquiry!
