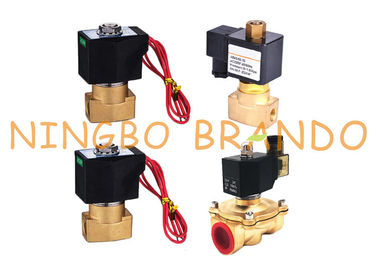

Name: AB31 CKD Type Direct Acting 2-Port Solenoid Valve Single Unit Brass General Purpose Valve
Brand: Brando
SKU: AB31
Rating: 4.7 (116 reviews)

Home Products Brass Solenoid Valve

AB31 CKD Type Direct Acting 2-Port Solenoid Valve Single Unit Brass General Purpose Valve

Product Details:

Place of Origin:	China
Brand Name:	Brando
Certification:	CE
Model Number:	AB31

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Packaging Details:	inner boxes,cartons,pallets
Delivery Time:	7 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100000pcs per month

Contact Now

Detailed Product Description

Power:	Solenoid	Media:	Air Water Oil Gas
Port Size:	1/8'' To 2''	Function:	2/2 Way, Normally Closed / Normally Open
Operation:	Direct Acting	Body Material:	Brass
Seal Material:	NBR, EPDM, FKM, Si	Medium Temperature:	-10 To +60℃
Electrical Connector:	DIN 43650 Connector, Wire Leads	Voltages:	12V DC, 24V DC, 24V DC, 110V AC, 220V AC
High Light:	CKD Type Solenoid Valve , Direct Acting Solenoid Valve

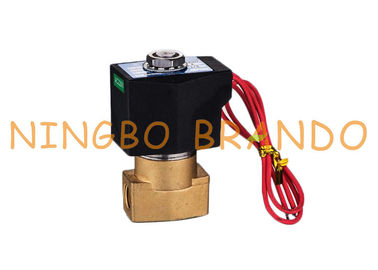

AB31 CKD Type Direct Acting 2-Port Solenoid Valve Single Unit Brass General Purpose Valve

Power:Solenoid
Media:Air, Water, Oil, Gas
Port Size:1/8'' to 2''
Function:2/2 Way, Normally Closed / Normally Open
Operation:Direct Acting
Body Material:Brass
Seal Material:NBR, EPDM, FKM, Si
Medium Temperature:-10 to +60℃
Electrical Connector:DIN 43650 Connector, Wire Leads
Voltages:12V DC, 24V DC, 24V DC, 110V AC, 220V AC
Orifice Size (mm):1.5, 2, 3, 3.5, 4, 5, 7, 10

Dimension of CKD Type AB31 Series Solenoid Valve:

Dimension of CKD Type AB31 Series Solenoid Valve:

Technical Data:

Model	Action	Port Size	Orifice Size	Max. Working Pressure Differential (MPa)	Fluids Temperature
AB31-01-1	2/2 Way, Normally Closed	1/8''	1.5	1 to 2.5	-10 to +60℃ (184℃ for steam)
AB31-01-2			2.0	1 to 1.5
AB31-01-3			3.0	0.5 to 1
AB31-01-4			3.5	0.4 to 0.6
AB31-01-5			4.0	0.25 to 0.4
AB31-01-6			5.0	0.15 to 0.2
AB41-02-1		1/4''	1.5	1 to 5
AB41-02-2			2.0	1 to 3
AB41-02-3			3.0	0.9 to 1.5
AB41-02-4			3.5	0.6 to 1.2
AB41-02-5			4.0	0.5 to 1
AB41-02-6			5.0	0.25 to 0.6
AB41-02-7			7.0	0.1 to 0.25
AB41-03-7		3/8''	7.0	0.1 to 0.25
AB41-03-8		3/8''	10.0	0.05 to 0.1
AB41-04-8		1/2''	10.0	0.05 to 0.1

Brando Factory Production of Brass Solenoid Valves:

AB31 CKD Type Direct Acting 2-Port Solenoid Valve Single Unit Brass General Purpose Valve 1

Product Features:
1. AB31 series is direct, multiplex, connected diaphragm, conductive and normally closed (NC) 2/2 way solenoid valve;

2. Able to be operated directly under low pressure;

3. Availability of fluid type:water, air, light oil;

4. Diaphragm accept for customization NBR, FKM, Silicone and EPDM.

5. The AB31 Series is an NC 2-port solenoid valve. The body and sealant materials are combined according to the working fluid, and the orifice and pressure are selected according to the relation of the required flow rate and pressure. The coil specifications are determined according to the fluid temperature and ambient
conditions, allowing the optimum valve to be selected.
6. The dimensions are the same for port sizes of G and NPT threads.
