C113444 1" ASCO Type SCG353 Series Solenoid Pulse Valve Diaphragm Repair Kit For Dust Collector System

C113444 1" ASCO Type SCG353 Series Solenoid Pulse Valve Diaphragm Repair Kit For Dust Collector System

  • C113444 1" ASCO Type SCG353 Series Solenoid Pulse Valve Diaphragm Repair Kit For Dust Collector System
  • C113444 1" ASCO Type SCG353 Series Solenoid Pulse Valve Diaphragm Repair Kit For Dust Collector System
  • C113444 1" ASCO Type SCG353 Series Solenoid Pulse Valve Diaphragm Repair Kit For Dust Collector System
C113444 1" ASCO Type SCG353 Series Solenoid Pulse Valve Diaphragm Repair Kit For Dust Collector System
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: A044
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Packaging Details: inner boxes,cartons,pallets
Delivery Time: 7 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs per month
Contact Now
Detailed Product Description
Mounting Hole Size: 6.5mm Diaphragm Material: TPE
Diaphragm OD: 76.5mm Center Distance: 78mm
Bleed Hole: 1 Spring: With
Suitable Valves: SCG353A043, SCG353A044, G353A041, G353A042, SCG353-052, SCG353-053 Packaging: Individual Plastic Bag Sealed
High Light:

ASCO Diaphragm

,

ASCO Pulse Valve Diaphragm

,

ASCO Membrane

C113444 1'' ASCO Type SCG353 Series Pulse Valve Diaphragm Repair Kit For Dust Collector System

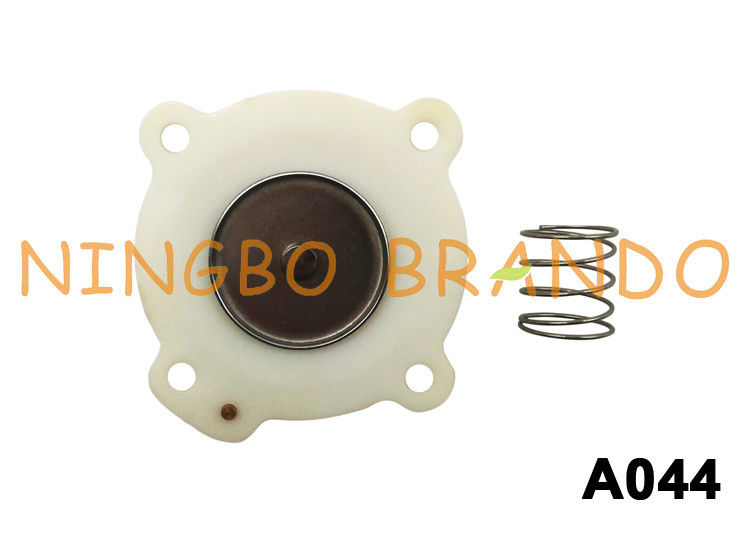

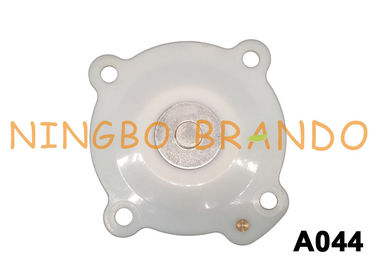

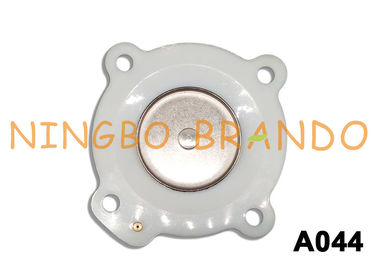

This white TPE diaphragm is used in 1 Inch ASCO type dust collector pulse jet valve (Also called diaphragm valve) SCG353A044. As a Replacement diaphragm repair kit, It has strong oil resistance, acid resistance, high temperature resistance and alkali resistance. It can easily ensure complete synchronization with other control components and control the injection of pulse compressed air.

The electromagnetic pulse valve diaphragm is the diaphragm in the electromagnetic pulse valve body, which is the key to its normal operation. The electromagnetic pulse valve is the blowing air circuit switch of the pulse bag type dust collector cleaning system.
Since the pulse valve diaphragm is a flexible mechanism that requires frequent opening and closing operations to control air circulation, and requires good flexibility, and requires as high a sealing as possible, the material of the pulse valve diaphragm is directly It is related to the service life and effect of the pulse valve diaphragm.
In other words, the quality of the pulse valve diaphragm directly affects the working stability of the pulse bag type dust collector cleaning system, and is also directly related to the use cost of the dust removal device. The pulse valve diaphragm has a promise of service life or number of movements. The use of a high-quality pulse valve diaphragm can directly reduce the cost of dust removal equipment.



Main dimension of K200262 K238866 ASCO Type Diaphragm Repair Kit:
C113443 C113444 K200262 K238866 ASCO Type Diaphragm Valve Repair Kit For 1" SCG353A044 3/4" SCG353A043



Available Models of ASCO Solenoid Valve Spare Part Kits:

Ordering Code
Fitted Valve Code
Valve Port Size
Material
C113443
G353A041, G353A042
3/4'', 1''
TPE/NBR
C113444
SCG353A043, SCG353A044,
SCG353-052, SCG353-053
3/4'', 1''
C113825
G353A045
1-1/2''
NBR
C113826
G353A046
1-1/2''
C113827
SCG353A047, SCG353A065
1-1/2''
C113685
SCG353A050, SCG353A051
2'', 2-1/2''
C113686
C113928
SCEX353.060
3''
C123432
SCG353D060, G353.060
C123433
K096875 (K238864)
8353C033
3/4''
K200262 (K238866)
G353A041, G353A042,
SCG353A043, SCG353A044,
SCG353-052, SCG353-053
1''
K276886 (K238870)
G353A045, G353A046,
SCG353A047, SCG353A065
1-1/2''
K276886B
K276887
VITON
Tips: EPDM, VITON All Available.

Tips: The valves mentioned, related solenoid coils and armature assembly are all supplied.



Diaphragm Features:
1. Diaphragm (Rubber or Fabric Reinforcement in Rubber Diaphragms) is a precision functional part used check pressure or change fluid pressure into drive power.
2. Fabric-reinforced in rubber diaphragms utilize a layer of an engineered fabric material as part of the diaphragm comstruction. This layer of fabric give tremendous design flexibity.
3. Fabric is made of polyester, nylon and silk and commonly used for most applications, such like exposed to high-temperature, or require extremely high-strength.
4. Facbric-reinforced diaphragms advantages:
*No leakage
*No Lubrication
* No Breakaway Force
* No Friction
* Functionality Over Wide Pressure Ranges
* High Strength
* Low Cost
* Simple Design
* Versatility
5. EPDM, FKM all available.
